PHR 2.5" Hot Side Intercooler Pipe for MKIV Supra, PHR Long Runner - Equal Length, QR Series, S1 and V1 Manifolds

PHR 01011512.3ROW.GB
https://www.powerhouseracing.com/web/image/product.template/18392/image_1920?unique=fc478ff
(0 review)

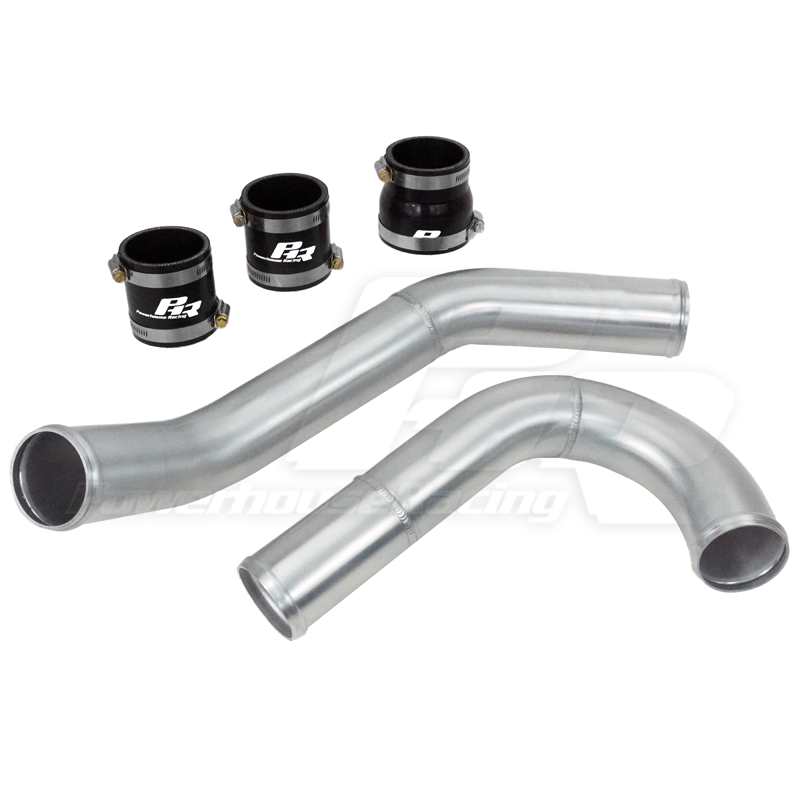

PHR 2.5" Hot Side Intercooler Pipe for S23/S45/V45 Turbo Kits

279.00 279.0 USD 279.00

Buy with on orders over $50. See if you qualify

279.00

  • Make
  • Model
  • Chassis Code
  • Generation
  • Trim
  • Engine
  • Engine
  • Engine
  • Engine
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Turbo Manifold Fitment
  • Material
  • Outer Diameter
  • Bead Roll
  • Finish
  • Intercooler style

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Fitment

Details are important

This intercooler piping is designed to fit out tubular style manifolds:
S23 and S23QR,
S45 and S45QR,
V23QR,
V45 and V45QR.

It works with both 2JZ-GTE and 2JZ-GE versions of the above manifolds.

The 2.5" piping works best with S-Cover (2.5" compressor outlet) turbos but can also work with H-Cover (3.0" compressor outlet) with an appropriate reducing coupler. But when considering H-cover turbos, it would make more sense to go with our 3.0" hot side intercooler piping.

Also take a look at the video from Precision Turbo below describing the difference in compressor covers.


Depending on what turbo you go with, we recommend different intercooler piping:



S-Cover

If you are running an S-Cover turbo (2.5" Outlet), you are in the right spot. This is the intercooler piping we recommend.

Sportsman Cover

If you have a Sportsman Cover Turbo (V-band Outlet), we make 3.0" intercooler piping that fits that specific v-band outlet on the compressor cover. Here is a link to that piping.

H-Cover

When considering H-cover turbos (3.0" Outlet), it would make more sense to go with our 3.0" hot side intercooler piping, found in this link.

More details

Also take a look at the video from Precision Turbo below describing the difference in compressor covers.

Features and Solutions

Focusing on what's important

Single Turbo Conversion

Our Hot Side (Drop-Down) Intercooler pipes are made specifically to fit the needs of the do-it-yourself enthusiast switching to single turbo setup. This kit is customizable to fit a variety of intercooler and manifold combinations.

Construction

Made of top-quality lightweight aluminum CNC mandrel bends. Mandrel bends allow for optimal flow. The end of each section is bead rolled to keep couplers from slipping off.

Under the frame rail

The drop-down design of these pipes route underneath the frame rail, and around to the intercooler. This will require removal or trimming of the inner fender well plastics panels and bracket. These plastic panels and brackets block debris from the tires from entering the engine bay, and also hold up the lower plastic panels.


We've found that removal doesn't make much of a difference for debris or dirt entering, but if you are in an exceptionally dusty or dirty area (like living on a dirt road), we'd recommend trimming the panels to fit around the piping rather than removing them. If you do choose to remove them, you will need to add some zip ties or other holding method to the lower panels as well to keep them secure.



Worm Gear Clamps

When considering worm gear clamps vs T-bolt clamps for the solution to clamping the couplers to the aluminum intercooler tubing, we've found that worm gear clamps are the best for this application. T-bolt clamps can create too much force, and end up collapsing the tubing, making for a looser connection over time.


They also are not optimal for the space provided behind the bead roll due to the extra wide band, and often clamp over the bead roll instead of behind it on the tubing. This can create poor clamping.


In our experience, worm gear clamps offer the superior clamping solution in this application, and we use only the highest quality stainless worm gear clamps available.

Boost Braces

a boost braceFor high boost applications when you might even more holding capability, boost braces can be added across the coupler to create a mechanical link, that virtually ensures the pipes cannot separate the coupler cannot pop off.


If you want to add boost braces, you will need to have the bolt bosses welded to the tubing, turbo, and/or intercooler. PHR can provide this service, but you will need to contact us to do so.


You will need one boost kit for each connection you want to make. 3 Kits would cover each connection on this kit.


Learn More

Precision Turbo Talks - Compressor Covers

Grant discusses PTE Compressor Covers

Specifications

Vehicle Fitment
Make Toyota
Model Supra
Chassis Code A80
Generation MKIV (Mark 4)
Trim Turbo
Fitment
Engine 2JZ-GTE, Non VVT-i, 2JZ-GTE, VVT-i, 2JZ-GE, Non VVT-i, 2JZ-GE, VVT-i
Turbo Manifold Fitment PHR Long Runner, Equal Length Manifolds, PHR QR Series Manifolds, PHR S1, PHR V1, PHR S23, PHR S23QR, PHR S45, PHR S45QR, PHR V23, PHR V23QR, PHR V45, PHR V45QR
Product Specs
Material Aluminum
Outer Diameter 2.5 inches (63.5 mm)
Bead Roll Yes
Variants
Finish Raw or Gloss black powder coat or Matte black powder coat or Wrinkle black powder coat or Polished
Intercooler style Straight entry or Greddy 3-Row
