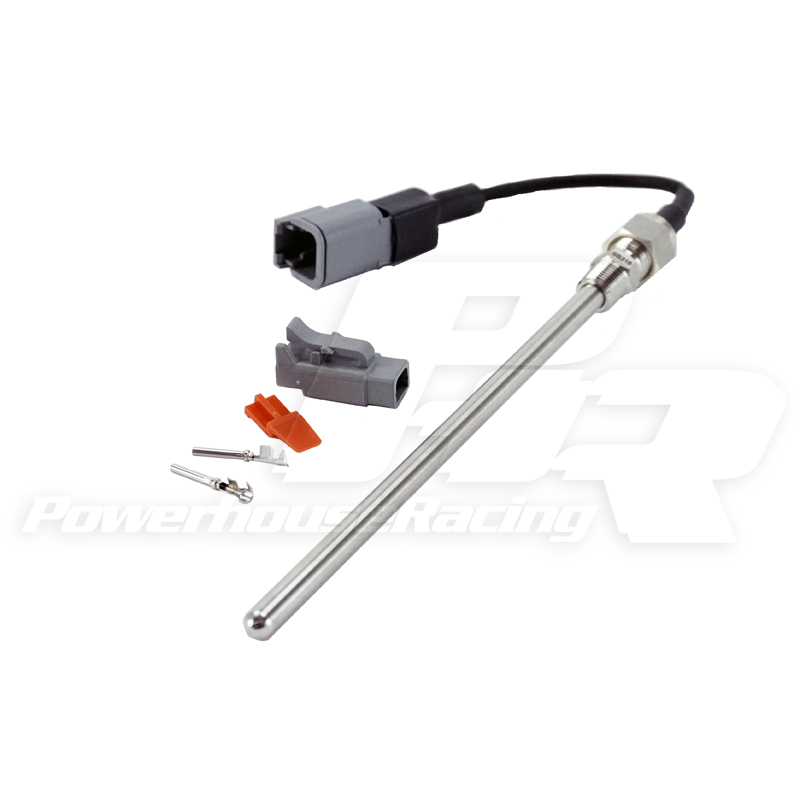

The PHR Oil Temperature Sensor is a thermistor type sensor. It is 6 inches long to be able to protude all the way into the oil from above the oil level sensor location using either our Crank Case/Oil Temperature Adapter or our ORB/Oil Temp/Crank Case Pressure Combination Adapter. It comes with DTM Connector and terminals as well as a stainless steel compression fitting.
PHR OIL TEMPERATURE SENSOR REISTANCE CHART | ||
Temperature F | Temperature C | Sensor Resistance |
-67 | -55 | 963849 |
-58 | -50 | 670166 |
-49 | -45 | 471985 |
-40 | -40 | 336479 |
-31 | -35 | 242681 |
-22 | -30 | 53092 |
-13 | -25 | 176974 |
-4 | -20 | 130421 |
5 | -15 | 97081 |
14 | -10 | 72957 |
23 | -5 | 55329 |
32 | 0 | 32650 |
41 | 5 | 25392 |
50 | 10 | 19901 |
59 | 15 | 15712 |
68 | 20 | 12493 |
77 | 25 | 10000 |
86 | 30 | 8057 |
95 | 35 | 6531 |
104 | 40 | 5326 |
113 | 45 | 4368 |
122 | 50 | 3602 |
131 | 55 | 2986 |
140 | 60 | 2488 |
149 | 65 | 2083 |
158 | 70 | 1752 |
167 | 75 | 1480 |
176 | 80 | 1255 |
185 | 85 | 1070 |
194 | 90 | 915.5 |
203 | 95 | 786.6 |
212 | 100 | 678.6 |
221 | 105 | 587.6 |
230 | 110 | 510.6 |
239 | 115 | 445.3 |
248 | 120 | 389.6 |
257 | 125 | 341.9 |
266 | 130 | 301 |
275 | 135 | 265.8 |
284 | 140 | 235.3 |
293 | 145 | 208.9 |
302 | 150 | 186.1 |
