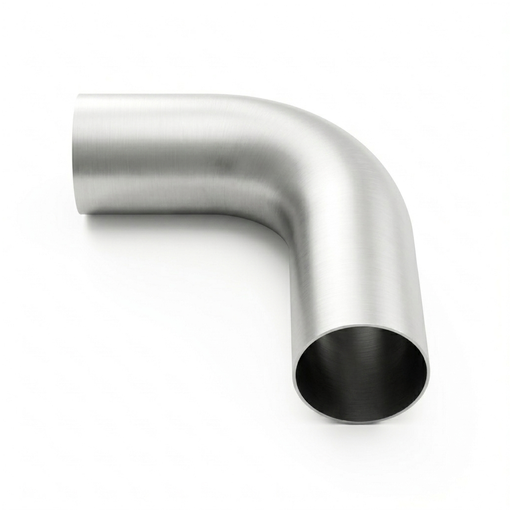

Material
Aluminum
Outer Diameter
4.0 in (102 mm)
Bend Angle
90 degrees
Thickness
.062 in (1.6 mm) (16 gauge)
Center Line Radius
6.0 in (152.4 mm)
CLR to Diameter Ratio
1.5D
Leg Length
8.0 in (203.2 mm)
Bead Roll
No
|

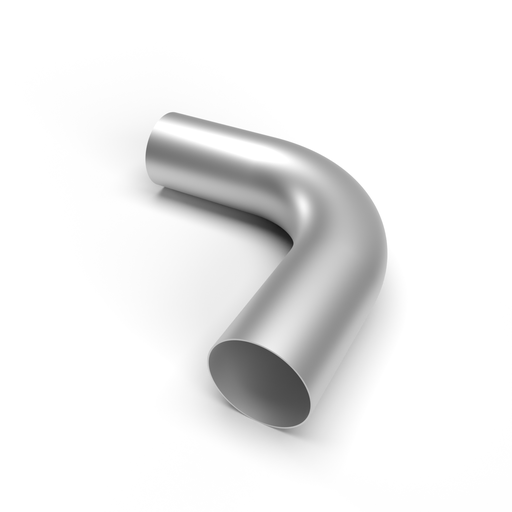

Material
Aluminum
Outer Diameter
3.5 in (89 mm)
Thickness
.08 in (2.0 mm) (14 gauge)
Bend Angle
90 degrees
Center Line Radius
5.0 in (127.0 mm)
Leg Length
6.0 in (152 mm)
Bead Roll
No
|
|
|
|
|
|
|
|
Material
Aluminum
Outer Diameter
2.5 in (63.5 mm)
Bend Angle
90 degrees
Thickness
.08 in (2.0 mm) (14 gauge)
Center Line Radius
4.0 in (101.6 mm)
CLR to Diameter Ratio
1.6D
Leg Length
6.0 in (152 mm)
Bead Roll
No
|
|
|
|
|
Material
Aluminum
Outer Diameter
3.5 in (89 mm)
Bend Angle
90 degrees
Thickness
.08 in (2.0 mm) (14 gauge)
Center Line Radius
3.5 in (88.9 mm)
CLR to Diameter Ratio
1D
Leg Length
6.0 in (152 mm)
Bead Roll
No
|
|
|
|
|
|
|
|
Material
Stainless steel,
304 Stainless Steel
Bend Angle
45 degrees
Leg Length
6.0 in (152 mm)
Center Line Radius
4.5 in (114.3 mm)
Outer Diameter
3.0 in (76 mm)
Bead Roll
No
|
|
|

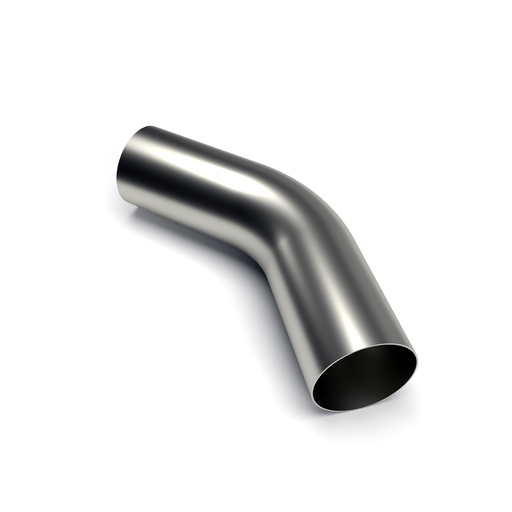

Material
Stainless steel,
304 Stainless Steel
Outer Diameter
4.0 in (102 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle
45 degrees
Center Line Radius
6.0 in (152.4 mm)
Leg Length
6.0 in (152 mm)
Bead Roll
No
|
|
|
|
Material
Stainless steel,
304 Stainless Steel
Outer Diameter
3.0 in (76 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle
180 degrees
Center Line Radius
4.5 in (114.3 mm)
Leg Length
6.0 in (152 mm)
Bead Roll
No
|
Material
Stainless steel,
304 Stainless Steel
Outer Diameter
4.0 in (102 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle
90 degrees
Center Line Radius
6.0 in (152.4 mm)
Leg Length
6.0 in (152 mm)
Bead Roll
No
|
|
|
|
Material
Stainless steel,
304 Stainless Steel
Outer Diameter
1.875 in (48 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle
45 degrees
Center Line Radius
2.0 in (50.8 mm)
Bead Roll
No
|
|

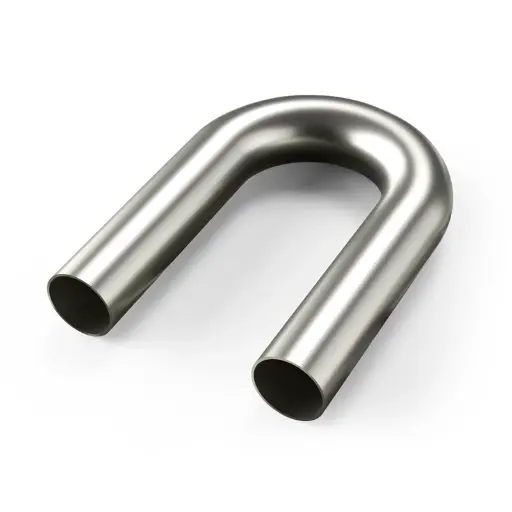

Material
Stainless steel,
304 Stainless Steel
Outer Diameter
1.75 in (44 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle
180 degrees
Center Line Radius
2.625 in (66.7 mm)
Leg Length
6.0 in (152 mm)
Bead Roll
No
|
|
Material
Stainless steel,
304 Stainless Steel
Outer Diameter
2.25 in (57 mm)
Bend Angle
90 degrees
Thickness
.062 in (1.6 mm) (16 gauge)
Center Line Radius
3.375 in (85.7 mm)
CLR to Diameter Ratio
1.5D
Leg Length
2.0 in (51 mm)
Bead Roll
No
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
