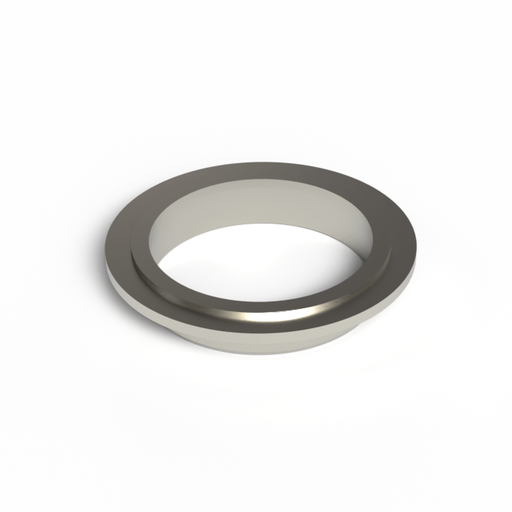

Turbine Fitment
Precision VB4 ("T4" V-band) inlet (S and H Cover)
Material
Stainless steel
Tubing Size
2.75 in (70 mm)
Pipe Size
2.5 Schedule 10
V-band Flange Inner Diameter
2.61 in (66 mm)
V-band Flange Outer Diameter
3.75 in (95 mm)
V-band Flange Alignment Step Diameter
3.02 in (76.8 mm)
|
Material
Stainless steel
Turbine Fitment
Precision VB5 Sportsman V-band inlet/outlet
V-band Flange Outer Diameter
3.75 in (95 mm)
V-band Flange Inner Diameter
2.61 in (66 mm)
V-band Flange Alignment Step Diameter
2.87 in (73 mm)
Tubing Size
2.75 in (70 mm)
|
|
|
|
Material
Titanium
Tubing Size
4.0 in (102 mm)
V-band Flange Inner Diameter
3.31 in (84 mm)
V-band Flange Outer Diameter
4.25 in (108 mm)
V-band Flange Alignment Step Diameter
3.70 in (94 mm)
Turbine Fitment
Precision VB4 ("T4" V-band) inlet (S and H Cover)
|
|
Material
Titanium
Turbine Fitment
Precision VB4 ("T4" V-band) inlet (S and H Cover)
V-band Flange Outer Diameter
4.25 in (108 mm)
V-band Flange Inner Diameter
3.31 in (84 mm)
V-band Flange Alignment Step Diameter
3.70 in (94 mm)
Tubing Size
3.0 in (76 mm)
|
Material
Titanium
V-band Flange Outer Diameter
3.63 in (92 mm)
V-band Flange Inner Diameter
3.0 in (76 mm)
V-band Flange Alignment Step Diameter
No Step
Outer Diameter
3.0 inches (76 mm)

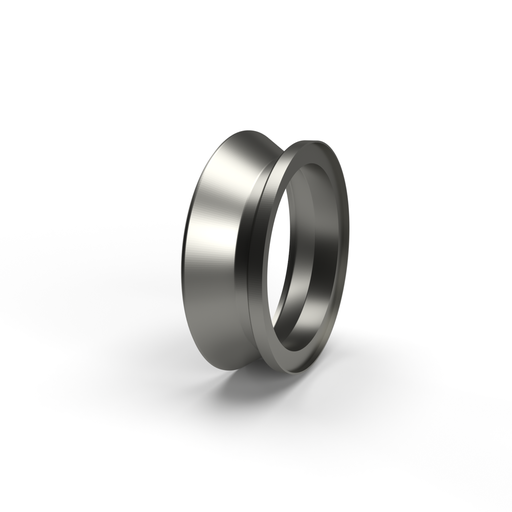

Turbine Fitment
Precision T4 4-Bolt Inlet, V-band Outlet (S and H Cover)
|
|
|
Material
Titanium
V-band Flange Outer Diameter
3.63 in (92 mm)
V-band Flange Inner Diameter
3.0 in (76 mm)
V-band Flange Alignment Step Diameter
No Step
Tubing Size
4.0 in (102 mm)
Turbine Fitment
Precision T4 4-Bolt Inlet, V-band Outlet (S and H Cover)
|
Material
Stainless steel
Turbine Fitment
Precision VB4 ("T4" V-band) inlet (S and H Cover)
V-band Flange Outer Diameter
4.25 in (108 mm)
V-band Flange Inner Diameter
3.31 in (84 mm)
V-band Flange Alignment Step Diameter
3.70 in (94 mm)
Tubing Size
3.0 in (76 mm)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
