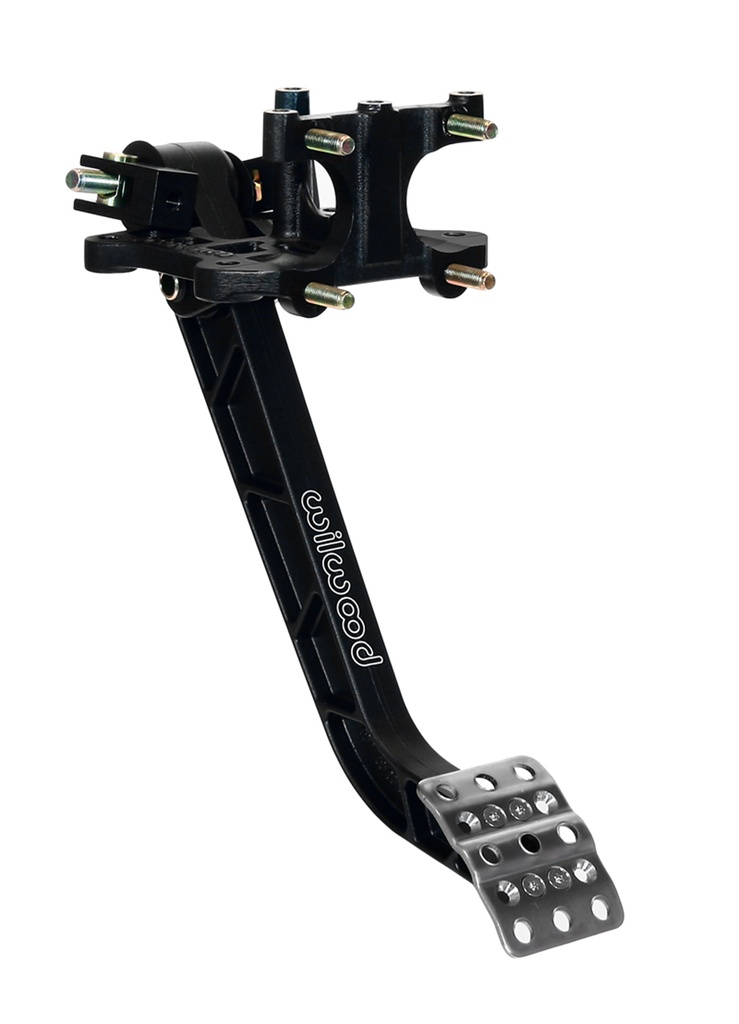

Wilwood Pedal Assembly, Brake, 6.25 to 1 Ratio, 11.710 in Long, Reverse Swing Mount, Aluminum, Black Paint, Kit

Reverse Position Master Cylinders

This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall.

Construction

It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm.

Compatibility

This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size

Adjustability

• The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary.
• The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness.
• A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel.
• The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments.
