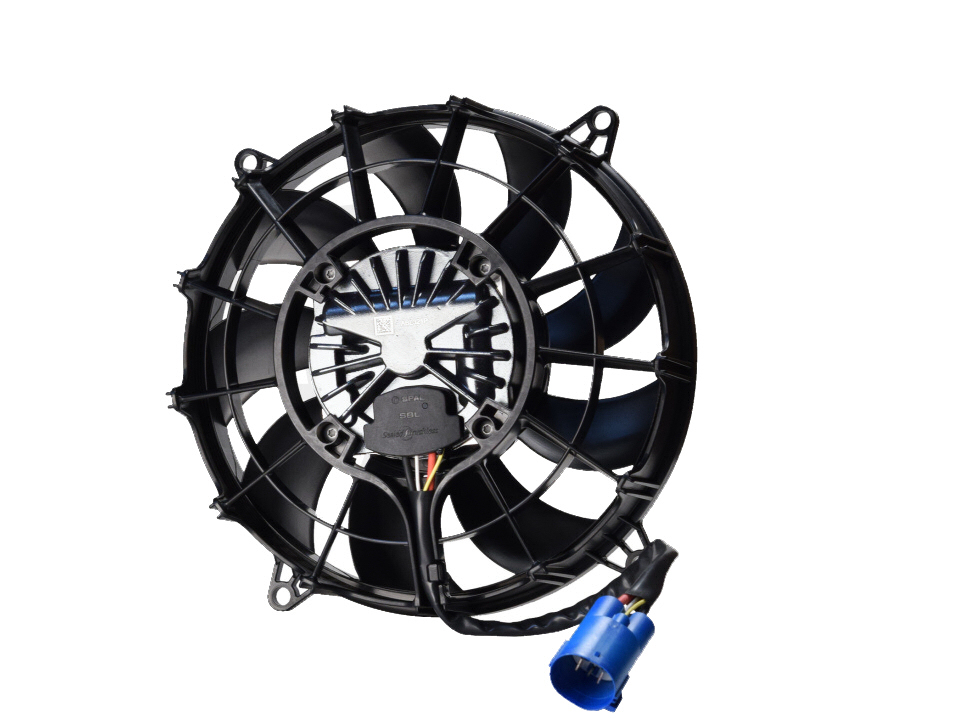

SPAL 15.2” Flush Mount Sealed Brushless Fan
VA207-ABL523P/R/A/N-65A
Why Brushless?
SPAL Brushless Fans
With 40 years of experience designing, manufacturing, and marketing electric fans, its a no brainer why we chose them for our products. SPAL has been designing and manufacturing brushless fans since 2010 making them the leader in design and functionality.
PWM Control
Utilizing PWM controls you are able to control the speed at which these fans come on. Unlike older electric fans its not just on and off, PWM control will allow to have the fans turn on at the minimal fan speed with the ability to be ramped up as coolant temps increase. Whether you are having this controlled by your aftermarket ECU or using the SPAL PWM controller you have absolute control of your fan settings.
Power Consumption
Due to the brushless design of the motor, these fans are able to run more efficiently with lower amp draws than standard brushed variants. This particular fan is rated at 500 watts with a max draw of 43 amps.
Airflow
Utilizing PWM controls the fan speed is adjustable from 600 rpm to a max of 2350 rpm. With this fan at 100% power its able to move a whopping 2478 CFM of airflow.
Durability
With zero friction inside the motor brushless fans have a longer life span, operate with less noise, have a high resistance to vibration, and mechanical stress levels.
Specifications
| Total Flow Rate | 4200 m³/h (2478 CFM) |
| Current Draw | 43A |
