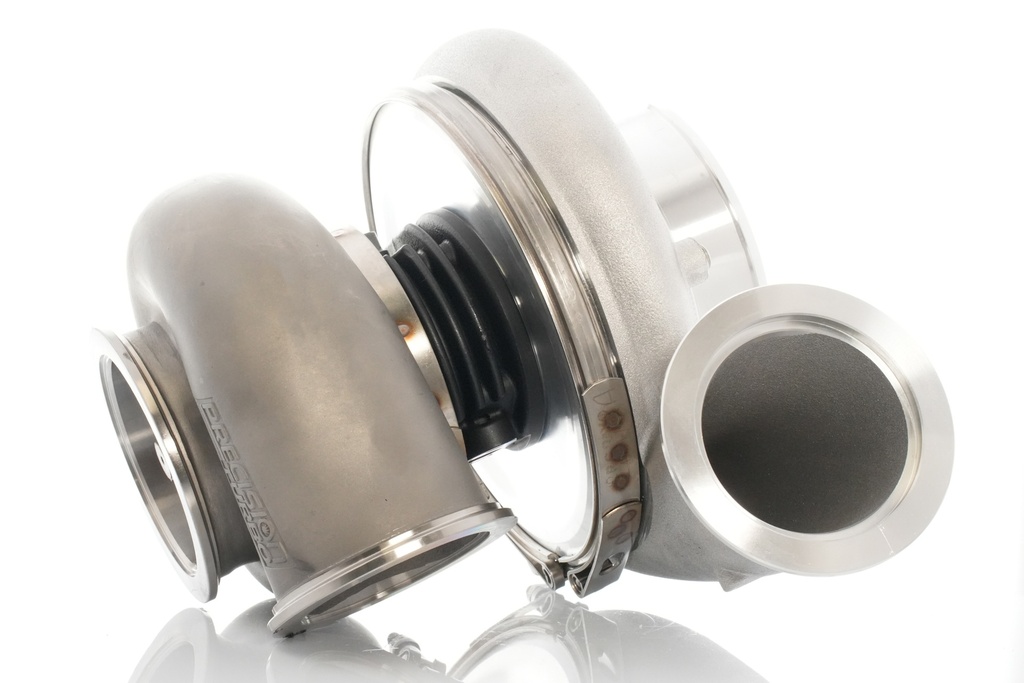

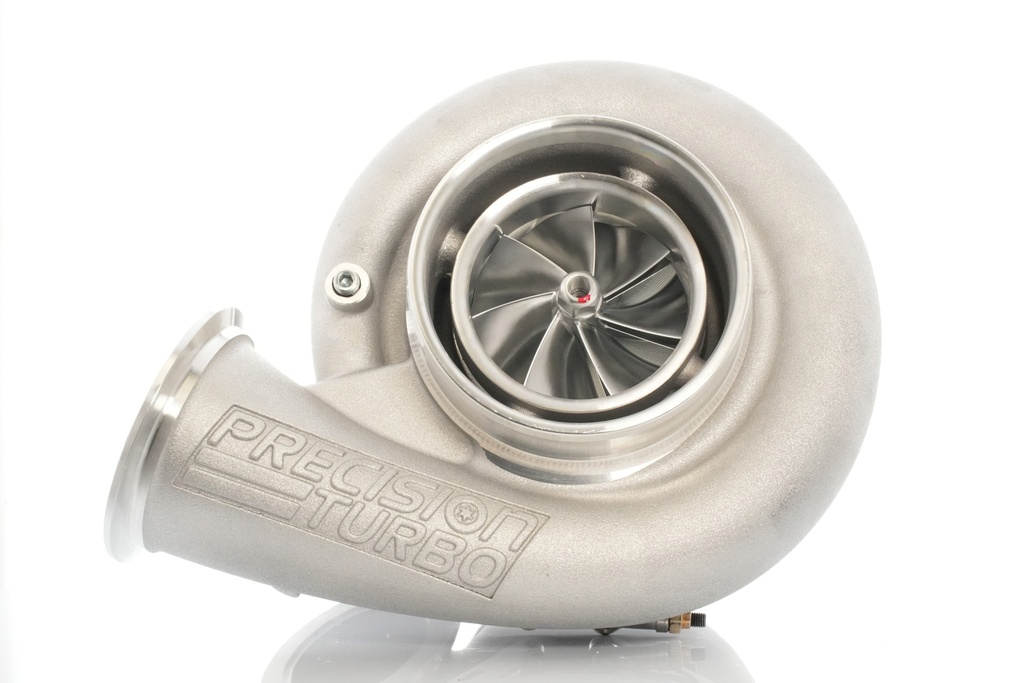

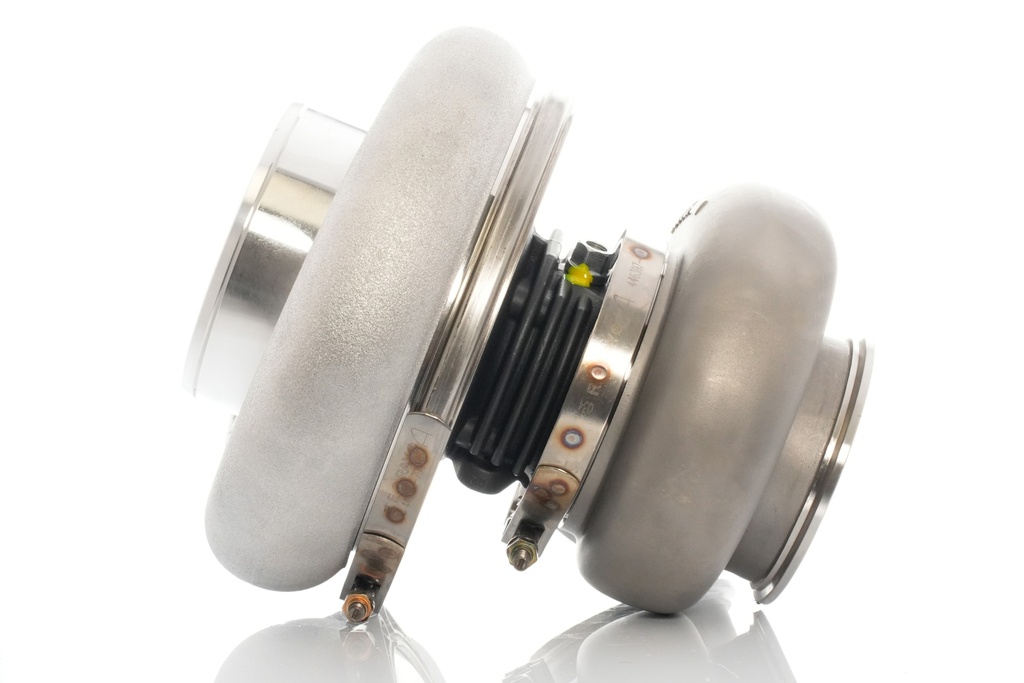

With
the success of the GEN 2 8685, it was about time to implement all the
success of our Next GEN technology into one of our favorite
turbochargers in the lineup. Officially introducing our 1800hp capable
8685 Next GEN.
The
8685 Next Gen brings a new 7x7 CEA (Competition Engineered
Aerodynamics) technology compressor wheel machined from a 2618-aluminum
closed die forging for strength and optimized airflow and an all-new
compressor cover design with flow enhancements and advanced machining
techniques, providing 15% more airflow and greater efficiency at higher
pressure ratios.
HP Rating: 1800hp
Proven to provide a 15% improvement over previous gen
Features:
Most powerful 86mm turbocharger in the market.

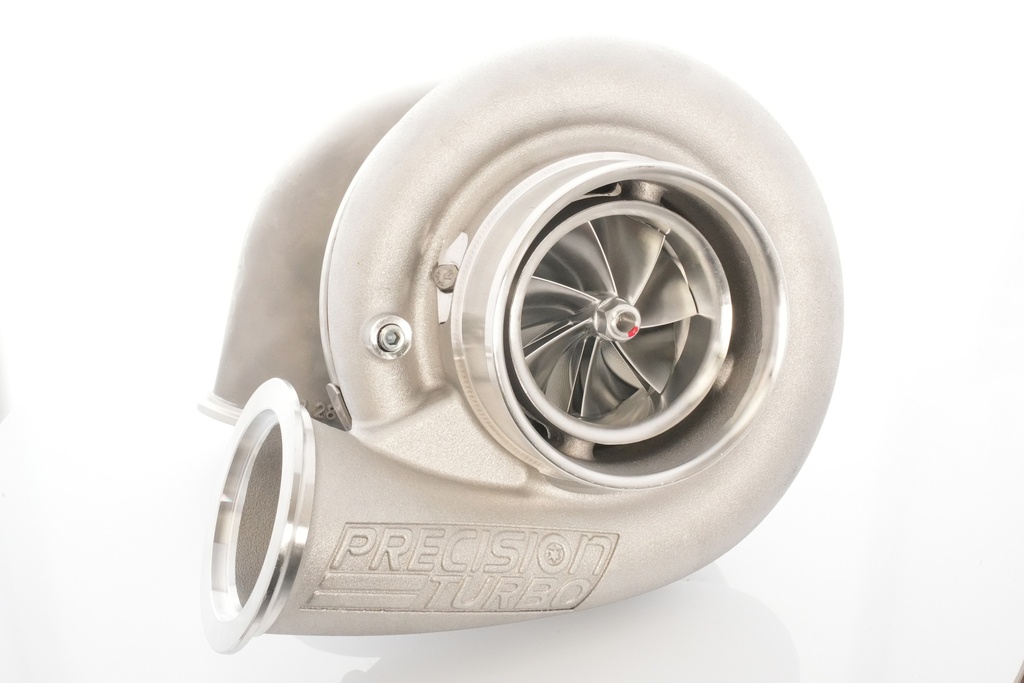

Brand New Next Gen 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel machined from a 2618-aluminum closed die forging for strength and optimized airflow.
All new compressor cover design with flow enhancements and advanced machining techniques providing 15% more airflow and greater efficiency at higher pressure ratios.

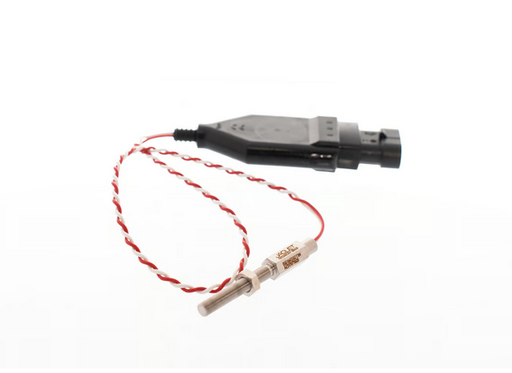

Compressor Cover Includes Machined Speed Sensor port (sensor not included).

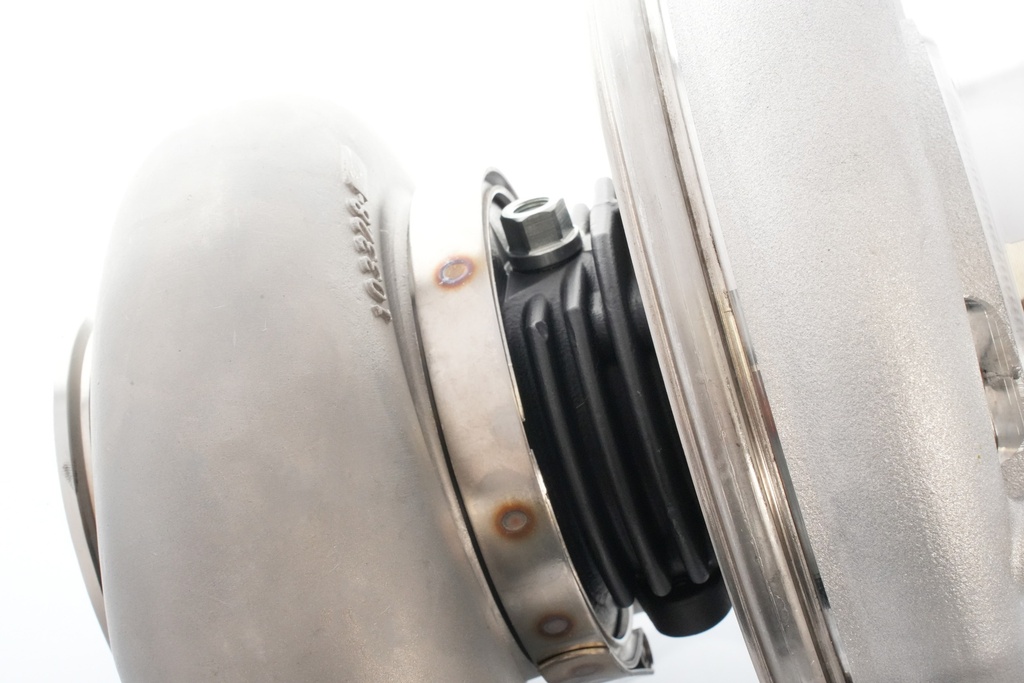

Air/oil-cooled opposed angular contact ceramic full complement ball bearing center section (CHRA) for quick turbo response, durability, and high thrust capacity.

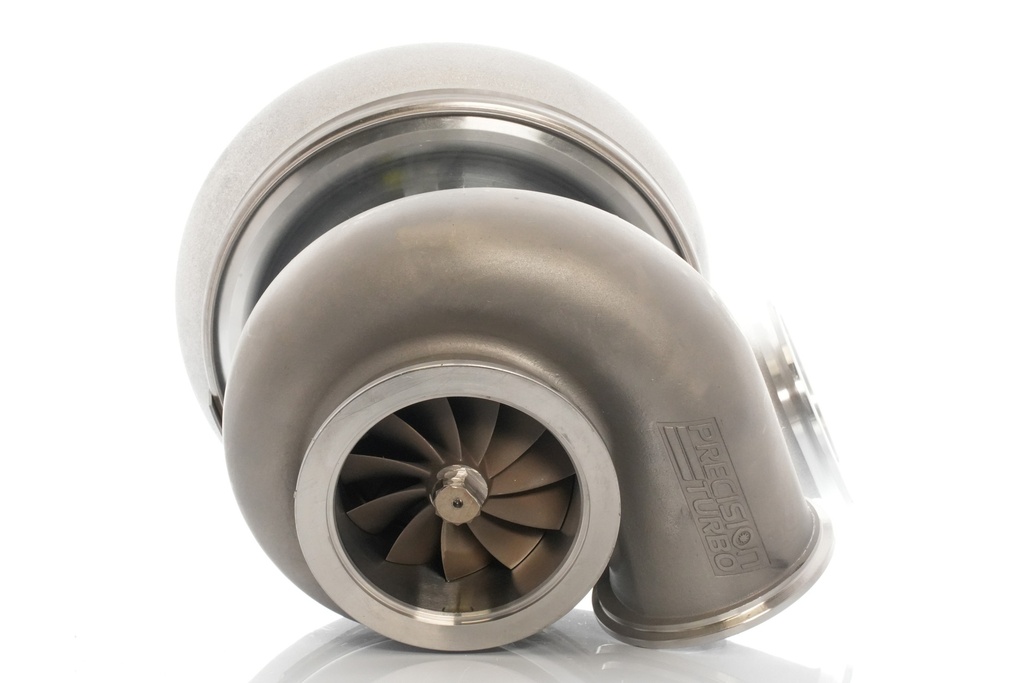

High Flow 11 blade turbine wheel design featuring high temperature resistant Alloy.Class Legal for several racing sanctions. Contact us for any class legal consultation.
Specifications
| Product Specs | |
|---|---|
| Compressor Wheel Inducer | 86mm |
| Compressor Wheel Exducer | 115mm |
| Horsepower Rating | 1800 |
| Turbine Wheel Inducer | 90mm |
| Turbine Wheel Exducer | 85mm |
| Turbo Kit Selections | |
|---|---|
| Turbine Housing | No Turbine Housing or Divided, Sportsman, 1.12 A/R, 85 Wheel or Divided, Sportsman, 1.28 A/R, 85 Wheel or Stainless, V-Band Inlet/Outlet, Sportsman, 1.00 A/R, 85 Wheel or Stainless, V-Band Inlet/Outlet, Sportsman, 1.15 A/R, 85 Wheel or Stainless, V-Band Inlet/Outlet, Sportsman, 1.28 A/R, 85 Wheel |
