Features and Solutions
Focusing on what's important.
What's New

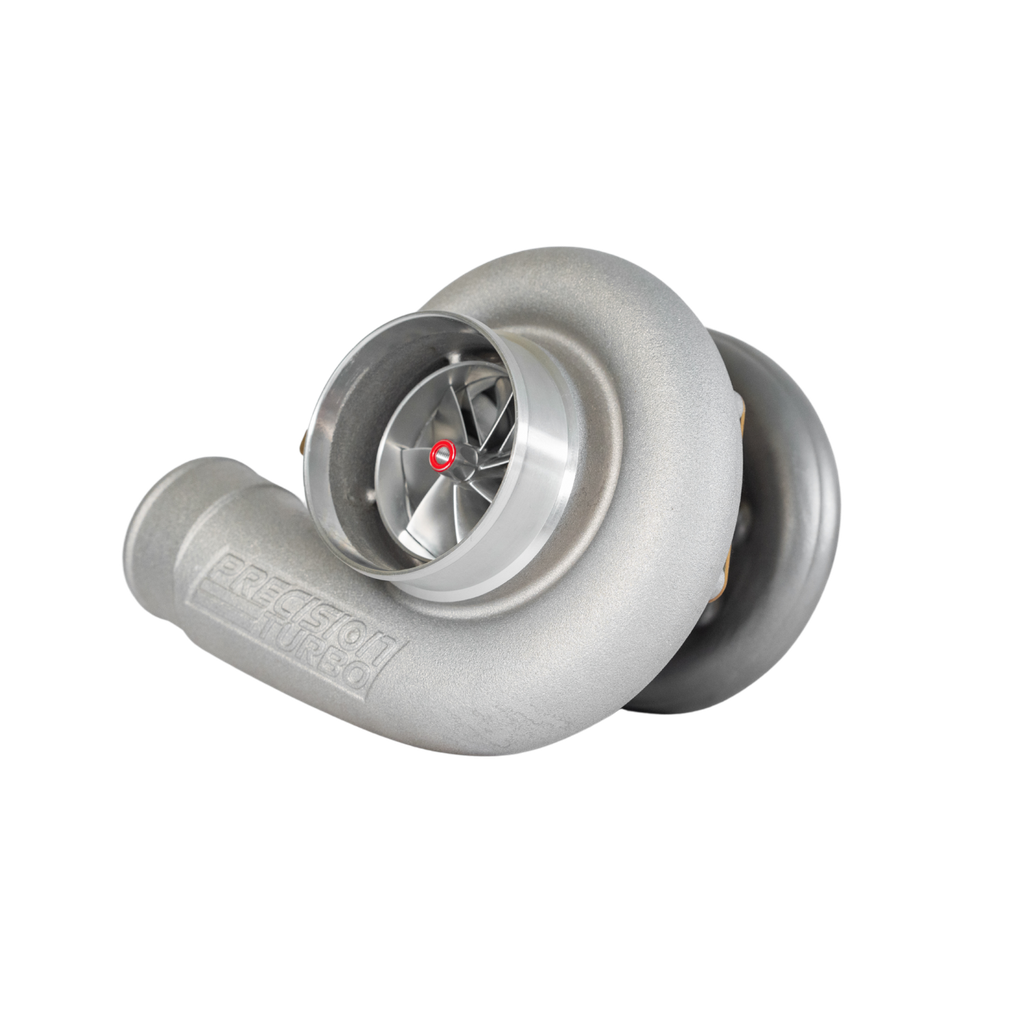

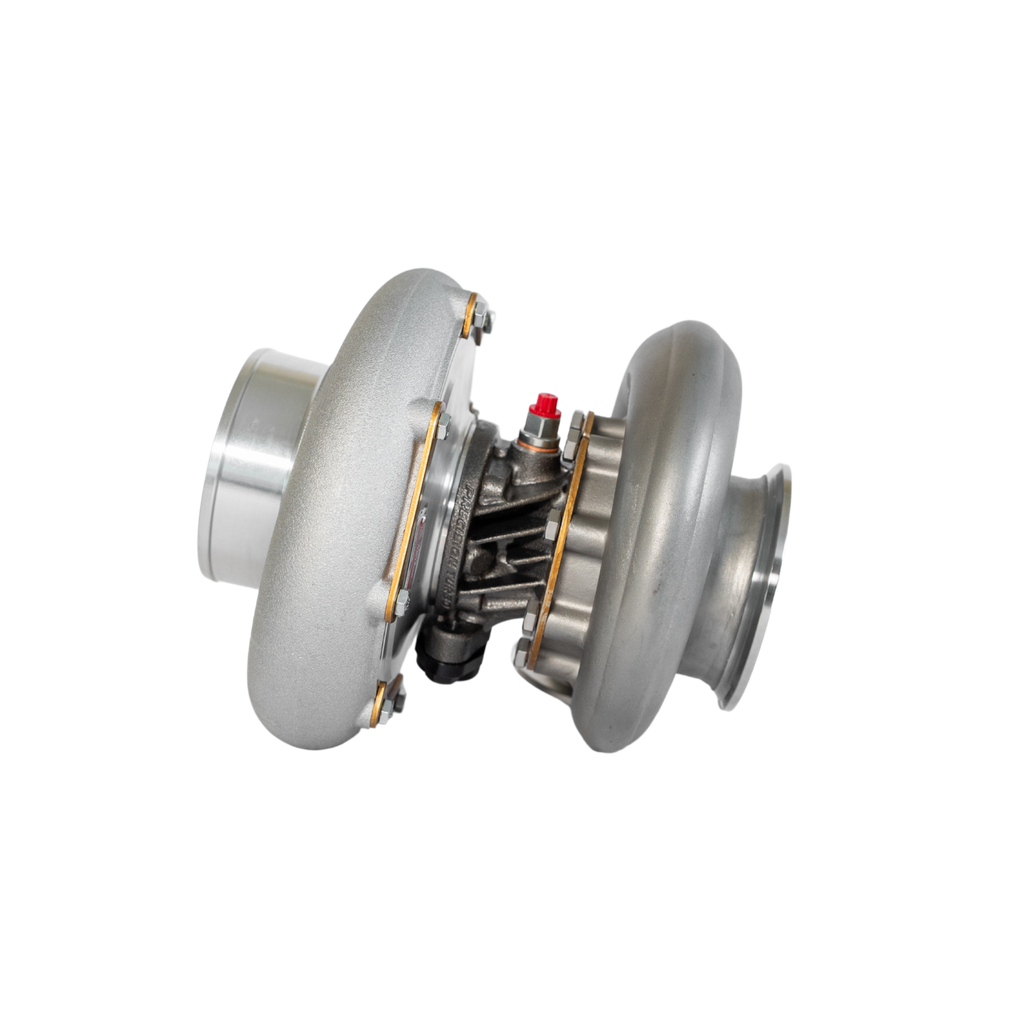

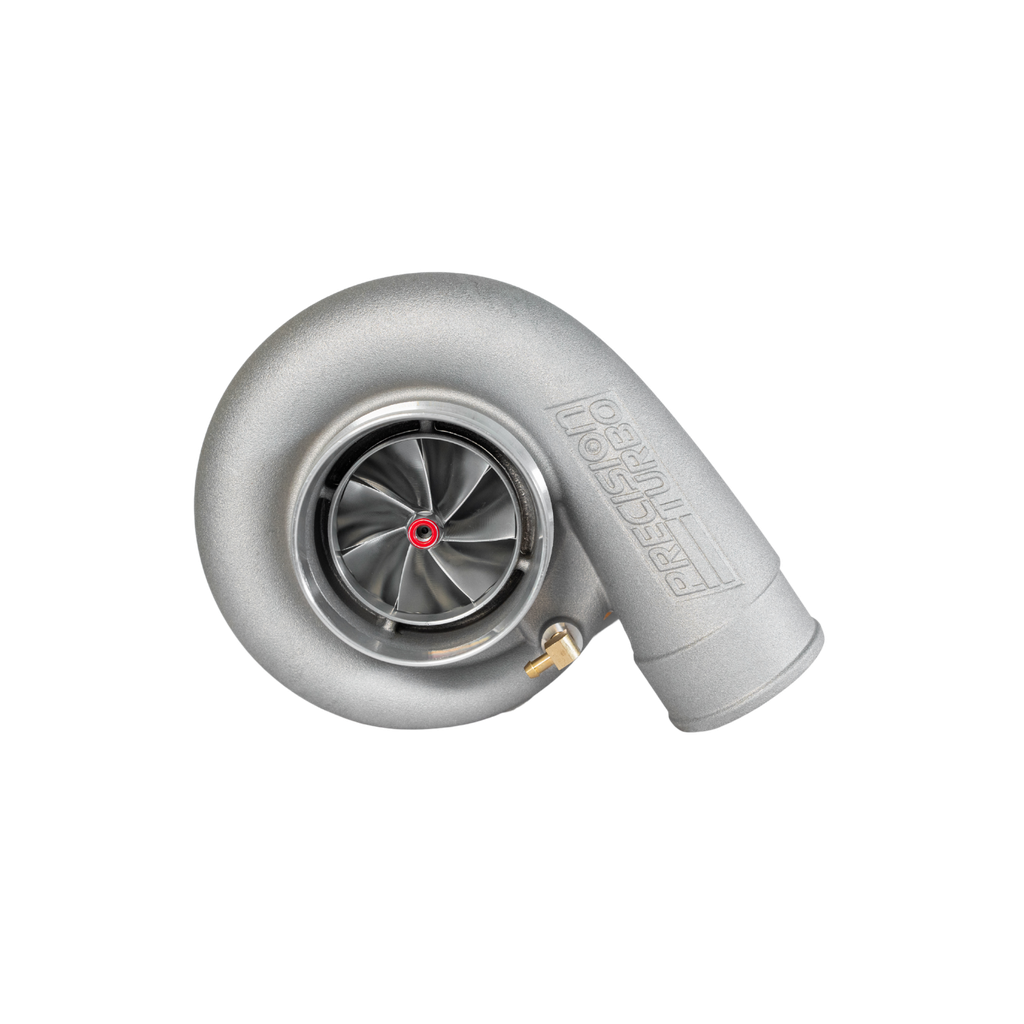

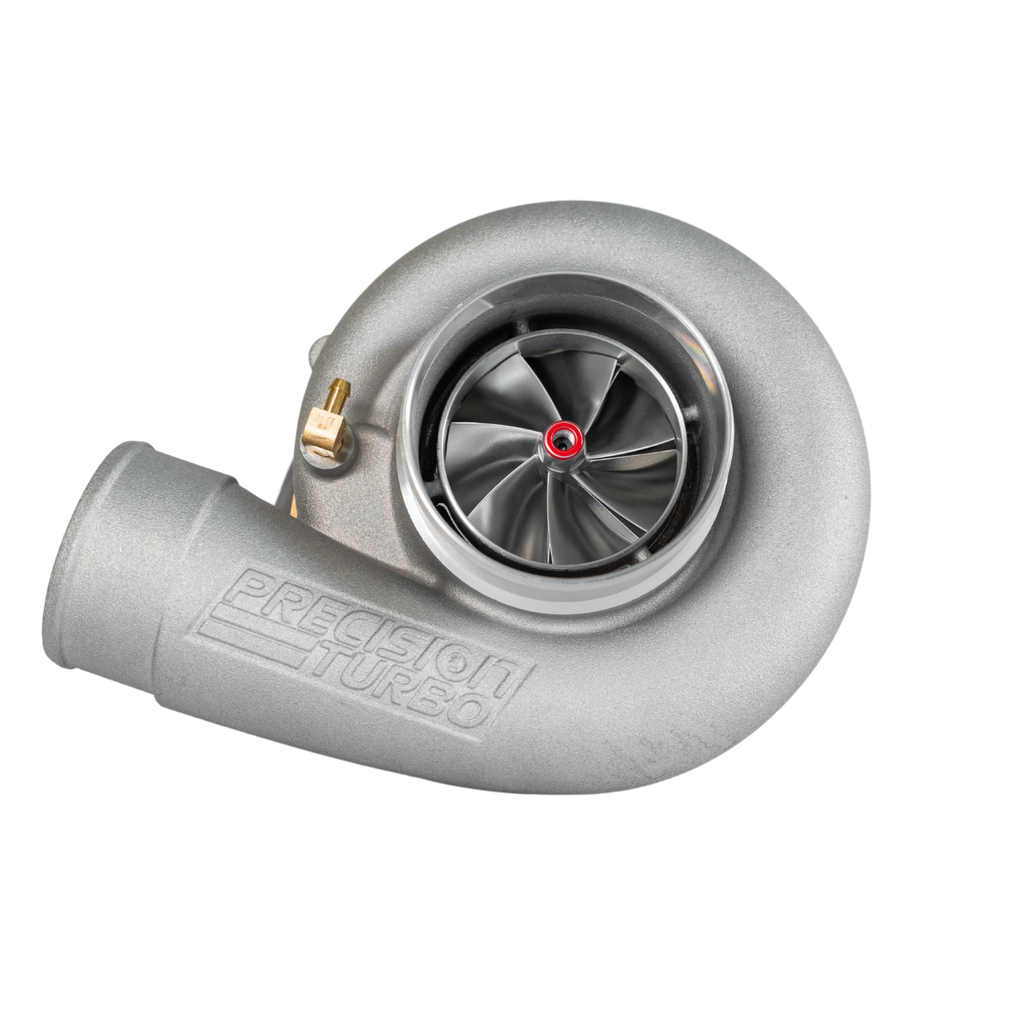

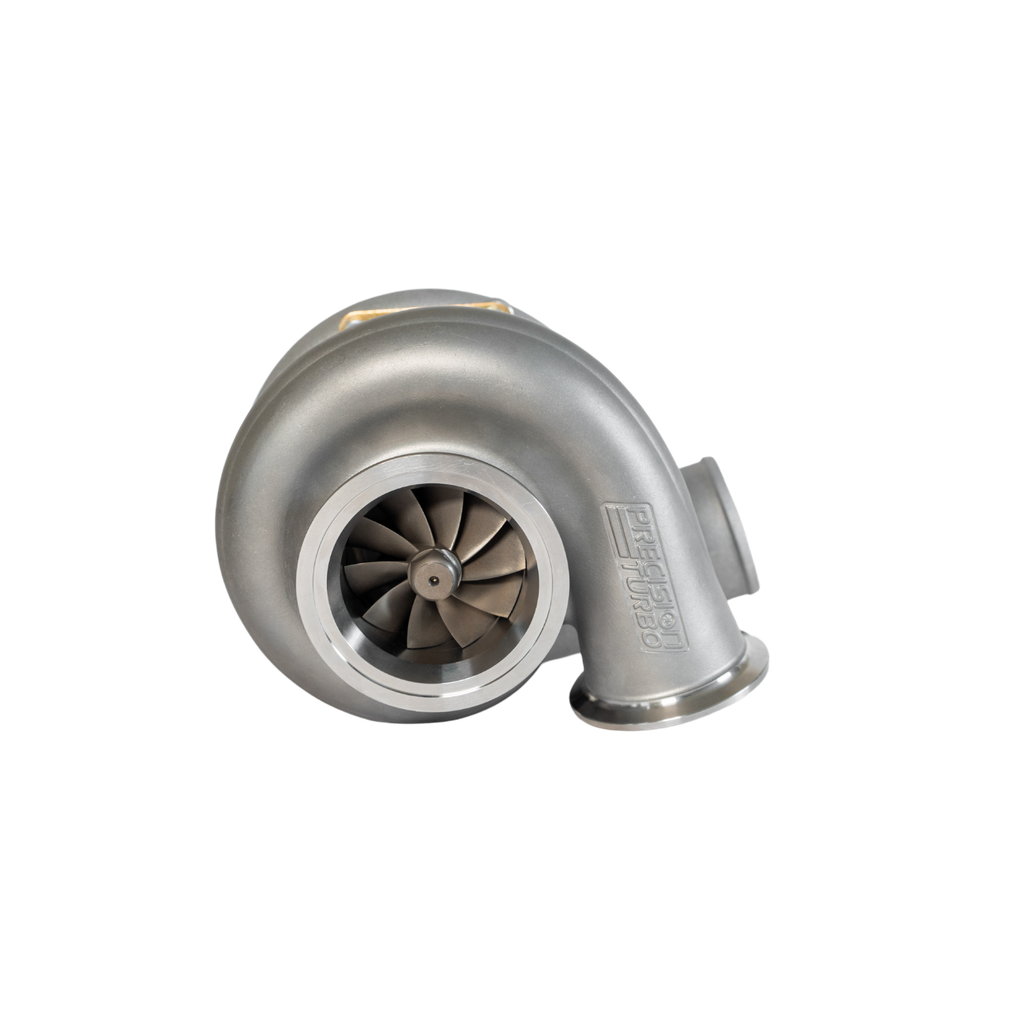

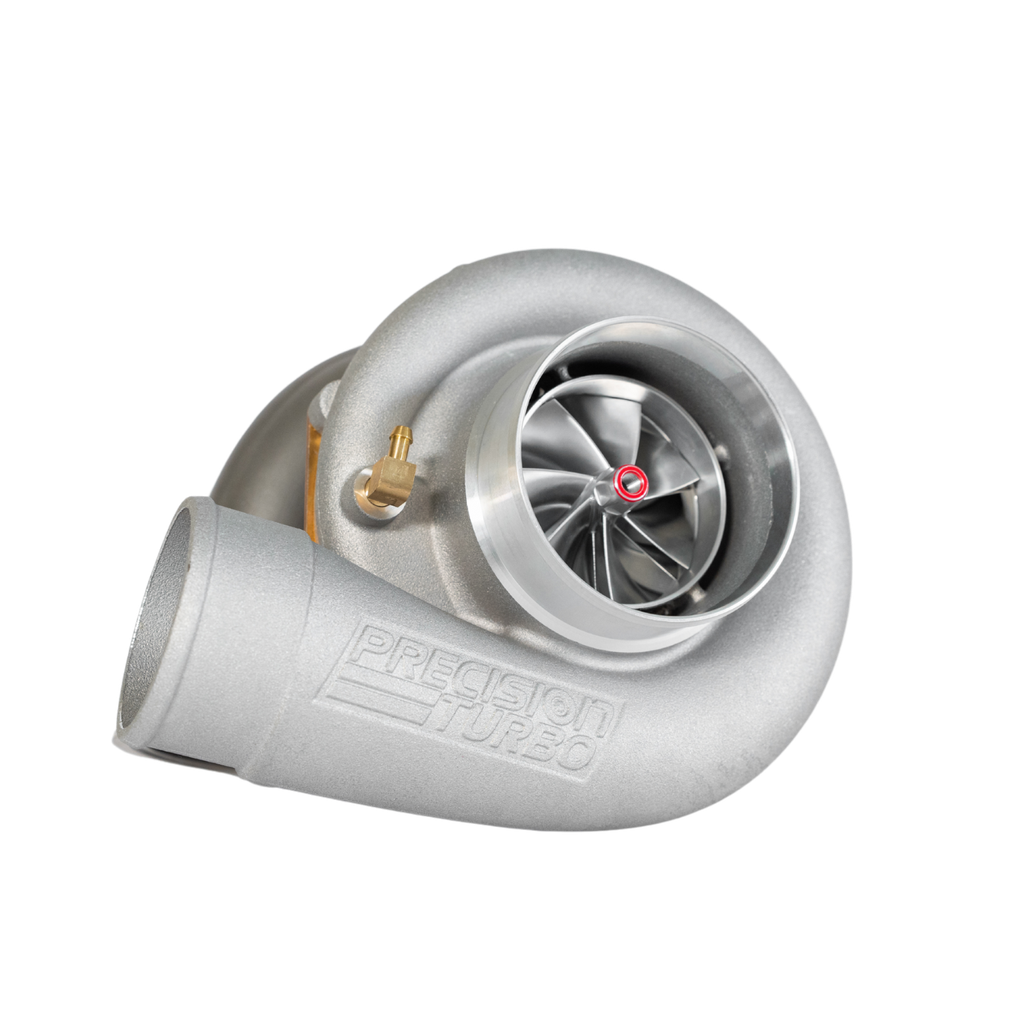

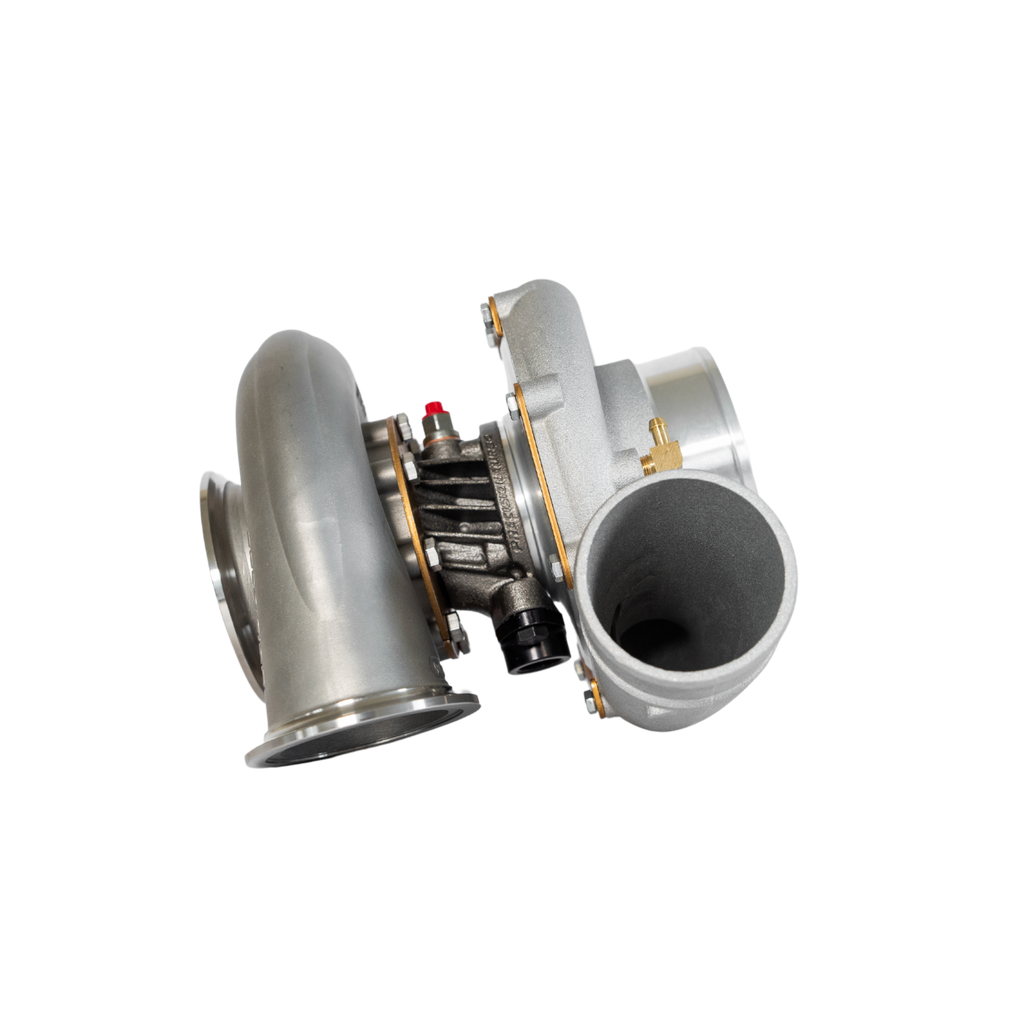

Our 7275 Next GEN turbocharger has set new performance benchmarks, breaking records across multiple platforms and helping many customers reach the 7s in the ¼ mile, while pushing over 1200hp to the wheels in various configurations. Now, it's time to deliver even more power, and we know our customers are eager for it. Introducing the revolutionary 7675 Next Gen H Cover turbocharger, now rated at 1480 horsepower, from the global leader in turbocharging technology.
The latest version of the 7675 Next Gen features:
- A brand-new, advanced 7x7 CEA (Competition Engineered Aerodynamics) technology compressor wheel, made from durable 2618-aluminum closed-die forging for superior strength and optimized airflow.
- Compressor cover enhancements with revised flow dynamics and precision machining, providing 10% more airflow and greater efficiency at higher pressure ratios.
- Our high-flowing H-Compressor cover with a 3" discharge and a 4" ported shroud inlet.
- Options available in T4 open, T4 divided, or V-Band in/out housing configurations.
Next Generation Race Technology
• HP Rating: 1480 HP
• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.
• High flow / highly efficient 75.13 mm turbine wheel
Compressor Cover Options
HP Compressor Cover
- All-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.
- 4” inlet and 3”outlet for maximum air flow.
Turbine Housing Options
Single Scroll (Undivided)

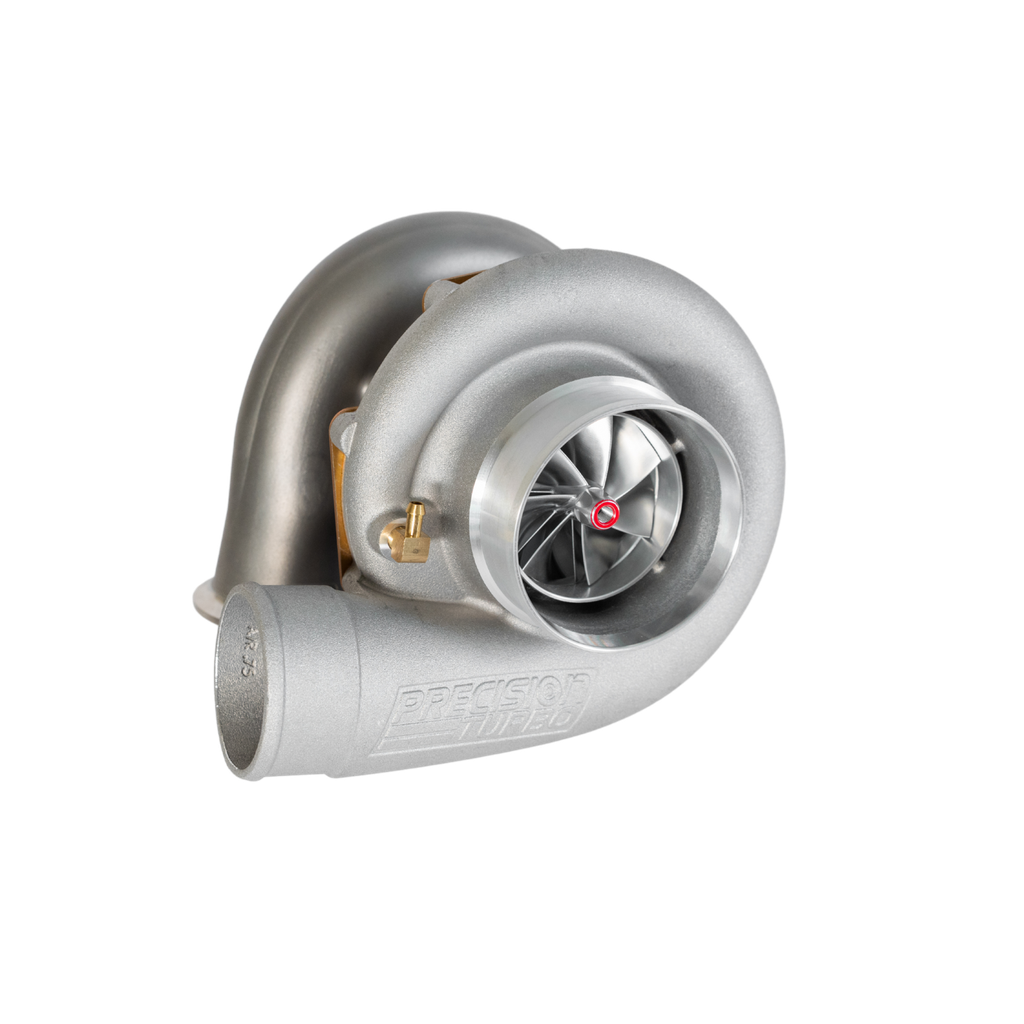

- T4 V-Band Inlet (Stainless .81A/R, .96A/R)
- T4 Inlet (.81A/R, .96A/R)
Twin Scroll (Divided)
- T4 Inlet (.84A/R, 1.0A/R, 1.15A/R, 1.32A/R, 1.52A/R, 1.75A/R)
Choosing AR Size
Understanding AR sizing
Understanding Exhaust Back Pressure
Video from Jay @ Real St Performance explaining how you AR sizing effects back pressure and spool characteristics.
Turbine Housing Options
Precision Turbo shows you the different turbine options available.
*Some turbos have more options than others.
Specifications
| Product Specs | |
|---|---|
| Compressor Wheel Inducer | 76mm |
| Compressor Wheel Exducer | 107mm |
| Horsepower Rating | 1480 |
| Turbine Wheel Inducer | 80mm |
| Turbine Wheel Exducer | 75mm |
| Variants | |
|---|---|
| Turbine Housing | T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Undivided .81 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Undivided .96 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided .84 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.0 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.15 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.32 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.52 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.75 A/R or T4 Sized Stainless V-Band Inlet/Outlet .81 A/R or T4 Sized Stainless V-Band Inlet/Outlet .96 A/R or No Turbine Housing |
| Compressor Cover | "HP" Cover |
