Features and Solutions
Focusing on what's important.
What's New
This new addition to the lineup addresses a need customers have been inquiring about in our product range. It perfectly bridges the gap between the responsiveness of our famous 6466 Gen 2 and the power capabilities of a 6870 Gen 2 turbocharger.
This evolution in our lineup involves the development of a new aero package, which includes a redesigned compressor cover with numerous flow enhancements and a new compressor wheel profile that incorporates an extended tip on the exducer. All of these improvements result in a 10% increase in flow compared to Gen 2 technology.
Next Generation Race Technology
• HP Rating: 1100 HP
• CEA (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum closed die forging for strength & optimized air flow.
• Air-cooled dual ceramic ball bearing center section (CHRA) for quick turbo response & durability.
• High flow / highly efficient 70.2mm turbine wheel
Compressor Cover Options
SPC - S Ported Compressor
- All-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.
- 4” inlet and 2-1/2”outlet for maximum air flow.
HP Compressor Cover
- All-new flow enhancements to the compressor housing providing 10% more flow than previous Gen 2 turbocharger compressor covers.
- 4” inlet and 3”outlet for maximum air flow.
Turbine Housing Options
Single Scroll (Undivided)
- T3 V-Band Inlet (Stainless 1.05A/R)
- T4 Inlet (.68A/R, .81A/R, .96A/R)
Twin Scroll (Divided)
- T4 Inlet (.84A/R, 1.0A/R, 1.15A/R, 1.32A/R)
- T4 V-Band (Stainless .81A/R, Stainless .96A/R)
Choosing AR Size
Understanding AR sizing
Understanding Exhaust Back Pressure
Video from Jay @ Real St Performance explaining how you AR sizing effects back pressure and spool characteristics.
Turbine Housing Options
Precision Turbo shows you the different turbine options available.
*Some turbos have more options than others.
Specifications
| Product Specs | |
|---|---|
| Horsepower Rating | 1200hp |
| Compressor Wheel Inducer | 68mm |
| Compressor Wheel Exducer | Info Not Available |
| Turbine Wheel Inducer | 78.7mm |
| Turbine Wheel Exducer | 70.2mm |
| Variants | |
|---|---|

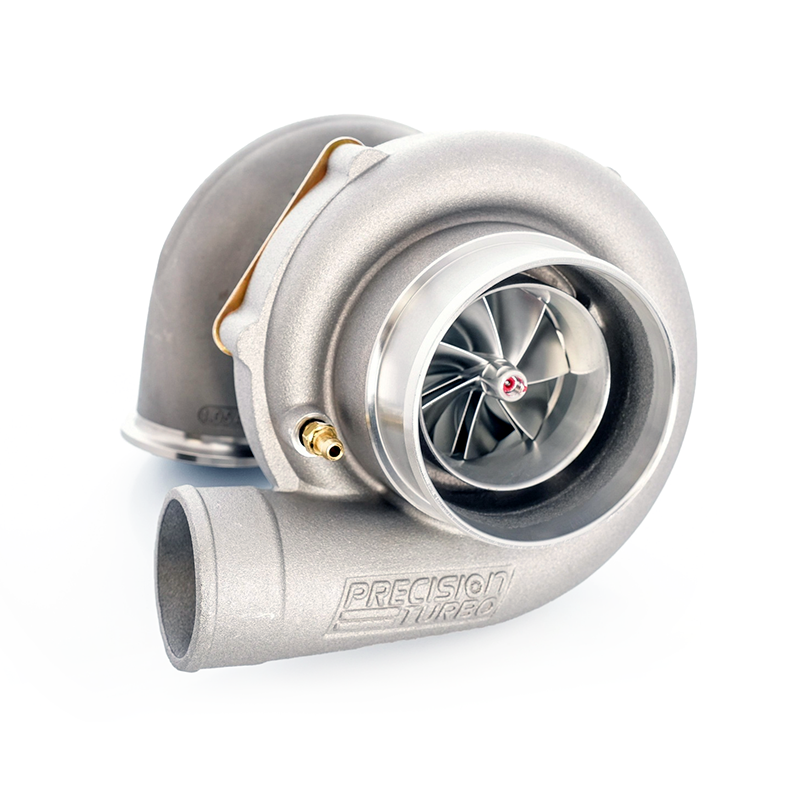

| Turbine Housing | T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Undivided .68 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Undivided .81 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Undivided .96 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided .84 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.0 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.15 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.32 A/R or T4 Sized 4-Bolt, T4 Intlet/V-band Discharge, Divided 1.75 A/R or T3 Sized Stainless V-Band Inlet/Outlet 1.05 A/R or T4 Sized Stainless V-Band Inlet/Outlet .81 A/R or T4 Sized Stainless V-Band Inlet/Outlet .96 A/R or No Turbine Housing |
| Compressor Cover | "SCP" Cover or "H" Cover |
