Precision-Built Stainless Lines. Rock-Solid Boost Control
Upgrade your PHR turbo system with a premium stainless-braided -4AN boost control line kit engineered for durability, heat resistance, and a clean, professional engine bay. Designed to replace traditional rubber hose routing, this kit ensures consistent boost control under extreme heat and pressure.
Compatible Turbo Kits
This kit is fully compatible with the following PHR turbo systems:
- PHR S45 Turbo Kit
- PHR S23 Turbo Kit
- PHR S1 Turbo Kit
- PHR V45 Turbo Kit
- PHR V23 Turbo Kit
- PHR V1 Turbo Kit
Whether you're running a single or dual wastegate setup, this kit is a direct-fit upgrade that cleans up routing and enhances reliability.
Features and Solutions
Focusing on what's important
All-Stainless Construction
Braided stainless -4AN lines withstand heat, abrasion, and vibration far better than rubber vacuum lines.
Correct Lengths & Routing for PHR Turbo Systems
Lines are pre-configured to fit S45, S23, V45, V23, S1, and V1 manifolds with clean routing for easy installation.
Banjo or NPT Wastegate Compatibility
Choose the correct configuration for your setup:
- M10×1.0 banjo fittings (Tial/Precision)
- 1/8" NPT fittings (Turbosmart)
Mounting Bracket Included
A dedicated boost control solenoid bracket (solenoid sold separately) ensures a clean, secure install.
Available in Two Finishes
- Raw stainless braided
- Black-coated stainless braided for a stealth look

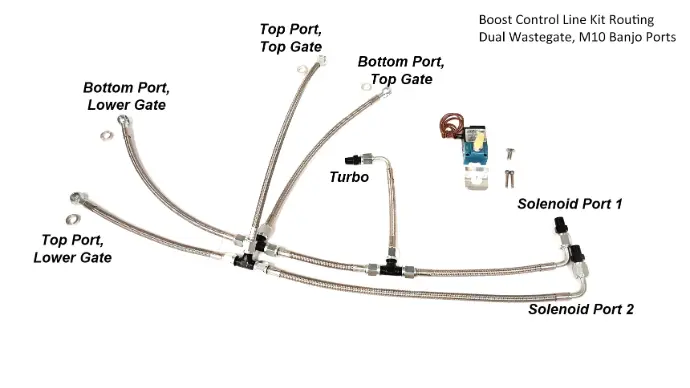

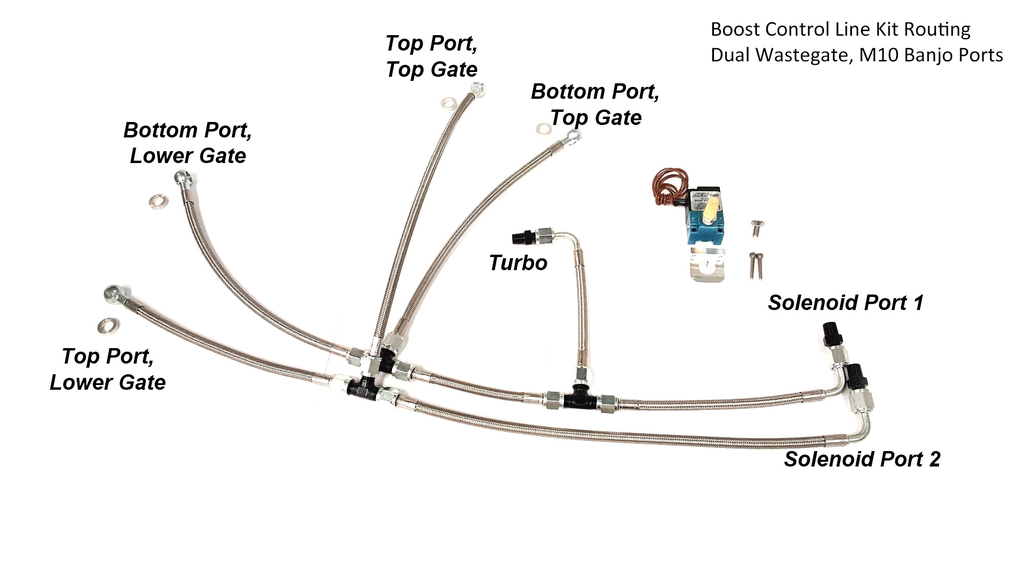

Routing for Dual Gate with M10 Banjo Ports

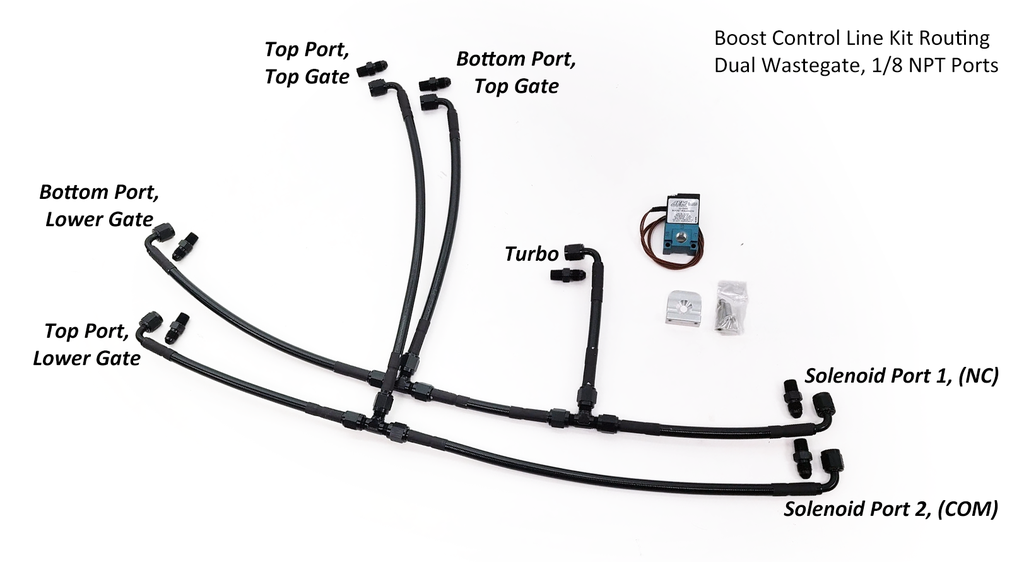

Routing for Daul Gate with 1/8 NPT Ports
Specifications
| Wastegate Port Type | M10x1.0 Banjo (Tial or Precision) or 1/8" NPT (Turbosmart) |
| Number of wastegates | (S) Single wastegate or (D) Dual wastegate |
| Line configuration | Stainless braided or Stainless braided with black coating |
