PHR Stainless Adjustment Lock Kit for PHR Billet Cam Gears for 2JZ/1JZ Engines

PHR 01011048.A
https://www.powerhouseracing.com/web/image/product.template/20101/image_1920?unique=c74d1fb
(0 review)

44.55 44.550000000000004 USD 49.50

Buy with on orders over $50. See if you qualify

49.50

  • Increments

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

PHR Adjustment Lock Kit for PHR Cam Gears. This is the the locks ONLY . Gears Available Below.






Features and Solutions

Focusing on what's important.

The No-Slip Solution

The Powerhouse Racing Billet Adjustable Locking Cam Gears are the only gears in the world for the 2JZ that offer a way of locking the gear and absolutely eliminating any chance of slip. See our video above.


The PHR Gear comes with the 0 position lock which will be the most widely used position. This kit is necessary to be able to adjust the gears and lock them in place. This kit allows adjustment from 0.5 degrees to 10 and degrees positive or negative and assures that your gear CANNOT SLIP FROM ITS ADJUSTED Position.

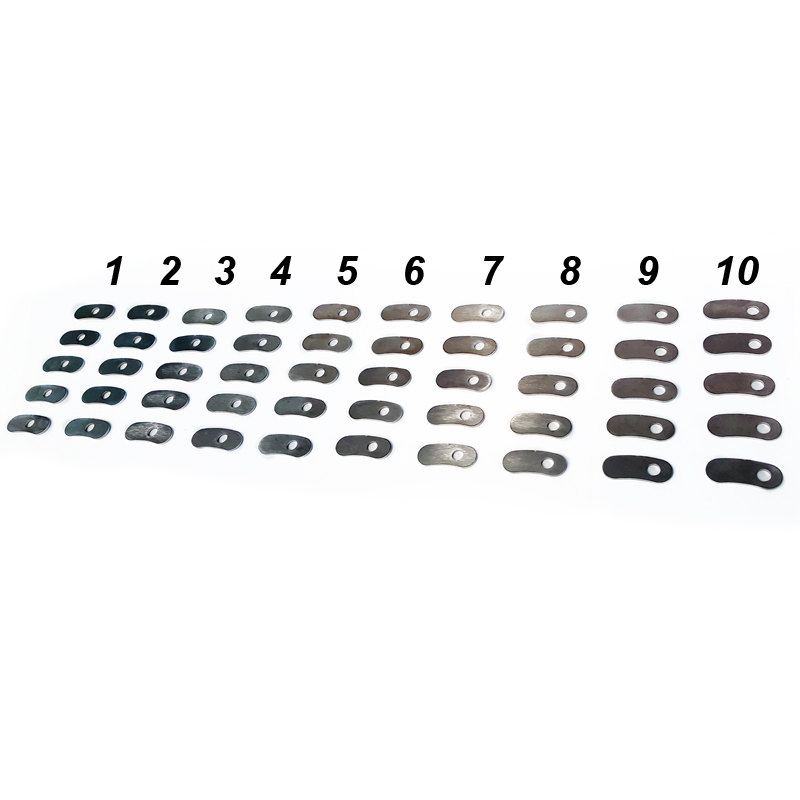

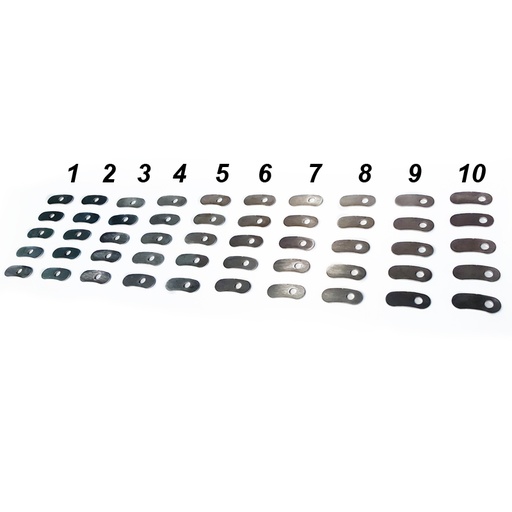

What's Included

Price is per kit, which will include 5 of each of adjustment position. Cut from 304 Stainless material.


The whole degree increment kit includes the following:

  • 5x-0.5 degree
  • 5x-1.5 degree
  • 5x- 2.5 degree
  • 5x-3.5 degree
  • 5x-4.5 degree
  • 5x-6.5 degree
  • 5x-7.5 degree
  • 5x-8.5 degree
  • 5x-9.5 degree

The half degree increment kit includes the following:


  • 5x-0.5 degree
  • 5x-1.5 degree
  • 5x- 2.5 degree
  • 5x-3.5 degree
  • 5x-4.5 degree
  • 5x-6.5 degree
  • 5x-7.5 degree
  • 5x-8.5 degree
  • 5x-9.5 degree




Tuning resolution for advanced race programs.

For 99% of users, the whole degree increments do the job, allowing for 1 degree adjustments of the camshaft timing (two degrees of crankshaft rotation).


The half degree increment locks allow for even more exact cam adjustment. We have found the need for these for perfect camshaft opening and closing events. This has been an essential need for creating repeatable results for advanced racing teams. These allow for 0.5 degree adjustments of the camshaft timing (one degree of crankshaft rotation).


Most people do not need these increments. If you don't know you need them, then answer is you likely do not need them.

Make Sure You Get What You Need

One kit is enough to have every position position for ONE cam gear. Select for what you need.


Below are some possible scenarios to help you understand how these should be ordered.


Scenario 1: You have two adjustable cam gears and only need the whole increments.

  • You will want two whole increment kits.
  • Select "Whole Degree Increments" above and add two to the cart.

Scenario 2: You have a VVT-i motor and therefore only one adjustable cam gear. You only want the whole increments.

  • You will want only one whole increment kit.
  • Select "Whole Degree Increments" above and add one to the cart.

Scenario 3: You have two adjustable cam gears, and want the most precise adjustability. I want both whole and half increments so I can dial in my cam timing with exact precision.

  • You will want two whole increment kits AND two half increment kits.
  • 1. Select "Whole Degree Increments" above and add two to the cart.
  • 2. Click continue shopping
  • 3. Select "Half Degree Increments" above and add two to the cart.

Scenario 4: I already have a two degree kits and now want to add the half degree increments so I can dial in my cam timing with even more exact precision.

  • You will want two half degree increment kits.
  • Select "Half Degree Increments" above and add two to the cart.

Specifications

Increments Whole Degree Increments or Half Degree Increments
