Serious Cooling. Smart Packaging.
Perfect for turbo builds, the PHR SPAL 15.2" Single Brushless Fan Kit is the ideal cooling upgrade for the MKIV Toyota Supra. Designed to provide high-output electric cooling while maintaining critical space for intercooler piping, this kit is built for modern performance setups.
🔧 Features and Solutions
Details, details, details.
SPAL 15.2" Brushless Main Fan
Pushes 4200 m³/h (2478 CFM) of airflow with variable-speed PWM control. Whisper-quiet and highly efficient under all conditions.
Optional 5" Auxiliary SPAL Fan
Adds 490 m³/h (289 CFM) of supplemental cooling—bringing total system flow to 4690 m³/h (2767 CFM) when combined with the main fan. The auxiliary fan is a brushed fan and controlled with simple on/off relay control.
Intercooler-Friendly Layout
The single main fan layout provides clearance for front-mounted intercooler piping, solving common fitment issues in turbocharged applications.
Integrated Overflow Tank (Optional)
Tucked cleanly into the shroud, available in raw aluminum or powder-coated or polished finishes (gloss black, matte black, wrinkle black, or polished).
High-Speed Bypass Flaps
Allow passive airflow through the radiator at cruising speeds, improving efficiency and reducing fan workload.
➕
Smart Auxiliar Fan Options
Add the 5" auxiliary fan and chose your control strategy:
Factory Plug-In A/C Control
Reuse the OEM auxiliary fan wiring from twin turbo Supras. The auxiliary fan will activate automatically with your A/C system—no wiring mods needed. Just swap connectors. This was not an option on non-turbo vehicles.
Standalone ECU Control
Add the optional wiring harness to control the fan from your aftermarket ECU, allowing on-demand cooling support based on temp, load, or A/C signal.
🔥 Build Smarter, Cool Harder
Whether you're building a 1000hp monster or just optimizing your street setup, the PHR SPAL Single Brushless Fan Kit gives you maximum airflow, minimum bulk, and a flexible platform that adapts to your cooling control needs.
👉 Order yours now and take control of your cooling system.
Why Brushless?
SPAL Brushless Fans
With 40 years of experience designing, manufacturing, and marketing electric fans, its a no brainer why we chose them for our products. SPAL has been designing and manufacturing brushless fans since 2010 making them the leader in design and functionality.
PWM Control
Utilizing PWM controls you are able to control the speed at which these fans come on. Unlike older electric fans its not just on and off, PWM control will allow to have the fans turn on at the minimal fan speed with the ability to be ramped up as coolant temps increase. Whether you are having this controlled by your aftermarket ECU or using the SPAL PWM controller you have absolute control of your fan settings.
Power Consumption
Due to the brushless design of the motor, these fans are able to run more efficiently with lower amp draws than standard brushed variants. This particular fan is rated at 500 watts with a max draw of 43 amps.

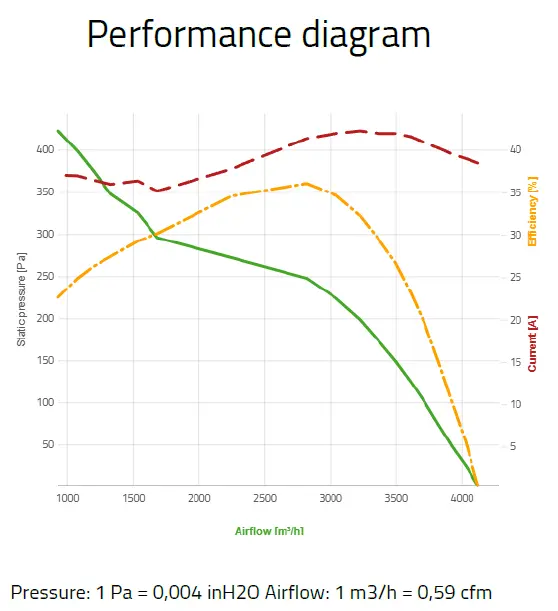

Airflow
Utilizing PWM controls the fan speed is adjustable from 600 rpm to a max of 2350 rpm. With this fan at 100% power its able to move a whopping 2478 CFM of airflow.
Durability
With zero friction inside the motor brushless fans have a longer life span, operate with less noise, have a high resistance to vibration, and mechanical stress levels.
Specifications
| Vehicle Fitment | |
|---|---|
| Make | Toyota, Lexus |
| Model | Supra, SC300 (Soarer) |
| Chassis Code | A80, Z30, Z31, Z32 |
| Generation | MKIV (Mark 4), 1st Gen |
| Trim | Turbo, Naturally Aspirated (NA) |
| Fan Shroud Selections | |
|---|---|
| 5" Brushed Auxilary Fan | No Auxilary Fan or Add Auxilary Fan |
| Attached Overflow Reservoir | No Coolant Overflow or Add Attached Coolant Overflow Reservoir |
| Powder Coat or Polish Overflow | No Powder Coating or Polishing or Gloss Black Powder Coat or Matte Black Powder Coat or Wrinkle Black Powder Coat or Polished |
| Wiring Harness for 15.2" Fan | No Wiring Harness for 15.2" Fan or Add Wiring Harness for 15.2" Fan Only or Add Wiring Harness for 15.2" Fan + Auxilary Fan |
| Fan | 15.2" Brushless |
| Product Specs | |
|---|---|
| Material | Aluminum |
| Total Flow Rate | 4690 m³/h (2767 CFM) |
| Current Draw | 43A, 6.5A |
| Variants | |
|---|---|
| Finish | Raw or Gloss black powder coat or Matte black powder coat or Wrinkle black powder coat or Polished |
