Serious Cooling. Smart Packaging.

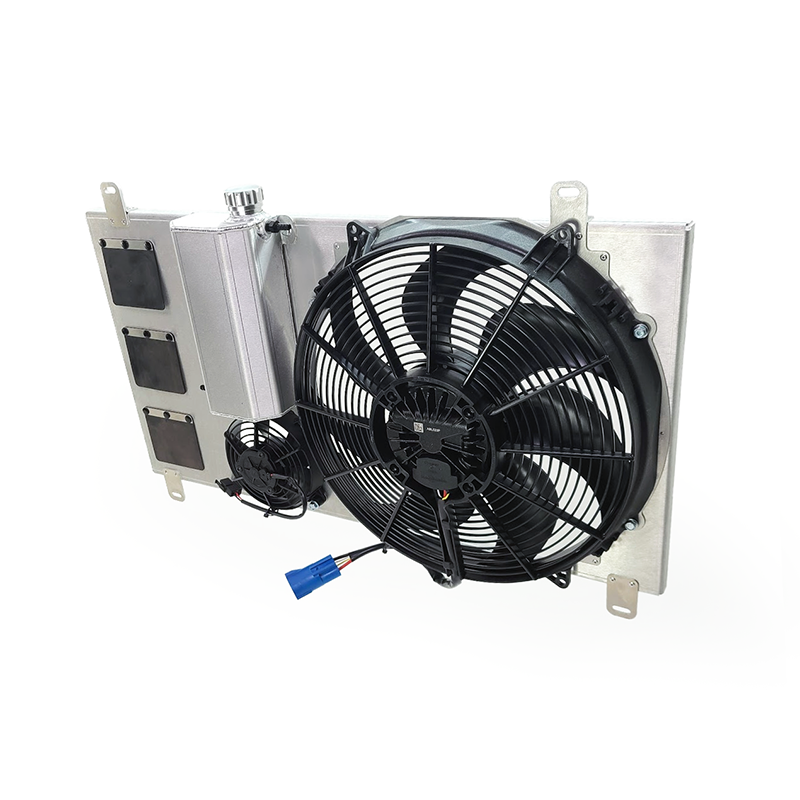

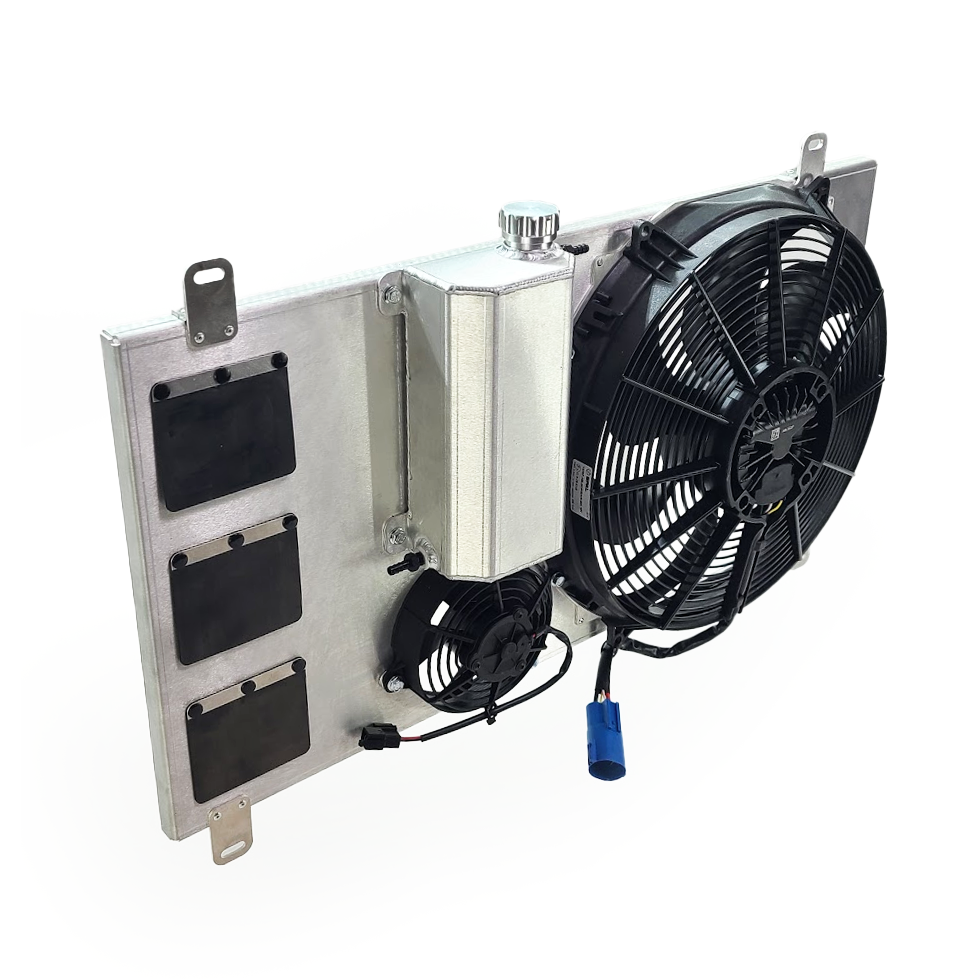

Perfect for turbo builds, the PHR SPAL 15.2" Single Brushless Fan Kit is the ideal cooling upgrade for the MKIV Toyota Supra. Designed to provide high-output electric cooling while maintaining critical space for intercooler piping, this kit is built for modern performance setups.
🔧 Features and Solutions
Details, details, details.

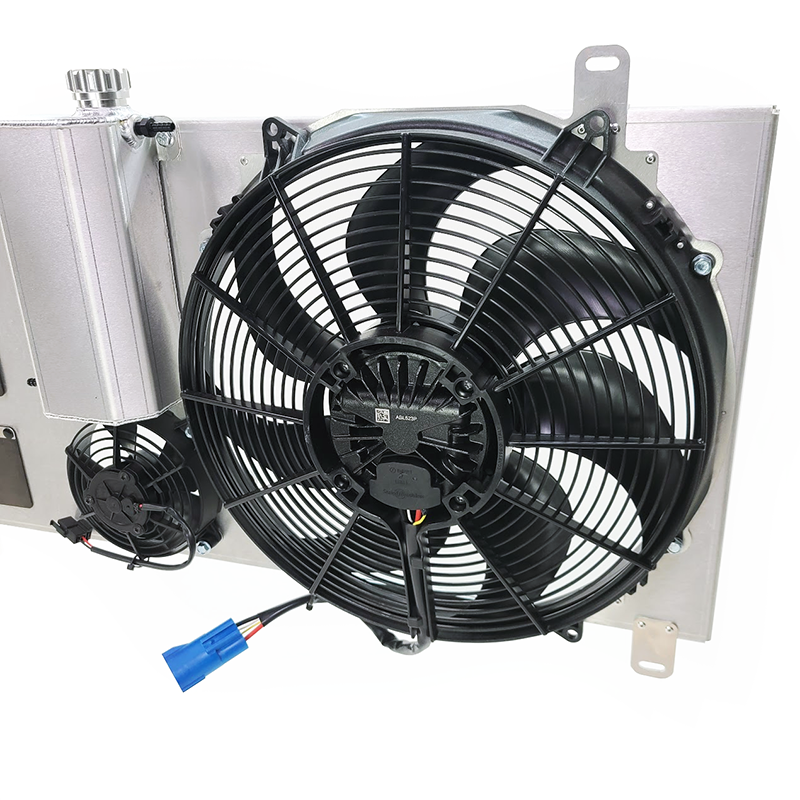

SPAL 15.2" Brushless Main Fan
Pushes 4200 m³/h (2478 CFM) of airflow with variable-speed PWM control. Whisper-quiet and highly efficient under all conditions.

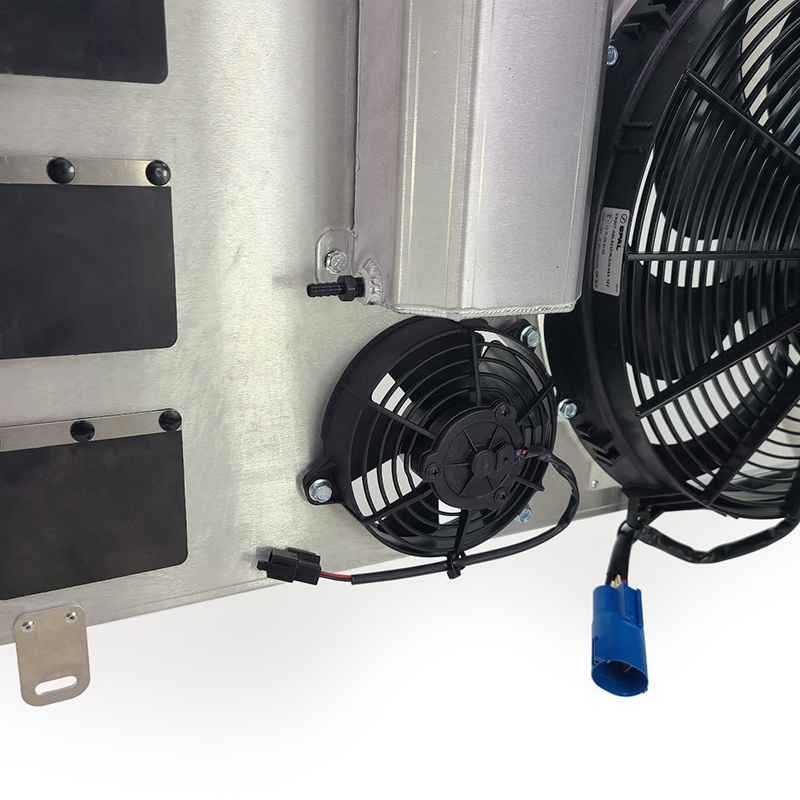

Optional 5" Auxiliary SPAL Fan
Adds 490 m³/h (289 CFM) of supplemental cooling—bringing total system flow to 4690 m³/h (2767 CFM) when combined with the main fan. The auxiliary fan is a brushed fan and controlled with simple on/off relay control.
Intercooler-Friendly Layout
The single main fan layout provides clearance for front-mounted intercooler piping, solving common fitment issues in turbocharged applications.

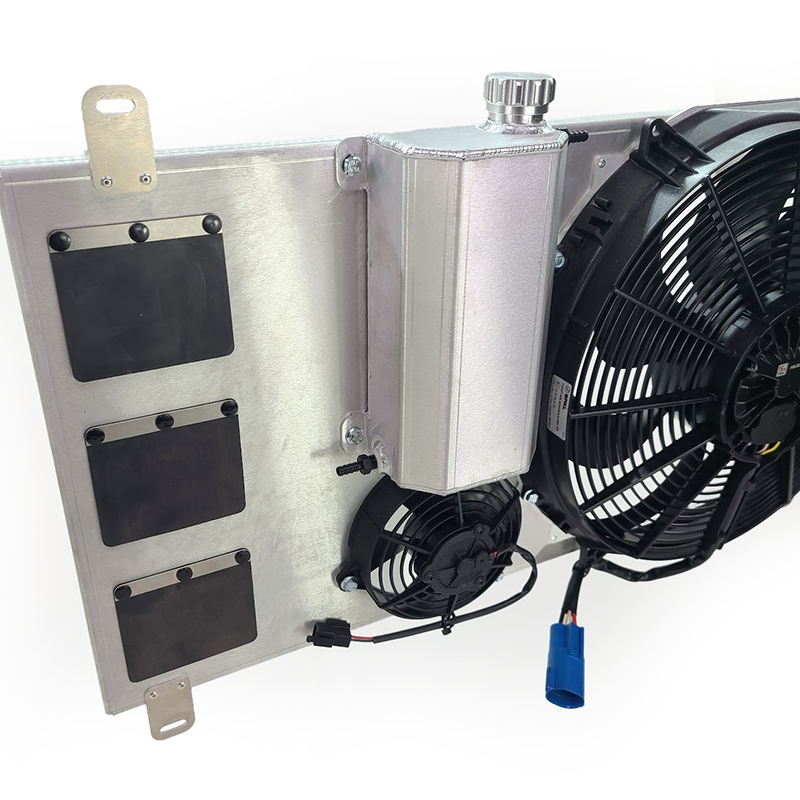

Integrated Overflow Tank (Optional)
Tucked cleanly into the shroud, available in raw aluminum or powder-coated or polished finishes (gloss black, matte black, wrinkle black, or polished).
High-Speed Bypass Flaps
Allow passive airflow through the radiator at cruising speeds, improving efficiency and reducing fan workload.
➕
Smart Auxiliar Fan Options
Add the 5" auxiliary fan and chose your control strategy:
Factory Plug-In A/C Control
Reuse the OEM auxiliary fan wiring from twin turbo Supras. The auxiliary fan will activate automatically with your A/C system—no wiring mods needed. Just swap connectors. This was not an option on non-turbo vehicles.
Standalone ECU Control
Add the optional wiring harness to control the fan from your aftermarket ECU, allowing on-demand cooling support based on temp, load, or A/C signal.
🔥 Build Smarter, Cool Harder
Whether you're building a 1000hp monster or just optimizing your street setup, the PHR SPAL Single Brushless Fan Kit gives you maximum airflow, minimum bulk, and a flexible platform that adapts to your cooling control needs.
👉 Order yours now and take control of your cooling system.
Specifications
| Vehicle Fitment | |
|---|---|
| Make | Toyota, Lexus |
| Model | Supra, SC300 (Soarer) |
| Chassis Code | A80, Z30, Z31, Z32 |
| Generation | MKIV (Mark 4), 1st Gen |
| Trim | Turbo, Naturally Aspirated (NA) |
| Fan Shroud Selections | |
|---|---|
| 5" Brushed Auxilary Fan | No Auxilary Fan or Add Auxilary Fan |
| Attached Overflow Reservoir | No Coolant Overflow or Add Attached Coolant Overflow Reservoir |
| Powder Coat or Polish Overflow | No Powder Coating or Polishing or Gloss Black Powder Coat or Matte Black Powder Coat or Wrinkle Black Powder Coat or Polished |
| Wiring Harness for 15.2" Fan | No Wiring Harness for 15.2" Fan or Add Wiring Harness for 15.2" Fan Only or Add Wiring Harness for 15.2" Fan + Auxilary Fan |
| Fan | 15.2" Brushless |
| Product Specs | |
|---|---|
| Material | Aluminum |
| Total Flow Rate | 4690 m³/h (2767 CFM) |
| Current Draw | 43A, 6.5A |
| Variants | |
|---|---|
| Finish | Raw or Gloss black powder coat or Matte black powder coat or Wrinkle black powder coat or Polished |
