Temps Controlled. Easily.

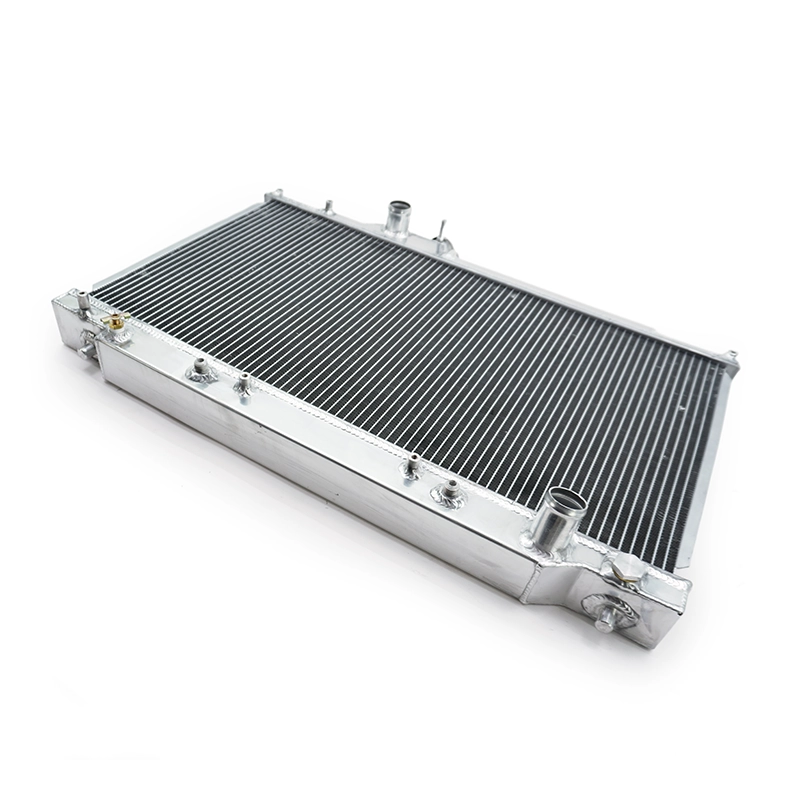

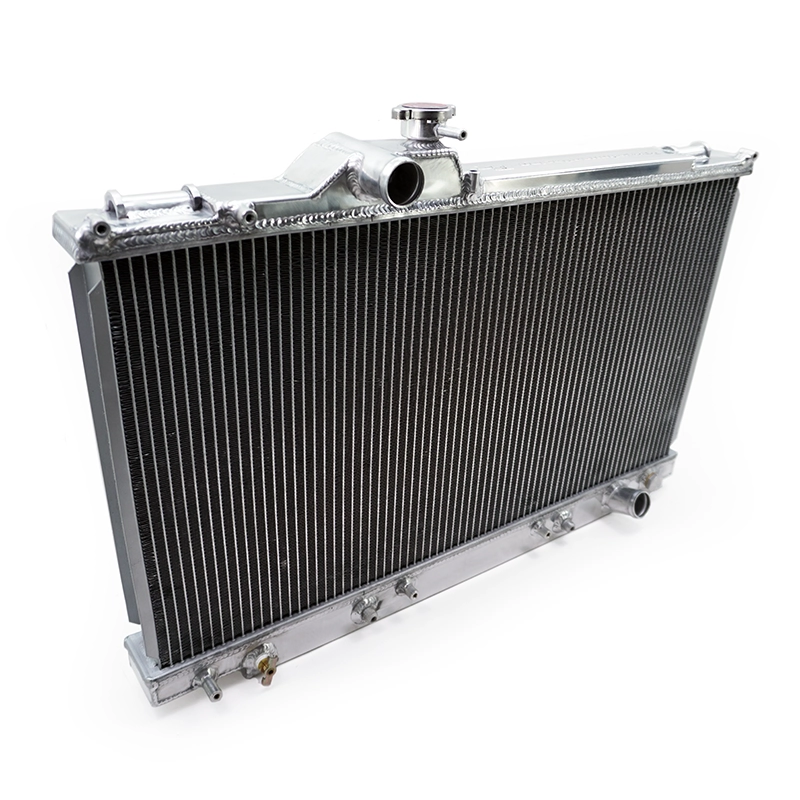

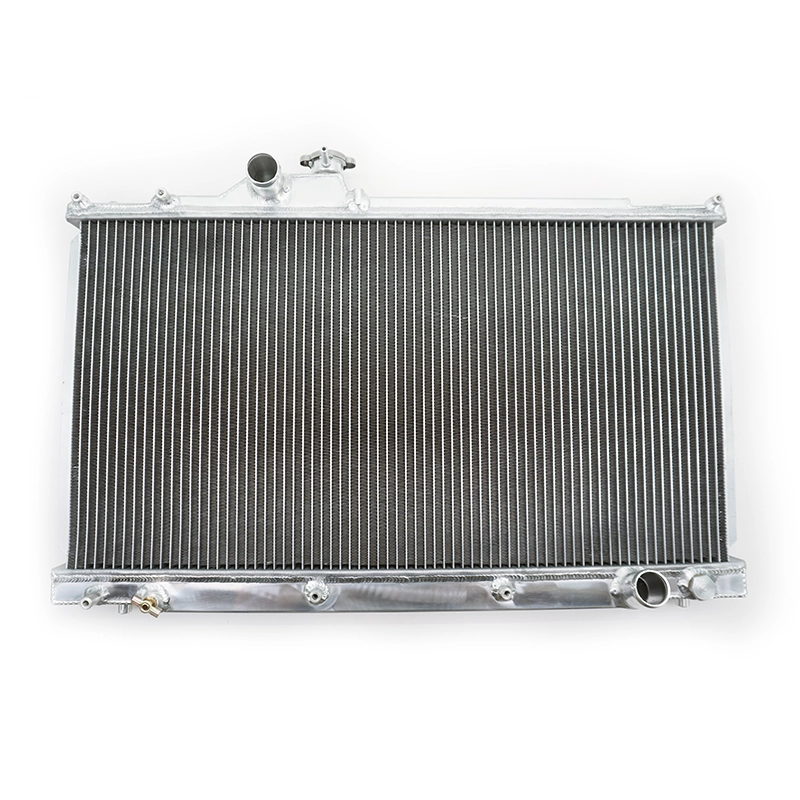

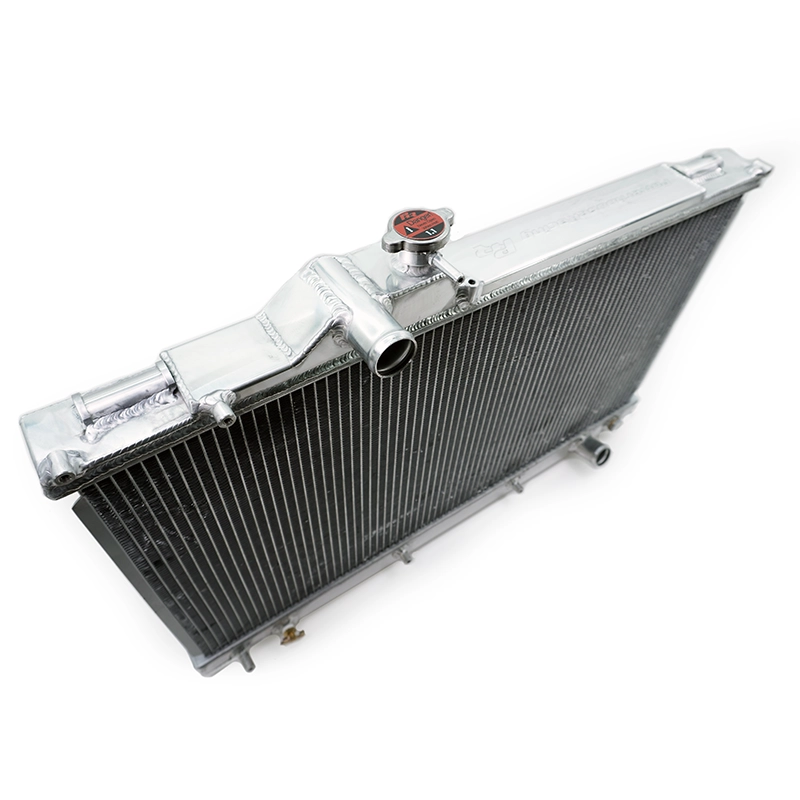

The PHR Race Radiator for the Lexus IS300 is engineered to handle the intense demands of high-performance driving. Designed with a focus on superior cooling efficiency, it’s perfect for both street and track enthusiasts looking to push their IS300 to the limit.
This high-capacity radiator ensures your engine stays cool under pressure, delivering optimal performance even in the most demanding conditions. Whether you're upgrading for better reliability or prepping for the next race day, this radiator is built to outperform the competition.
Key Features
Lots of Reasons to Upgrade
Direct Fit
Hassle-free installation using stock mounting points and brackets. No modifications needed.
Enhanced Cooling
Features a robust 2" aluminum core which increases the heat exchange in fluid by providing larger surface area to further help keep your coolant temperatures cooler. With larger full aluminum tig welded end tanks ensuring optimal performance even under extreme conditions.

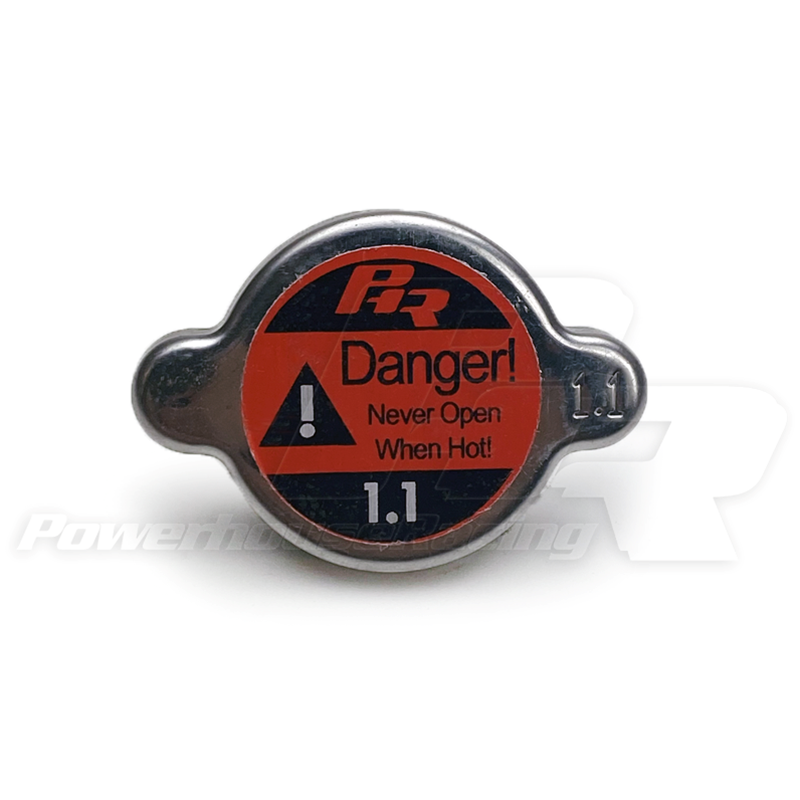

High Quality Radiator Cap
Comes equipped with a 1.1 Bar (16 psi) cap for reliable pressure control.
Hose Options

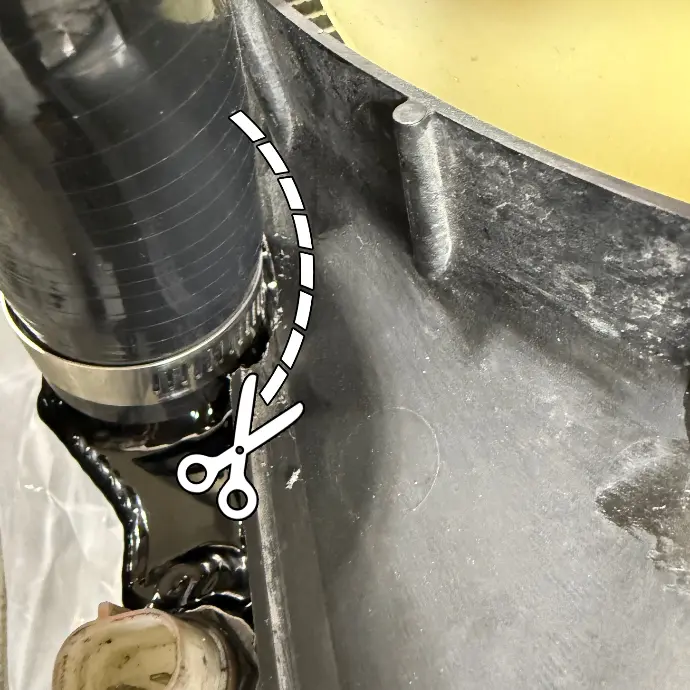

Designed to work perfectly with the OEM hose (will need a slight trim) for the best functionality and fitment.

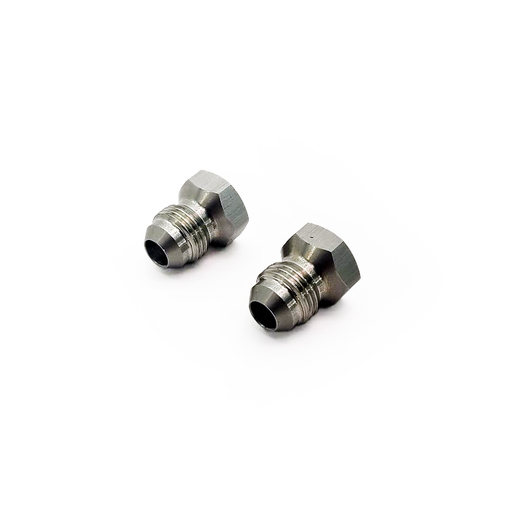

For those seeking even greater performance , we offer the option to upgrade to -20 fittings on both the upper and lower outlets.
Customizable Finish
Multiple finish options to help complement the look of your engine bay. The options are as follows
• Raw Aluminum
• Matte Black Powder
• Gloss Black Powder
• Wrinkle Black Powder
• Polished
Internal Trans Cooler Option
Our race radiator for the IS300 has an option for an internal trans cooler. This makes our radiator a direct drop in option for automatic vehicles not looking to go to an external trans cooler.
The transmission cooler is 50% larger than the OEM cooler. Further, because of the enhanced efficiency of the PHR Radiator core, you'll be cooling your transmission fluid with even cooler water. Thus you get compound cooling effects resulting in cooler transmission fluid, better reliability and higher performance for your transmission.
Specifications
| Vehicle Fitment | |
|---|---|
| Make | Lexus |
| Model | IS300 (Altezza) |
| Chassis Code | CE10, XE10 |
| Generation | 1st Gen |
| Core Size | 28" x 14.5" x 2" (711mm x 368mm x 50mm) |
| Overall Size | 29"x 20"x 2.5" (736mm x 508mm x 63mm) |
| Flow Path | Single Pass |
| Rows | Two |
| Product Specs | |
|---|---|
| Material | Aluminum |
| Variants | |
|---|---|
| Transmission Cooler | None or Internal |
| Finish | Raw or Gloss black powder coat or Matte black powder coat or Wrinkle black powder coat or Polished |
| Radiator inlet/outlet | OEM hose inlet and outlet or -20AN inlet and outlet |
