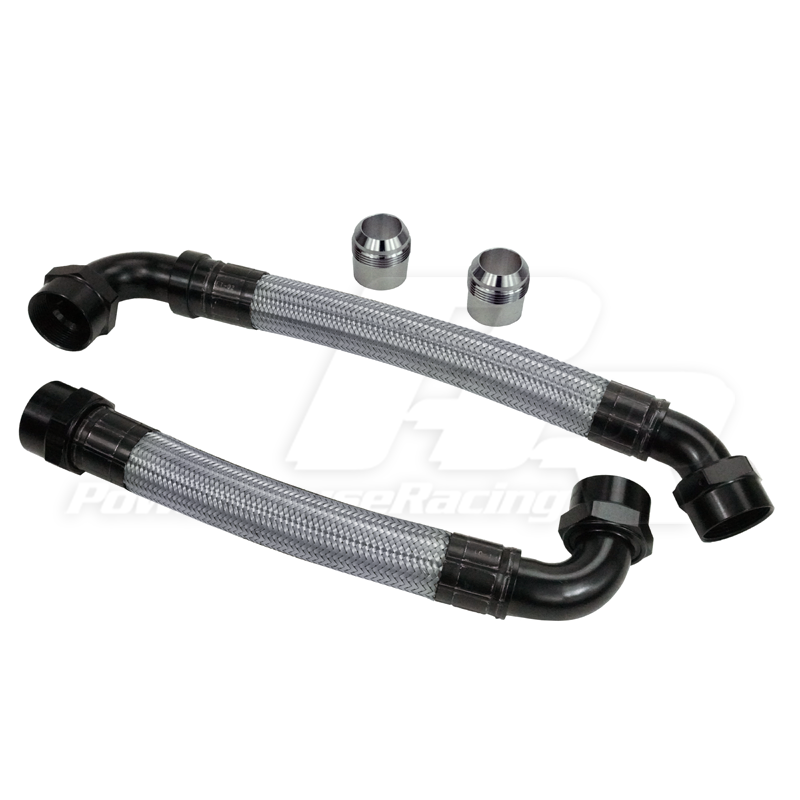

PHR Race -20AN Radiator Hose Kit for MKIV Supra or SC300, 2JZ-GTE

PHR 01010615.BK.E
https://www.powerhouseracing.com/web/image/product.template/17369/image_1920?unique=7f3bd08
(0 review)

704.06 704.0600000000001 USD 704.06

Buy with on orders over $50. See if you qualify

704.06

  • Line configuration
  • Fan Setup

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Powerhouse Racing is happy to offer a solution for those pushing the extremes of the 2JZ engine in the Toyota Supra. Now available from PHR is the Race -20AN Radiator Hose Kit for the 93-98 Toyota Supra Turbo. This is the complete solution for those running large turbos, those producing massive head-lifting power and those who need solutions to their race car cooling systems.

If you ever pressurize your cooling system, the last thing you want is your radiator hose popping off or splitting and throwing water all over the road or track. The PHR Race Radiator Hose Cooling Kit holds pressure of 300 PSI. You can be assured that it won't be what lets go.

When building a cooling system, you need to make sure every part in the system is not a bottleneck. Assembled with -20AN hose and hose ends, the PHR hoses flow a huge amount of fluid.


**Hoses ONLY**

Does not include any waternecks. See info below for additional parts needed.



To complete the -20AN Radiator hose kit, you will need to add the following:

1. PHR Billet Upper Waterneck w/ 20AN Outlet

2. PHR Lower Waterneck Flange Adaptor (Rotator)

                                                                                  - See individual parts below for pricing on these components.


The kit can be used with any fan setup, but we highly recommend PHR's Fan Shroud Kit using IS300 Fans or PHR's Spal Fan Kit. It must be used with an aluminum radiator as well.

Welding the -20AN weld bungs to the radiator will be required.

The PHR Race Radiator Hose Cooling Kit works with the PHR mechanical fuel pump bracket  and is highly recommended whenever switching to a mechanical fuel pump system.

Also fits SC300 with 2JZ-GTE swap

Specifications

Line configuration Stainless braided with Black hose ends or Black braided with Black hose ends
Fan Setup Electric or OEM Mechanical
