Functional
Art
Elevate your vehicle's performance with our top-tier Billet Power Steering Tank, meticulously crafted from premium billet 6061 aluminum for unmatched durability and strength. Designed with both functionality and aesthetics in mind, this power steering tank ensures optimal fluid management and a sleek appearance.
Developed from a need for extra clearance around intake manifolds on the Toyota Supra, the PHR Billet Power Steering Reservoir has turned into a key component in the power steering systems on many different vehicles.
Features and Solutions
Focusing on what's important
Superior Construction
The power steering tank, machined from billet 6061 aluminum, showcases precision engineering and superior craftsmanship. This manufacturing process ensures a high level of detail and a refined finish, resulting in a visually appealing and high-quality component. The use of billet aluminum allows for intricate design features and customization, providing both functionality and a polished aesthetic.
Stainless Steel Filter Element
Features a robust stainless steel filter element. The filter in a power steering system is crucial for maintaining the cleanliness and efficiency of the fluid, preventing contaminants from causing damage to the pump, valves, and other components. By ensuring the fluid remains free of debris and impurities, the filter helps extend the lifespan of the entire power steering system, ensuring smooth and reliable operation. Additionally, a clean system reduces the risk of costly repairs and maintains optimal steering performance.

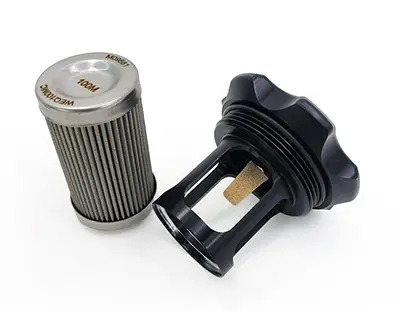

Filter Retention System
The filter element is securely retained by a spring, pressed in place within a precisely machined "cage" integrated into the cap.
Dual Cap Options
Choose between a vented cap for applications requiring ventilation and a sealed cap for systems needing a completely closed environment.
The billet power steering tank offers two distinct cap options, each catering to different system requirements. The vented cap is ideal for applications where pressure relief is necessary, allowing excess air to escape and preventing pressure buildup that could damage the system. This is particularly useful in high-performance or racing environments where temperatures and pressures can fluctuate rapidly.
On the other hand, the sealed cap provides a completely enclosed environment, perfect for systems that require a consistent and controlled pressure without external contamination. This ensures the system remains clean and efficient, making it suitable for daily drivers and off-road vehicles where exposure to dust and debris is a concern.
Finish Options
Available in a sophisticated black anodized finish or a classic machined finish, both offering excellent corrosion resistance. The cap and bottom of the tank are always anodized black, ensuring a uniform and stylish look.
Fittings
Equipped with a -6AN return fitting on the side and a -10AN outlet fitting on the bottom, facilitating easy integration into various power steering systems.

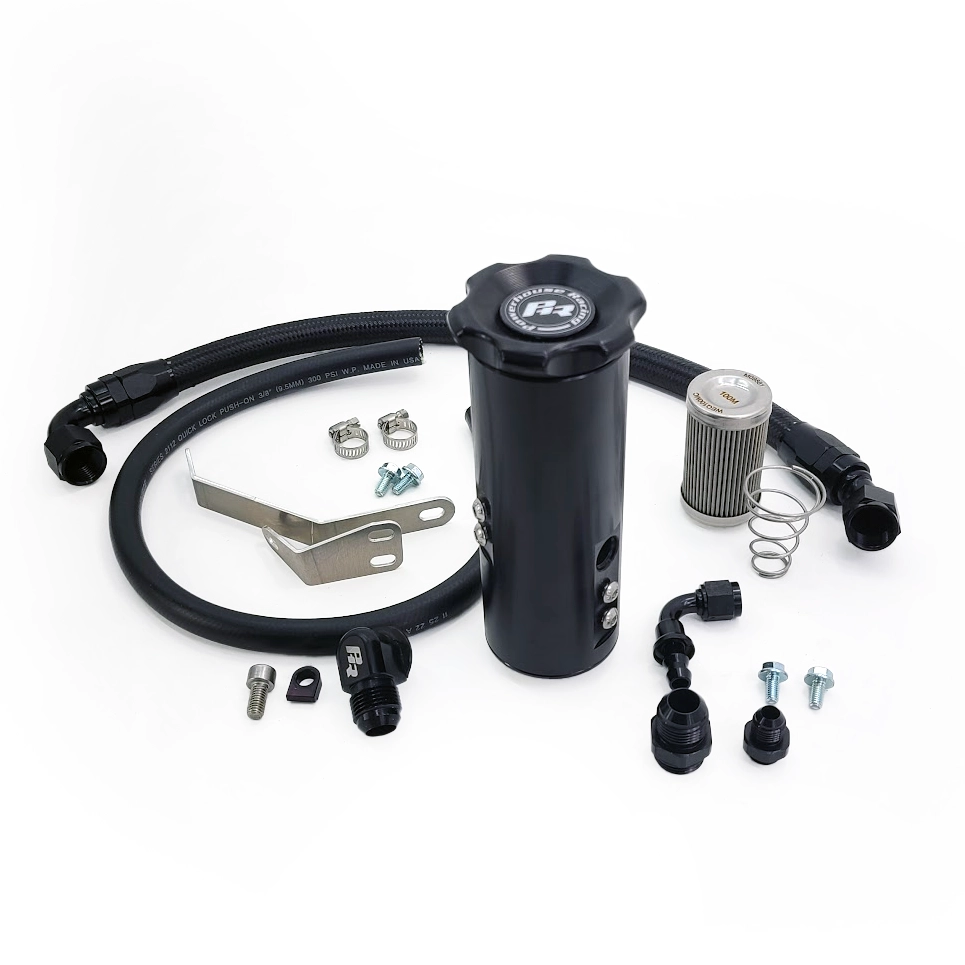

Kit Includes
- PHR Billet Power Steering Tank (includes filter)
- Reservoir Cap, either sealed or vented
- 10AN Reservoir Feed Line to Pump
- 6AN Hose Barb Fitting to connect to factory cooler hard lines
- PHR 10AN Suction Port Fitting
- Mounting Brackets and Hardware
Key Components
Sealed Cap
Provides a completely enclosed environment, perfect for systems that require a consistent and controlled pressure without external contamination. This ensures the system remains clean and efficient, making it suitable for daily drivers and off-road vehicles where exposure to dust and debris is a concern.
Vented Cap
The vented cap is ideal for applications where pressure relief is necessary, allowing excess air to escape and preventing pressure buildup that could damage the system. This is particularly useful in high-performance or racing environments where temperatures and pressures can fluctuate rapidly.
Stainless Filter
Crucial for maintaining the cleanliness and efficiency of the fluid, preventing contaminants from causing damage to the pump, valves, and other components
Suction Port Fitting
The PHR Suction Port Fitting for the power steering pump makes adapting the 10AN line to the pump simple. Featuring infinitely adjustable positioning to make sure it clears your intake manifold.
Featured Media
2JZ Addict Installs the PHR Power Steering Reservoir on his 1000hp Supra Build Project
"We finally fixed the last thing that was standing in the way of installing the direct port system. This thing was super easy and I definitely recommend one if you're running an aftermarket intake manifold, or even if you're not. It looks great, performs well, and is 1000x easier to service when pulling the motor."
Discover moreHow To Install Power House Racing Power Steering Reservoir
Today I go over installing the Power House Racing Power steering reservoir.
Deluxe Power Steering Reservoir Kit by PHR | Install + Review | Castrol Supra
In this Supra Build we unbox, install, and review the Deluxe Power Steering Reservoir Kit for the MKIV Supra by PHR.
Specifications
| Vehicle Fitment | |
|---|---|
| Make | Lexus |
| Model | GS300 (Aristo) |
| Chassis Code | S160, S161 |
| Generation | 2nd Gen |
| Fitment | |
|---|---|
| Engine | 2JZ-GTE, Non VVT-i, 2JZ-GTE, VVT-i, 2JZ-GE, Non VVT-i, 2JZ-GE, VVT-i |
| Product Specs | |
|---|---|
| Material | Aluminum |
| Variants | |
|---|---|
| Finish | Machined finish or Black edition |
| Cap Style | Sealed or Vented |
| Line configuration | Stainless braided with Black hose ends or Black braided with Black hose ends |
