Adapting to the Valve Covers
No matter if you're running OEM our a set of our Billet Valve Covers, we have a way for you to adapt a -12AN fitting. Let PHR help your engine BREATHE!
-12AN Threaded PCV
For OEM 2JZ-GE Valve Covers. On the intake side, if you have a threaded style PCV, simply remove the PCV. Thread this in place
-10ORB to -12AN Fitting
For PHR Billet Valve Covers. These thread into the PHR Vertical Breather Adapters which bolt onto the valve covers
-12AN PCV Grommet
For OEM 2JZ-GTE or OEM 2JZ-GE Valve Covers. On the intake side, if you have a grommet style PCV, simply remove the PCV, and push this in.
-12AN Press-In, Intake
For OEM 2JZ-GTE or OEM 2JZ-GE Valve Covers. Simply pull existing nipple on the exhaust side, or PCV and Grommet from the intake side. Press this fitting in place..
-12AN Press-In, Exhaust
For OEM 2JZ-GTE or OEM 2JZ-GE Valve Covers. Simply pull existing nipple on the exhaust side, or PCV and Grommet from the intake side. Press this fitting in place..

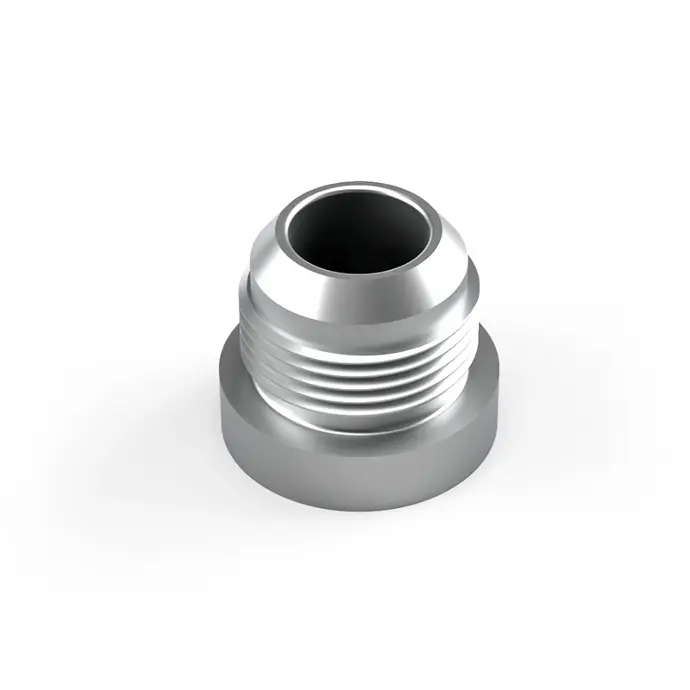

-12AN Weld Bung
For OEM 2JZ-GTE Valve Covers. These can be welded directly to 2JZ-GTE Valve covers. We don't recommend these for the 2JZ-GE.

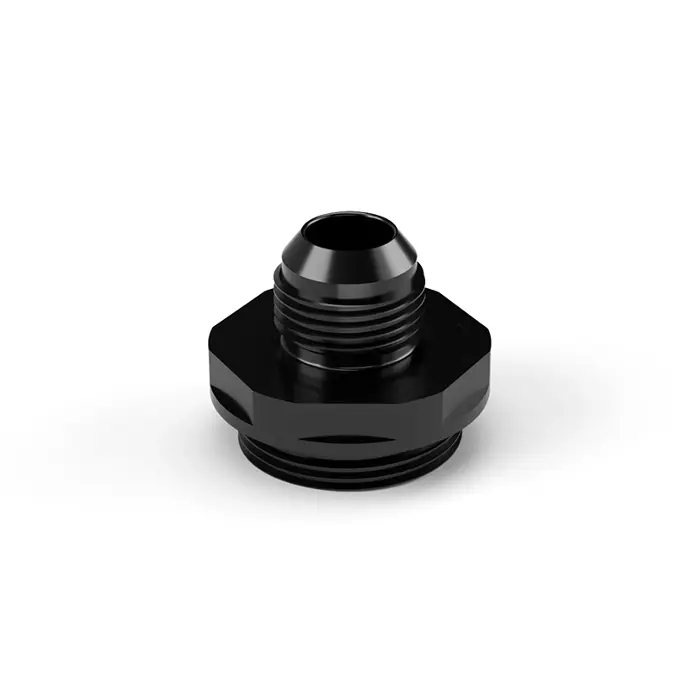

-20ORB to -12AN Fitting
For PHR Rigid Ultralight Valve Covers. These thread into the large ports on the rear of the valve covers.
Specifications
Vehicle Fitment | |
---|---|
Make | Toyota |
Model | Supra |
Chassis Code | A80 |
Generation | MKIV (Mark 4) |
Trim | Turbo, Naturally Aspirated (NA) |
Fitment | |
---|---|
Intake Side Valve Cover Fitting | None or -12AN Weld Bung or -12AN Press-In Fitting or -12AN Threaded Adapter or -12AN PCV Grommet Fitting or -12ORB to -12AN Adapter or -20ORB to -12AN Adapter |
Exhaust Side Valve Cover Fitting | None or -12AN Weld Bung or -12AN Press-In Fitting or -12ORB to -12AN Adapter or -20ORB to -12AN Adapter |
Engine | 2JZ-GTE, Non VVT-i, 2JZ-GTE, VVT-i, 2JZ-GE, Non VVT-i, 2JZ-GE, VVT-i |
Variants | |
---|---|
LHD or RHD | LHD or RHD |

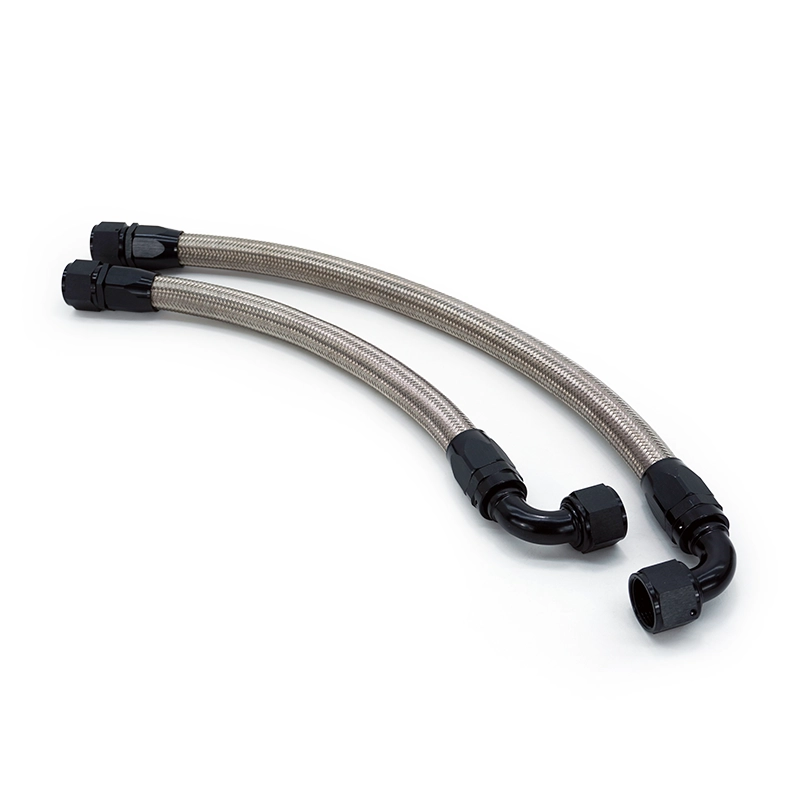

Line configuration | Stainless braided with Black hose ends or Black braided with Black hose ends |
Valve Covers | OEM 2JZ-GTE Valve Covers or OEM 2JZ-GE Valve Covers or PHR Flex Billet Valve Covers or PHR Rigid Ultralight Billet Valve Covers |
Uncategorized | |
---|---|
Breather Tank | Gen 2 or XTM |
