PHR Triple Walbro 400 and 525 LPH Fuel Pump Hanger for SC300

PHR 03081211
https://www.powerhouseracing.com/web/image/product.template/15357/image_1920?unique=26c251a

676.00 676.0 USD 676.00

676.00

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

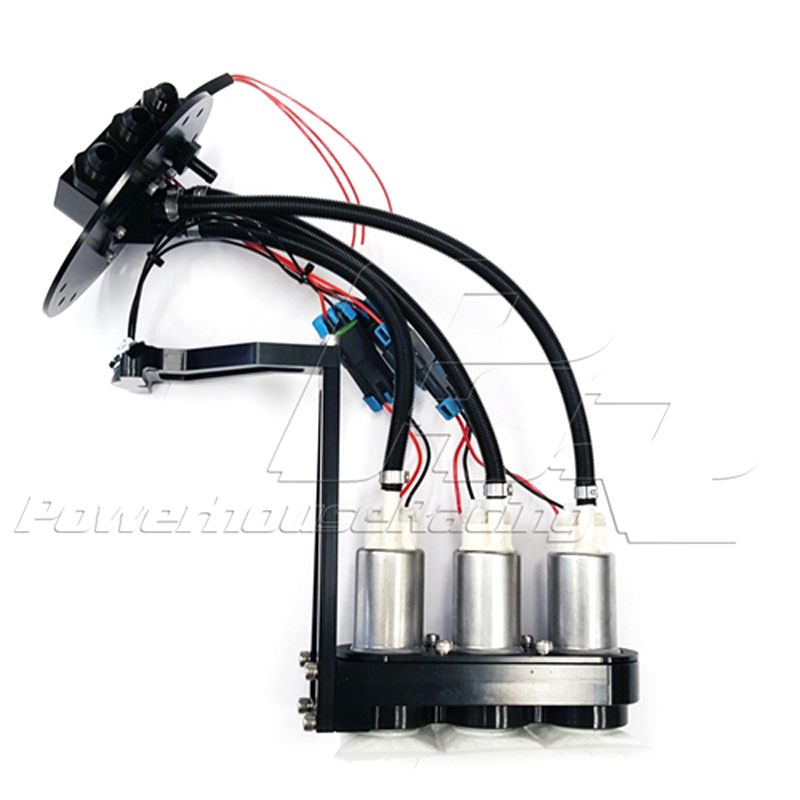

    PHR INTRODUCES THE WORLDS FIRST AND ONLY TRIPLE WALBRO 450 (aka 485) FUEL PUMP HANGER FOR LEXUS SC300!


    With a Flow Rating of over 800 lph or 267 Gallons per hour at 90psi, this pump setup is good for over 1900hp on Race Gas, 1400hp on E85!!!


    Powerhouse Racing is proud to offer a legitimate solution for a hanger for the SC300, SC400, Soarer Platform. Use it to install 1, 2 or 3 fuel pumps. For too long SC300 owners have had to come up with compromises in fuel systems. PHR is the first to tackle this problem head on with our dual bosch hanger and now further that trend with the Triple Walbro 450 fuel pump hanger.


    Compatible with Walbro 450 or Walbro 525 pumps


    This triple pump hanger features:

    • CNC machined 6061 aluminum construction
    • Exact fit to the OEM tank
    • All applicable hardware
    • Proprietary sealed circular connectors potted with E85-safe epoxy
    • All PHR Hangers use Mil-Spec M22759/16 Tefzel wire.
    • Pumps can be triggered individually in staged sequence (and should be).
    • Anodized black! This will ensure our hangers can be used permanently in alcohol / methanol / E85
    • fuels with no concerns of long term corrosion.
    • Teflon Hoses, fully compatible with any fuel type.


    The hanger will come standard with a single -8AN outlet, and a -6AN return fitting. There are two outlet ports for those who are wanting to run dual feed lines, one of which will come with a plug in it. You can add additional fittings below for running different line configurations and sizes.
