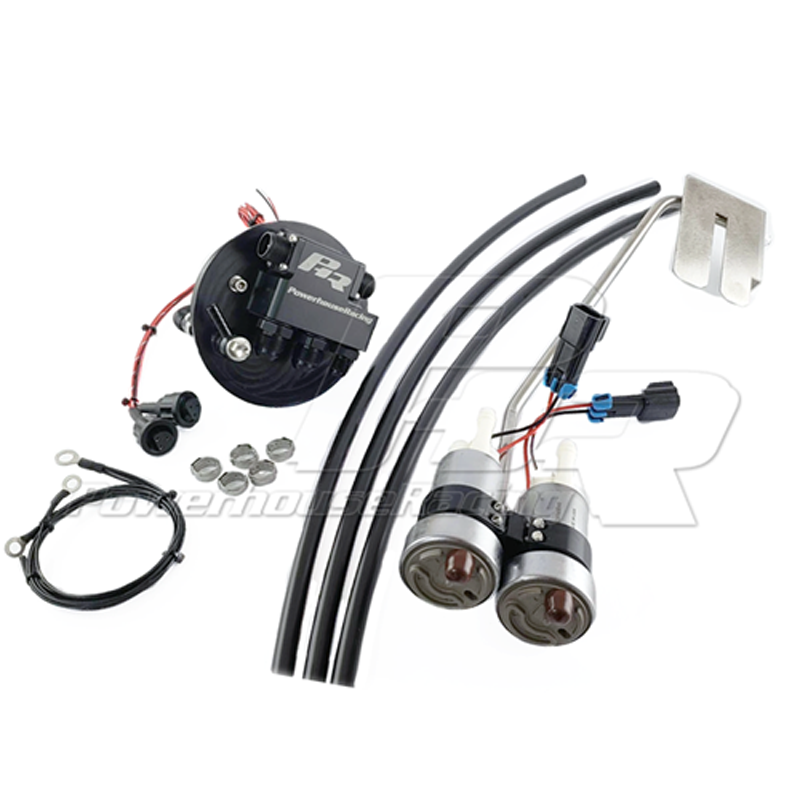

PHR V3 CNC Dual Walbro 485 Fuel Pump Hanger for S14, S15,R33, R34

PHR 02061208
https://www.powerhouseracing.com/web/image/product.template/15381/image_1920?unique=1081364
(0 review)

695.00 695.0 USD 695.00

Buy with on orders over $50. See if you qualify

695.00

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Solve your fuel delivery woes with our new and improved V3 hanger for a Nissan S14, S15, R33, R34! In past versions we provided you with a only fuel bulkhead, you needed to solve your in tank pump bracketry. This is now a complete solution, including bracketry for your pumps and fuel level sender leaving you with a hassle free install.

Compatible with Walbro 255, Walbro 450, Walbro 525 or equivalent pumps.


This triple pump hanger features:

  • CNC machined 6061 aluminum construction
  • Exact fit to the OEM tank
  • All applicable hardware
  • Proprietary sealed circular connectors potted with E85-safe epoxy
  • All PHR Hangers use Mil-Spec M22759/16 Tefzel wire.
  • Pumps can be triggered individually in staged sequence (and should be).
  • Anodized black! This will ensure our hangers can be used permanently in alcohol / methanol / E85 fuels with no
  • concerns of long term corrosion.
  • Teflon Hoses, fully compatible with any fuel type.


integrated jet pump design makes sure you still maintain full-capacity usage of your saddle-style gas tank.

Bulkhead wiring is provided not only for pump power but also your fuel level sender. So you maintain all OEM functionality to your dash gauges.
