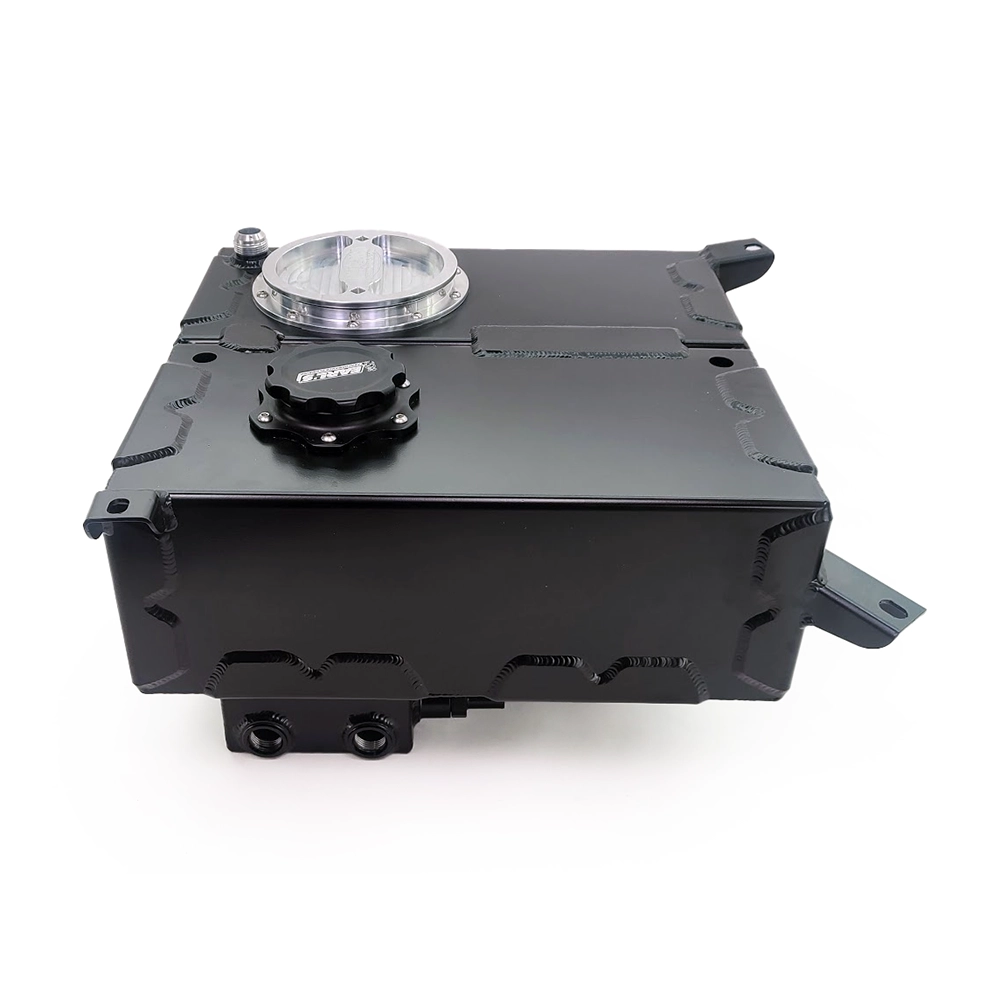

Fuel Cell Features
Focus on the fire
Billet Fuel Tank Lid
Engineered from billet aluminum for strength and durability, ensuring a solid seal and robust performance in extreme conditions.
Dual -12ORB Fuel Outlets
High-flow fuel outlets ensure ample fuel delivery for even the most demanding setups.
Baffled Fuel Sump
Keep your fuel stable and prevent sloshing with a baffled sump designed to keep fuel delivery consistent during hard launches.
High Flow Drain Valve
The PHR Drain Valve allows you to quickly remove the fuel. This is great for vehicles running methanol who do not let methanol sit in the fuel system during storage or transportation, causing corrosion and damage to fuel components.
Equipped with a 3/4" barb, this allows for quickly connecting a hose to make for a spill free fuel removal.
Ice Tank Features
Focus on the ice
Billet Ice Tank Lid
CNC Machined Ice Tank Like with a 6" opening allows for easily putting more ice into the tank.
Ice Tank Sump Filtration
The sump's perforations allow water to flow freely while keeping ice chunks out, keeping the pump from locking up.
High Flow Drain Valve
The same drain valve is also used on the ice tank. This allows for quickly removing melted water from the tank between rounds. The 3/4" barb allows for quickly connecting a hose for a spill free removal, keeping your pit area dry.
Additional Features
More Deets
5 Gallon Capacity
Each tank, both fuel and ice, has approximately a 5 gallon capacity.
Anodized Internally for Corrosion Protection
The inside of the tanks are anodized to protect against corrosion, ensuring longevity and reliability when using aggressive fuels or water-methanol mixtures.
Powder-Coated Satin Black Finish
Finished in a sleek satin black powder coat for both durability and a clean look under the car.
Extra Weld Braces
Reinforced with additional weld bracing to prevent cracking under high-stress conditions, ensuring your system stays strong even through extreme drag racing conditions.
Optional Water Pump:
The combination tank is sold without a water pump, but you can add one to your order, or contact us for different water pump options tailored to your needs.
Specifications
Vehicle Fitment | |
---|---|
Make | Toyota |
Model | Supra |
Generation | MKIV (Mark 4) |
Chassis Code | A80 |
Trim | Turbo, Naturally Aspirated (NA) |
Product Specs | |
---|---|
Material | Aluminum |
Fuel Tank Capacity | 5 Gallons |
Ice Tank Capacity | 5 Gallons |
Finish | Matte Black Powder Coat |
