PHR Triple Walbro 400 (485) Fuel Pump Hanger for MKIV Supra

PHR 01011224
https://www.powerhouseracing.com/web/image/product.template/15355/image_1920?unique=aa7cc17

676.00 676.0 USD 676.00

676.00

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    PHR INTRODUCES THE WORLDS FIRST TRIPLE WALBRO 485/525 FUEL PUMP HANGER FOR THE MKIV SUPRA!

    With a Flow Rating of over 800 LPH or 267 Gallons per hour at 90psi, this pump setup is good for over 1900hp on Race Gas or 1400hp on E85!!!

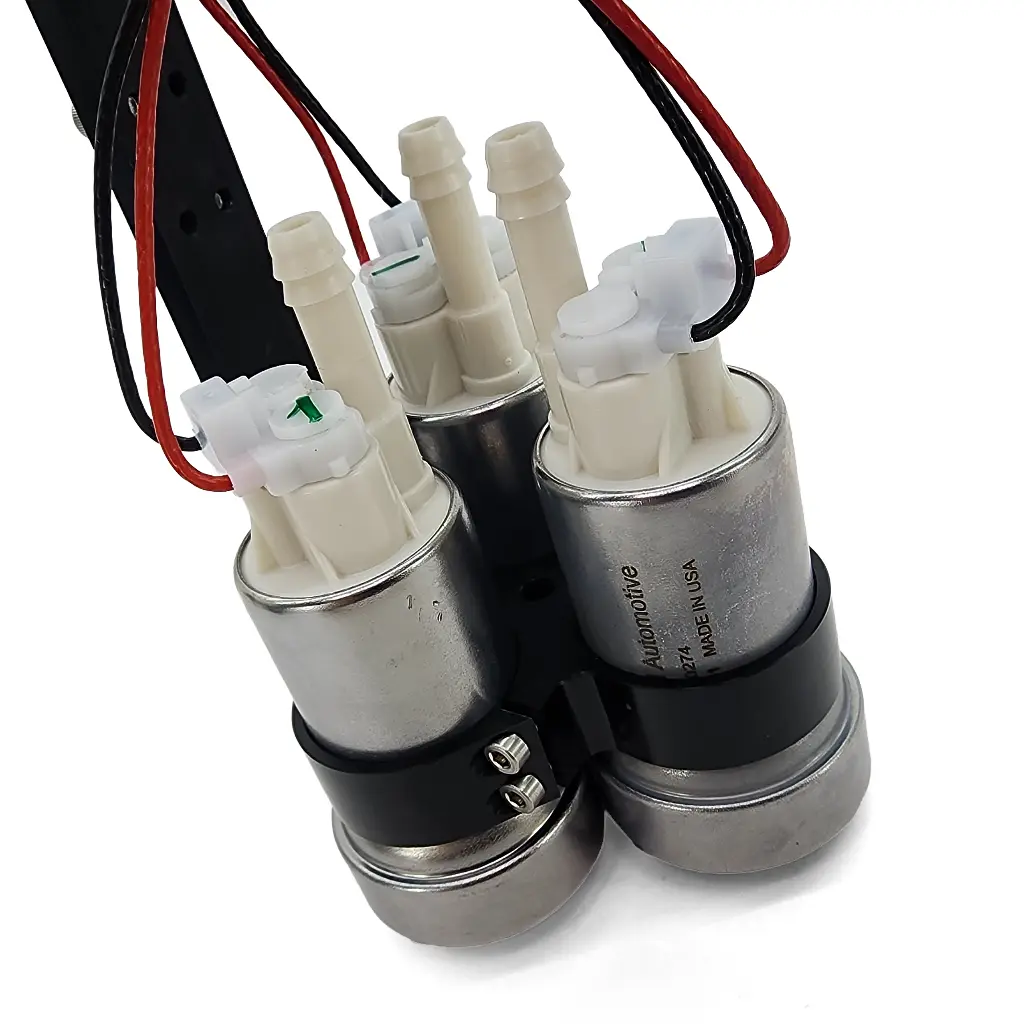

    Use this hanger to install 1, 2 or three fuel pumps. Compatible with the Walbro 255, Walbro 450, Walbro 525 or equivalent fuel pumps.

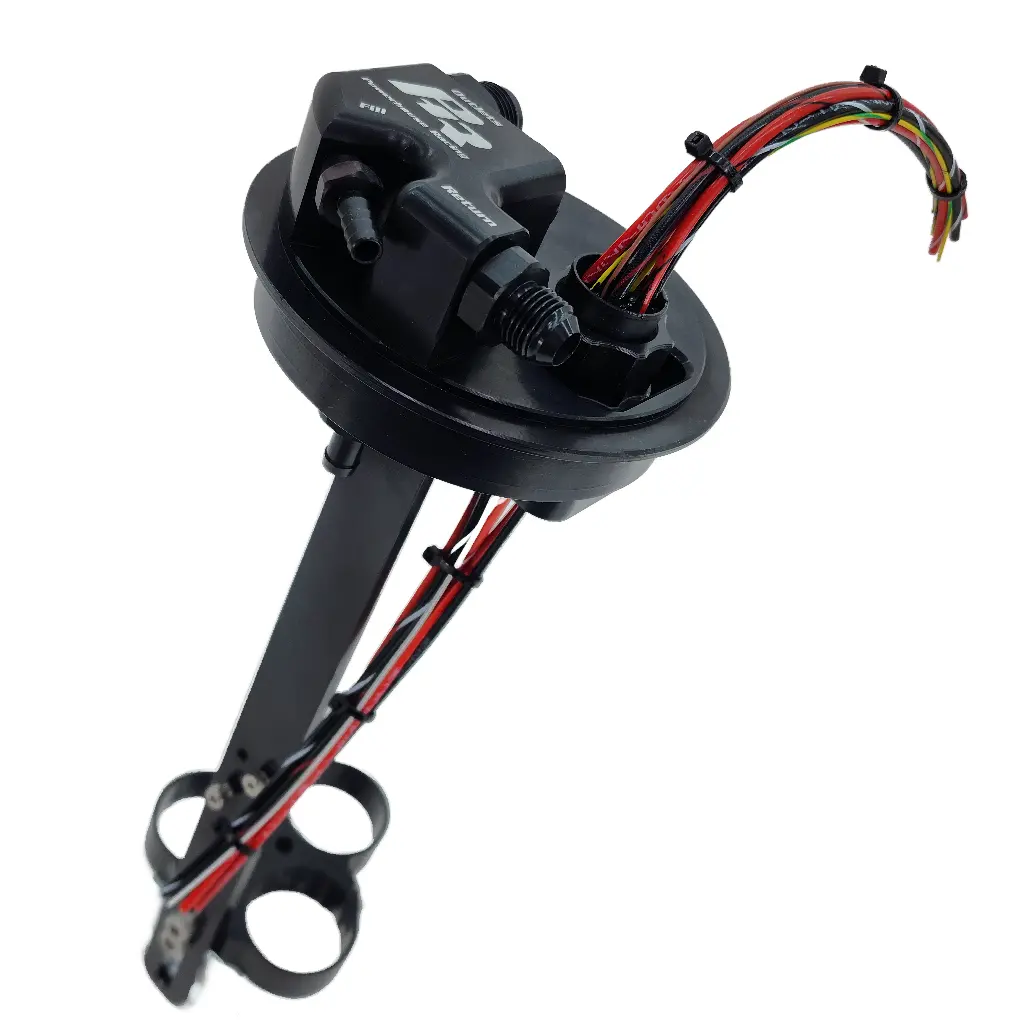

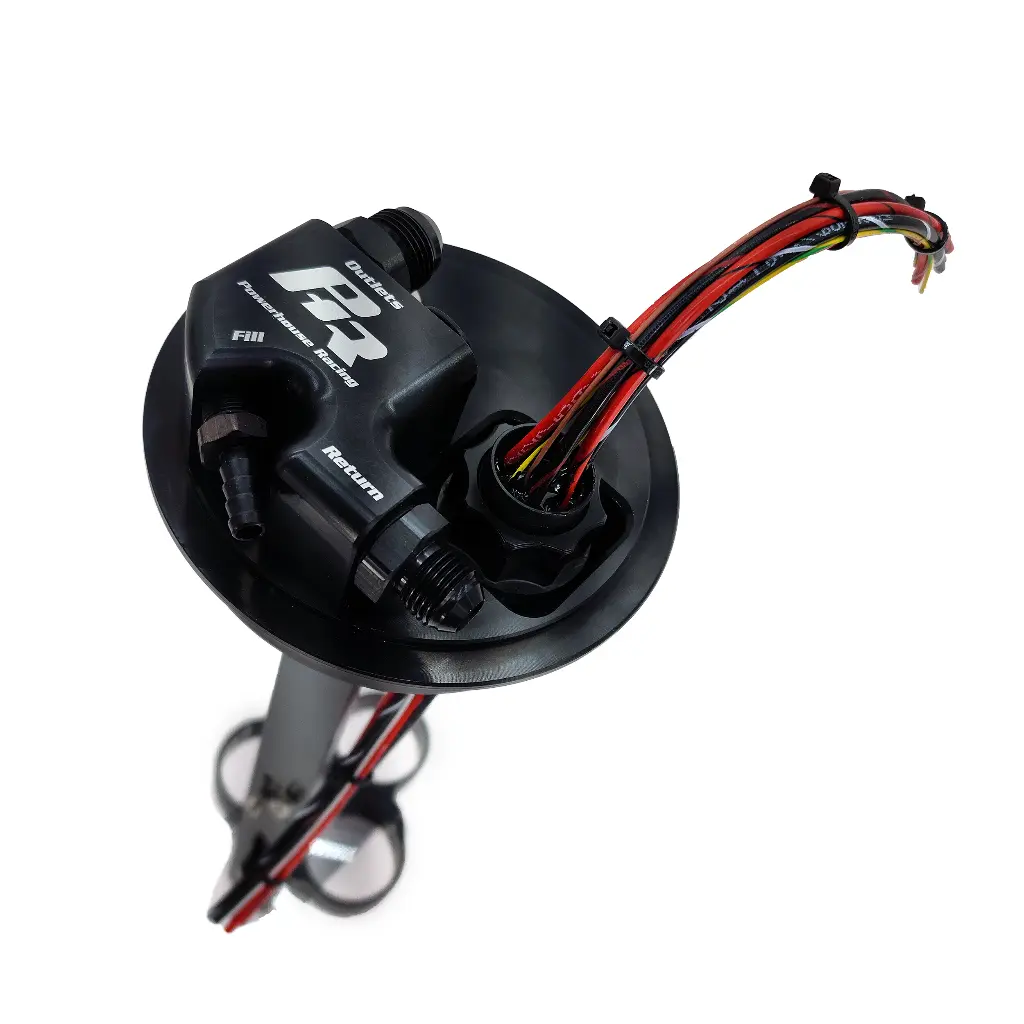

    This triple pump hanger features:
     - CNC machined 6061 aluminum construction
     - Exact fit to the OEM tank

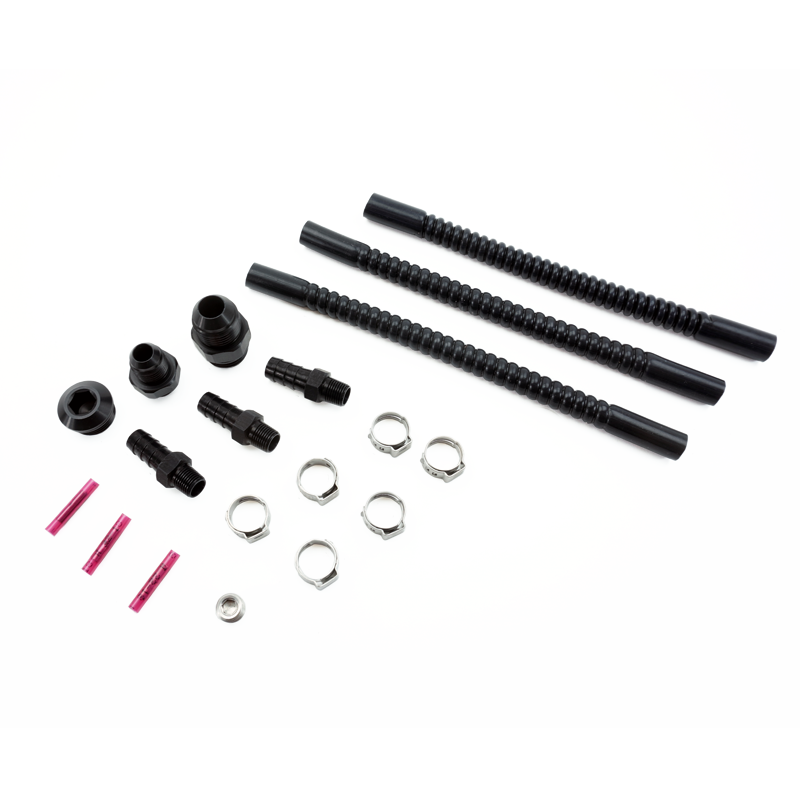

     - All applicable hardware
     - Proprietary sealed circular connectors potted with E85-safe epoxy
     - All PHR Hangers use Mil-Spec M22759/16 Tefzel wire.
     - Pumps can be triggered individually in staged sequence (and should be).
       Anodized black! This will ensure our hangers can be used permanently in alcohol / methanol / E85       fuels with no concerns of long term corrosion.
     - Teflon Hoses, fully compatible with any fuel type.

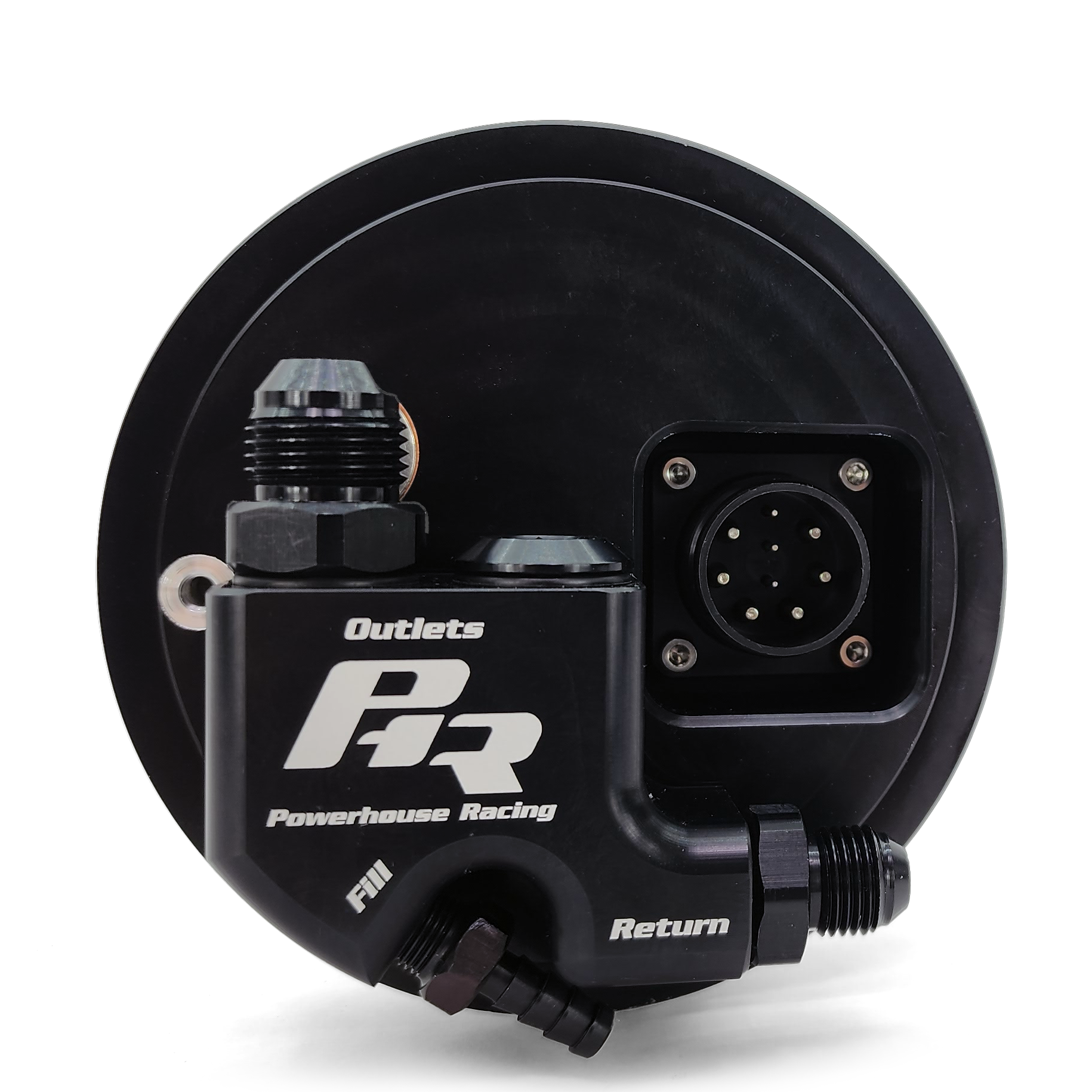

    The hanger will come standard with a single -8AN outlet, and a -6AN return fitting. There are two outlet ports for those who are wanting to run dual feed lines, one of which will come with a plug in it.

    Check out the installation video from Pure Function:
