3-IN-1 Solution

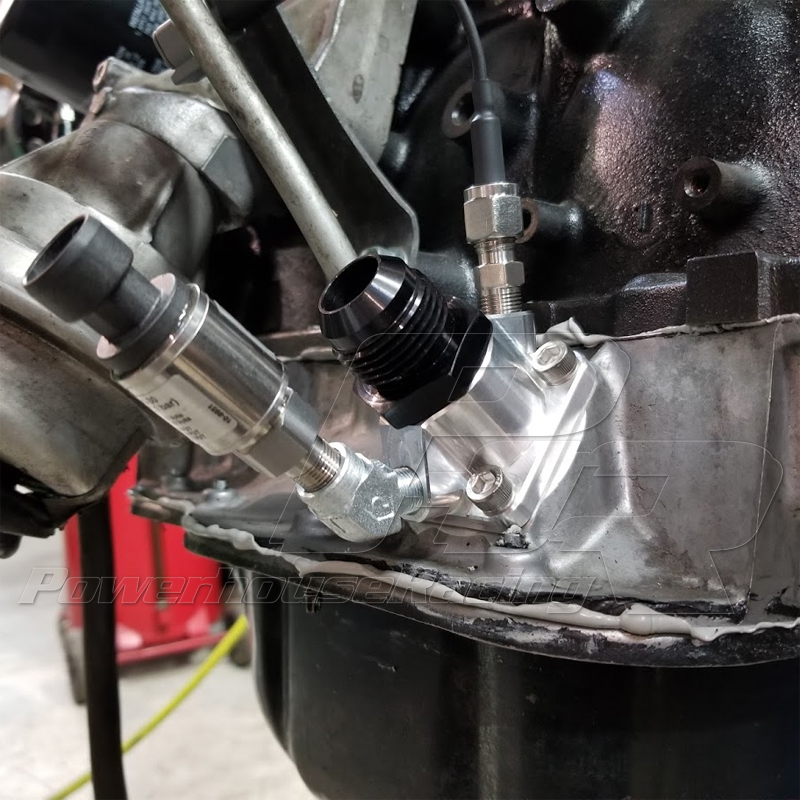

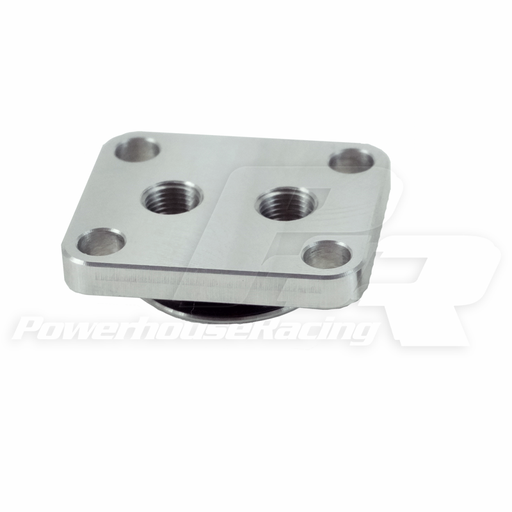

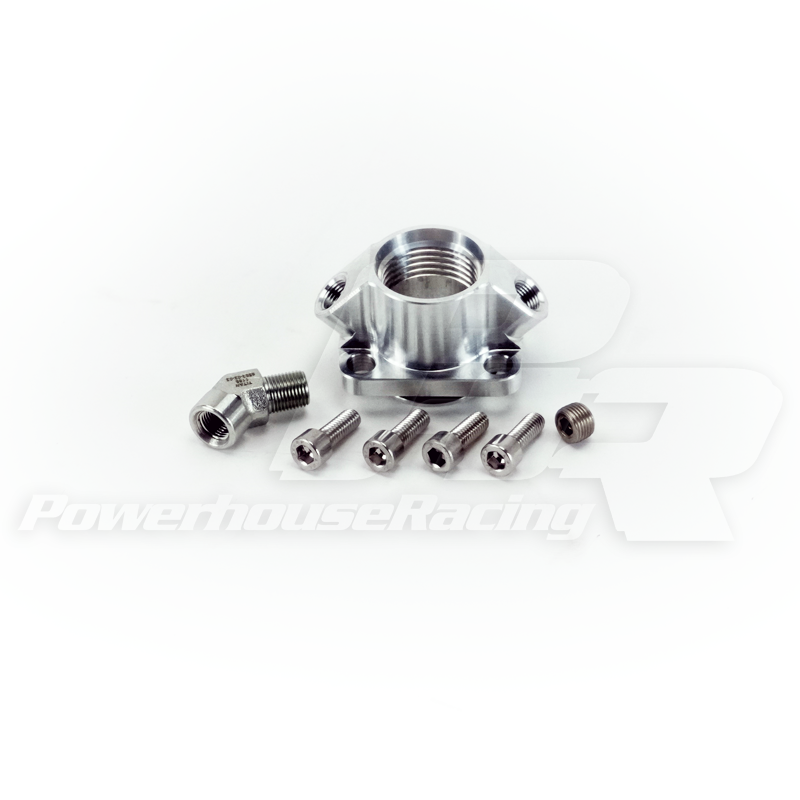

The PHR Combination Adapter is a compact, multi-function solution designed to simplify your 2JZ engine build. With three critical features integrated into a single billet fitting, this adapter provides a clean, efficient way to monitor engine vitals and manage crankcase pressure.

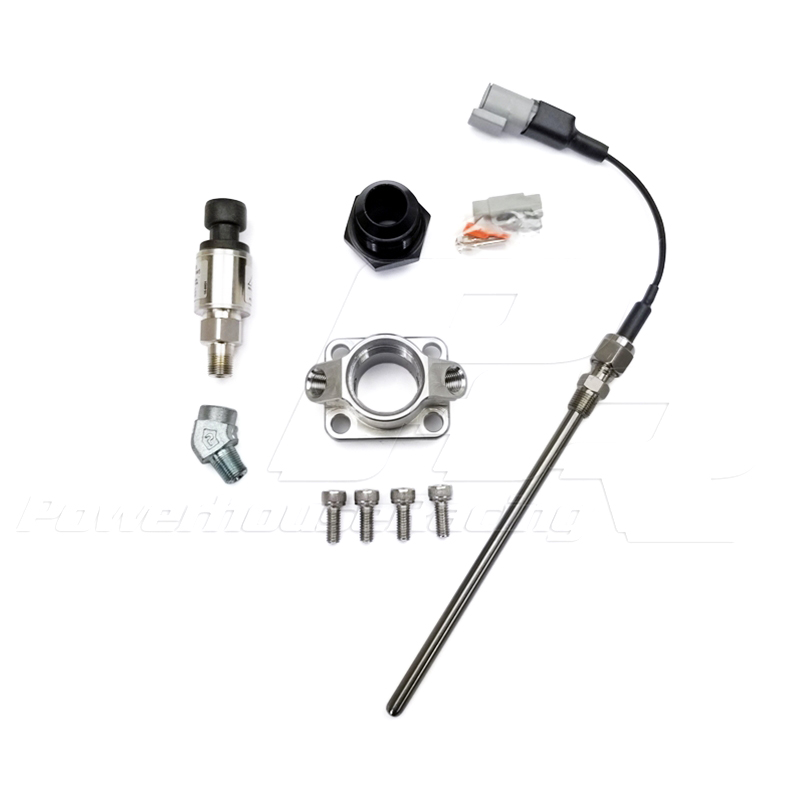

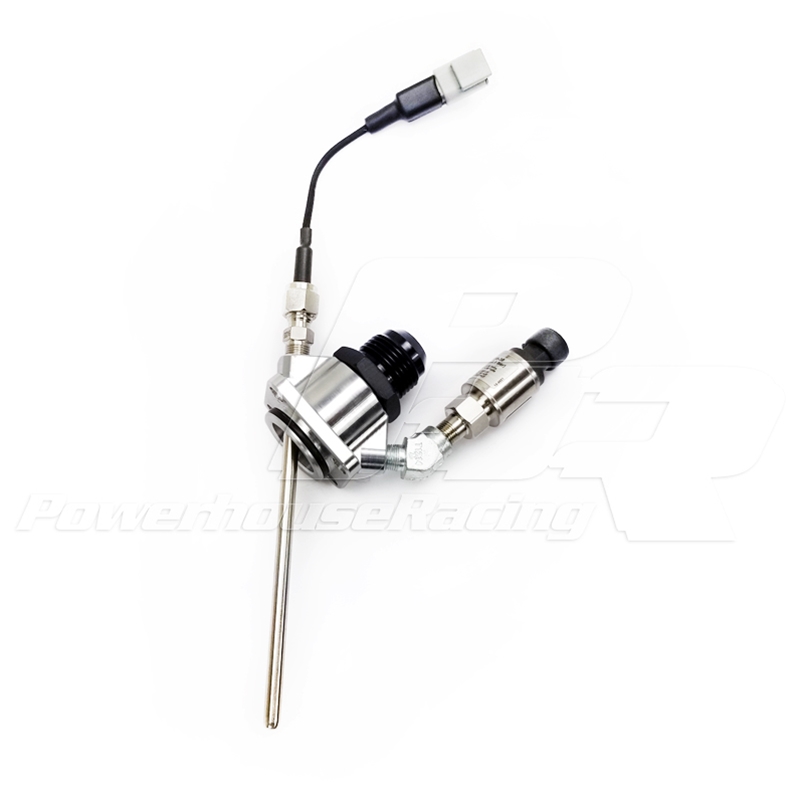

3-In-1 Functionality
✅ Oil Temperature Sensor Port
Allows for direct installation of an oil temp sensor to monitor oil temps in real time—a crucial metric for high-performance engines.
✅ Crank Case Pressure Sensor Port
Lets you install a crank case pressure sensor for valuable insight into engine blow-by and overall health.
✅ -12 ORB Port
Ideal for use as a crank case breather outlet or as a return line for drain-back from a catch can. The -12 ORB threading accepts common performance fittings and hose sizes.
Fitment Notes:
Fully compatible with Rear Sump oil pans
Front Sump pans require additional modification for full functionality:
- AC compressor must be removed.
- Oil pan baffling may need to be modified to allow clearance for the temperature probe.
- Note: Both the crank case sensor and -12 ORB breather ports remain usable with the AC compressor installed on Front Sump pans. The conflict is the oil temperature probe will hit the AC compressor.
IMPORTANT WARNING:
❗This adapter requires removal of the OEM oil level sensor.
We highly recommend installing an oil pressure sensor to monitor engine health and protect your investment. PHR offers multiple solutions to add oil pressure monitoring to your setup.
