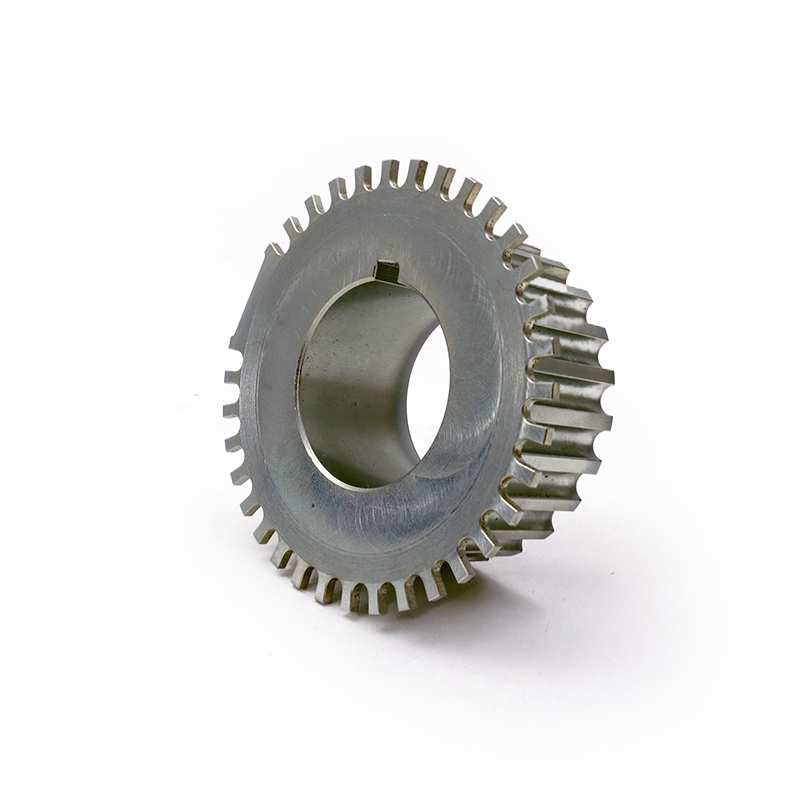

PHR One Piece Billet Timing Belt Drive Gear for 2JZ-GTE (36-2 tooth pickup wheel)

PHR 01011080
https://www.powerhouseracing.com/web/image/product.template/15196/image_1920?unique=edb67f0
(0 review)

125.10 125.10000000000001 USD 139.00

Buy with on orders over $50. See if you qualify

139.00

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features and Solutions

Focusing on what's important

CNC Machined

The Powerhouse Racing One Piece Billet Timing Belt Drive Gear for the VVT-i 2JZ-GTE features a one-piece design and is CNC machined from a billet steel the maintains the magnetic properties of the OEM VVT-i crank gear.

Lighter Weight

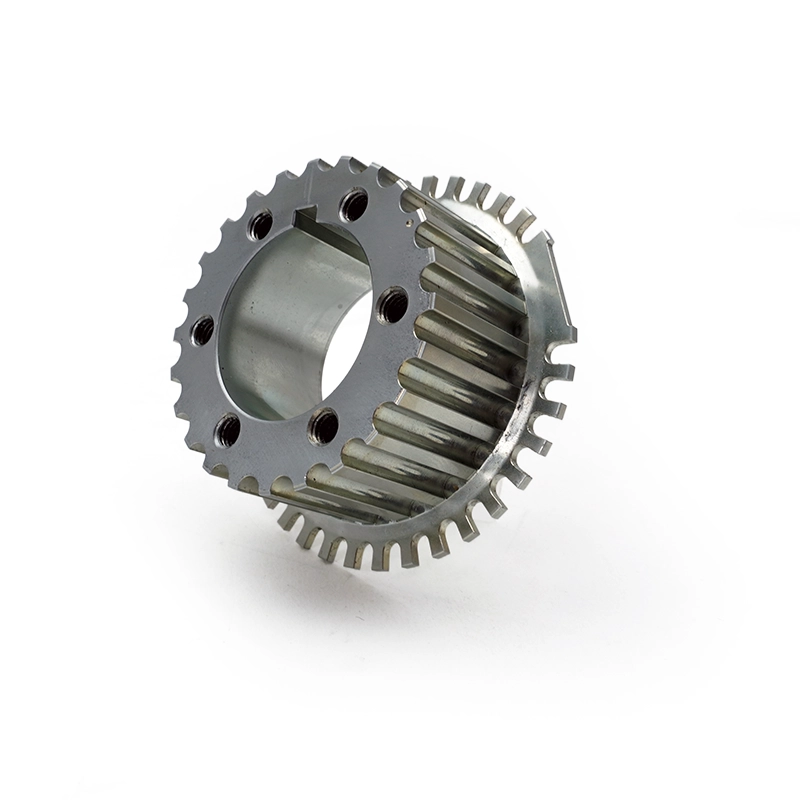

This timing belt drive gear features lightening holes on both the front and the rear of the gear to keep it as light as possible

Upgrade from 12 tooth

This is a common upgrade for cars with aftermarket ECU's. When comparing the 36-2 tooth gear to the 12 tooth version, the 36-2 tooth gear offers better crank shaft position resolution for more precise ignition and fuel injection timing.



Tooth Edge

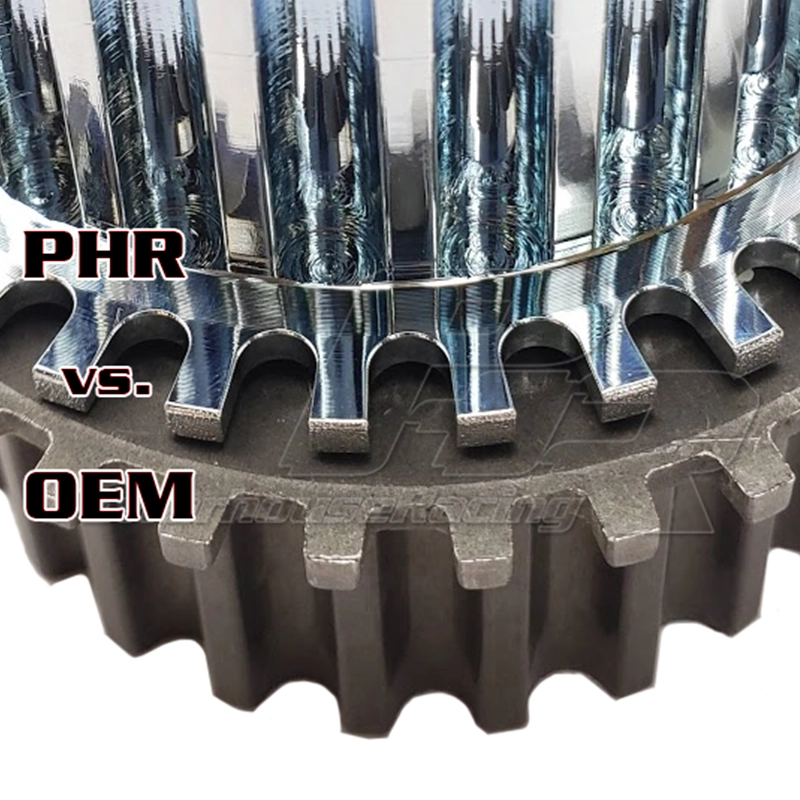

Compared to OEM, the edges of the PHR gears teeth are more precisely machined with a better square shape to aid in tooth edge pickup for the ECU. This can help with earlier timing sync on cranking.

No more broken teeth

The PHR timing hear is less brittle than the OEM gear. If you were to accidentally drop it, the teeth are not likely to break off like the OEM gear.

AKA

Also known as:

  • Timing Gear
  • Drive Gear
  • VVT-i Crank Gear
  • VVT-i Timing Gear
  • 36-2 Gear
  • Lower Timing Gear
