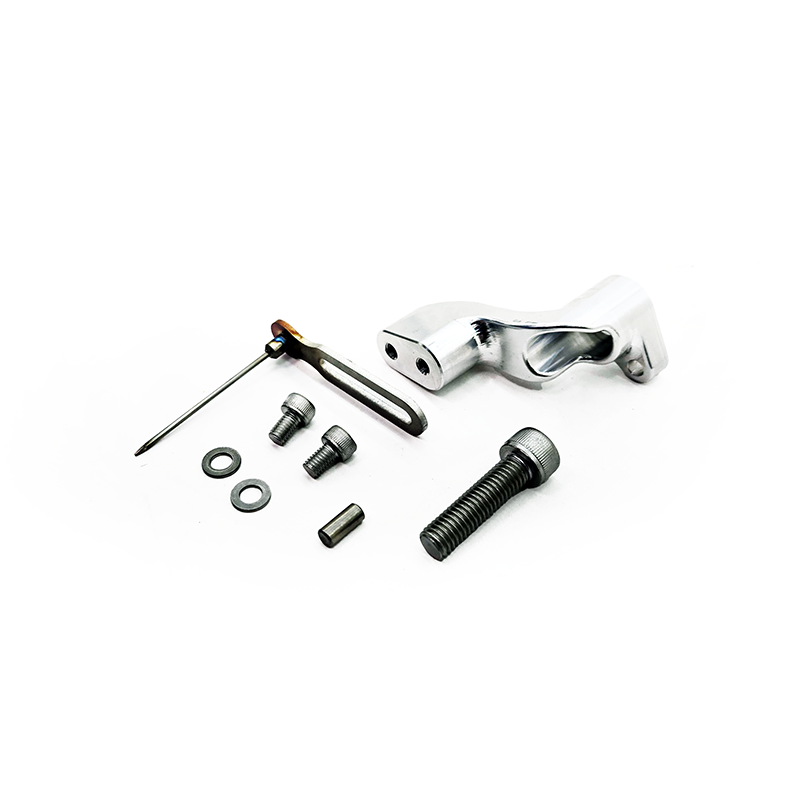

PHR Adjustable Timing Pointer
Precision Timing for Serious Builds

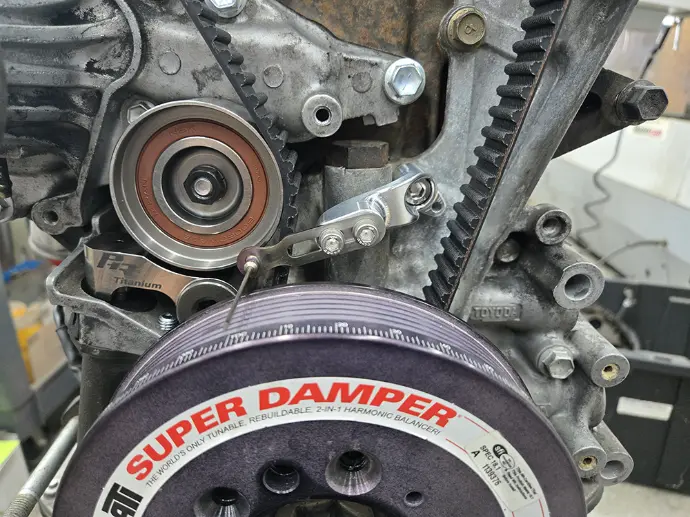

When you’re running a dedicated race engine without the factory front timing cover, accurate ignition timing becomes a manual job—and PHR has your solution. The PHR Adjustable Timing Pointer is designed specifically for 2JZ engines in motorsports applications, where the stock timing reference is no longer usable. Precision-machined from billet aluminum, this bracket and pointer setup allows you to set your timing reference exactly where you need it
Features
PHR Adjustable Timing Pointer for 2JZ Engines
Use Case
Race engines not running a front timing cover
Damper Compatibility
Works with OEM and oversized crank dampers (such as ATI)
dowel
A dowel pin is required to prevent rotation—customer must drill a dowel hole during install
adjustable
Pointer position is adjustable—must be set manually during installation using TDC reference
installation
Single bolt installation
Engine Compatibility
Toyota 2JZ-GTE and 2JZ-GE
Specifications
| Vehicle Fitment | |
|---|---|
| Make | Lexus, Toyota |
| Model | GS300 (Aristo), IS300 (Altezza), Supra, SC300 (Soarer) |
| Chassis Code | A80, Z30, Z31, Z32, S160, S161, S147, CE10, XE10 |
| Generation | 1st Gen, 2nd Gen, MKIV (Mark 4) |
| Trim | Turbo, Naturally Aspirated (NA) |
| Fitment | |
|---|---|
| Engine | 2JZ-GTE, Non VVT-i, 2JZ-GTE, VVT-i, 2JZ-GE, Non VVT-i, 2JZ-GE, VVT-i |
| Product Specs | |
|---|---|
| Material | Stainless steel, Aluminum |
