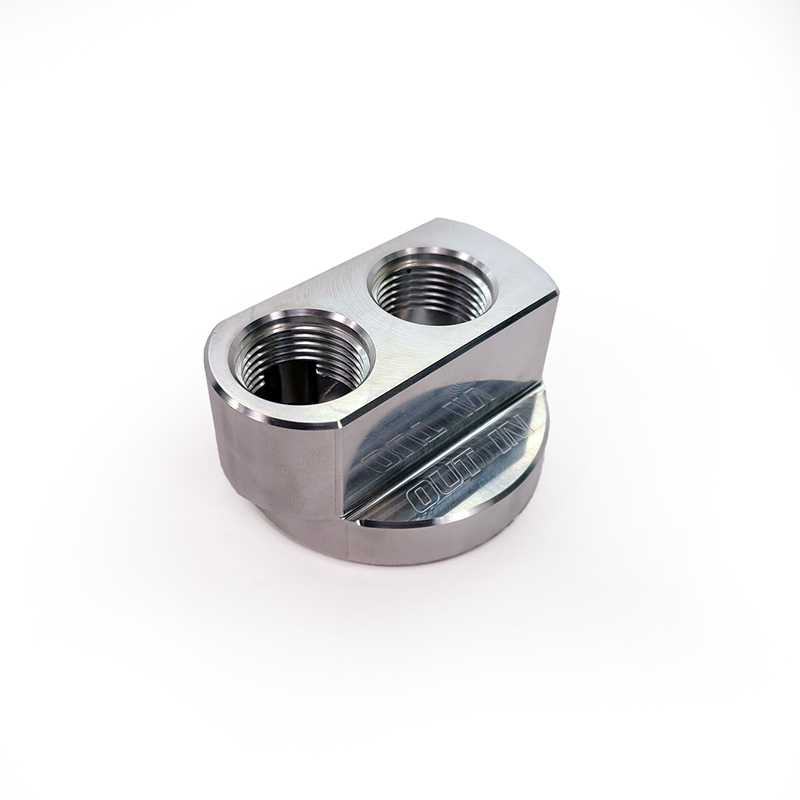

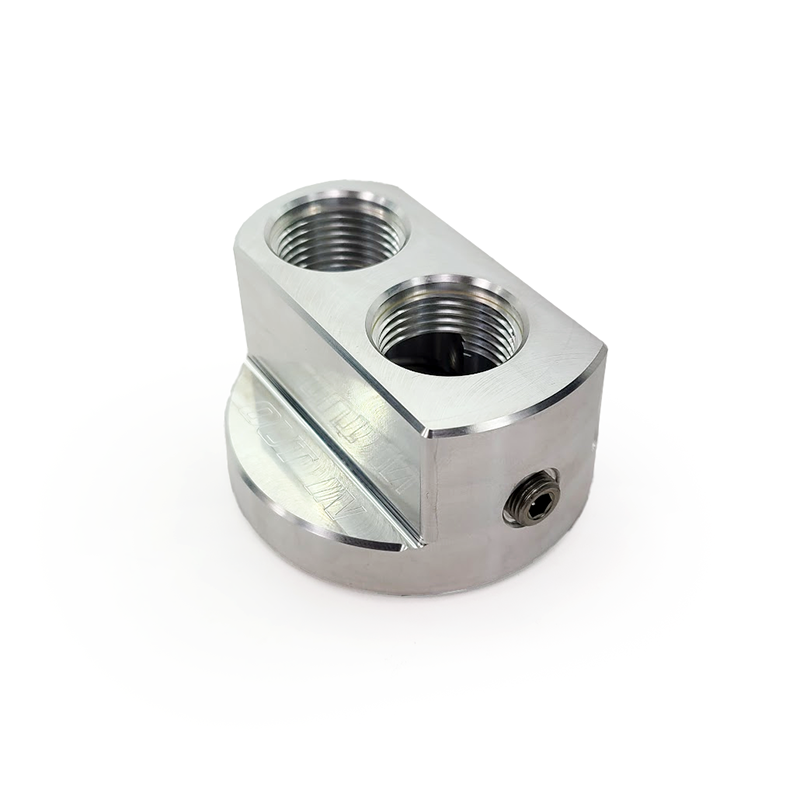

PHR Billet Block Adapter for Oil Filter Relocation, -12 ORB ports

PHR 01011054
https://www.powerhouseracing.com/web/image/product.template/14893/image_1920?unique=3a45da0
(0 review)

148.50 148.5 USD 148.50

Buy with on orders over $50. See if you qualify

148.50

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Part of PHR's popular XTM Oil Filter Relocation Kit, the Billet Block Adapter, is the necessary piece for anyone designing their own oil filter relocation kit.

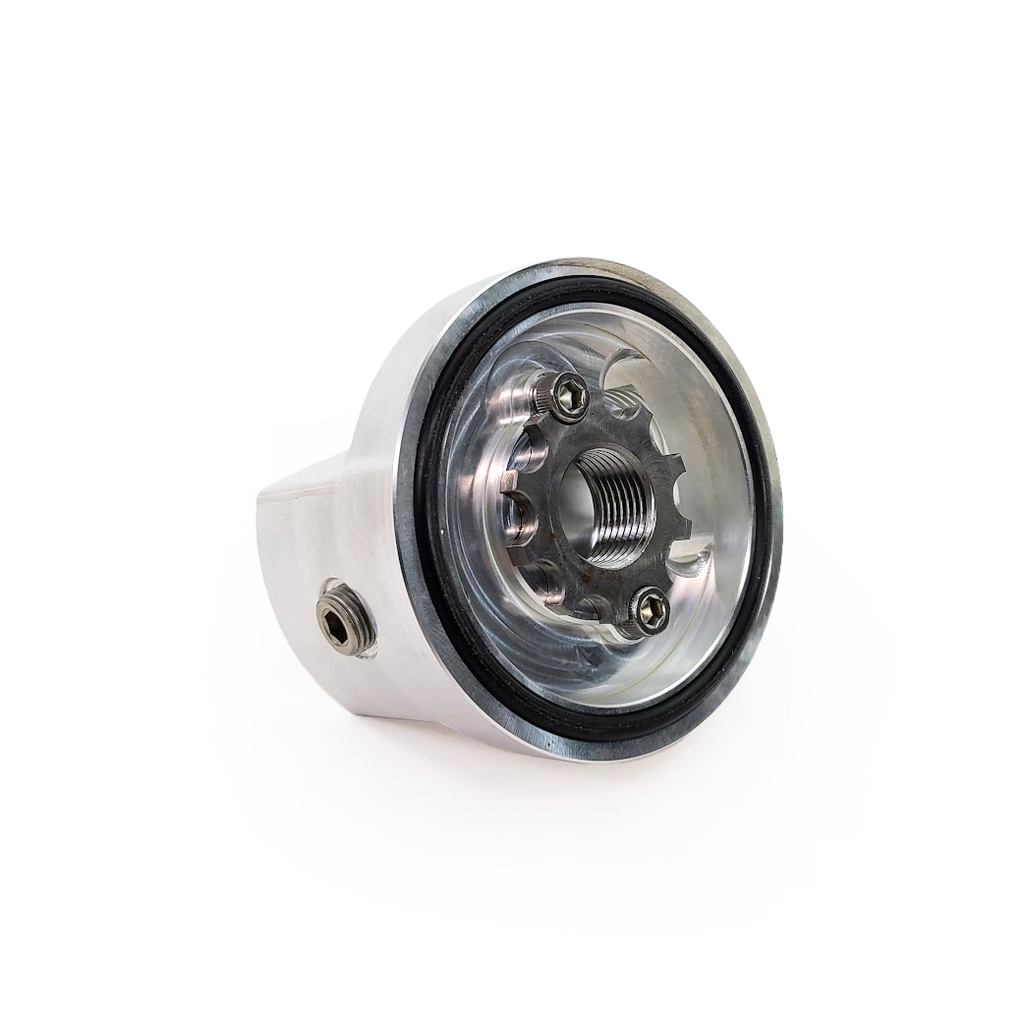

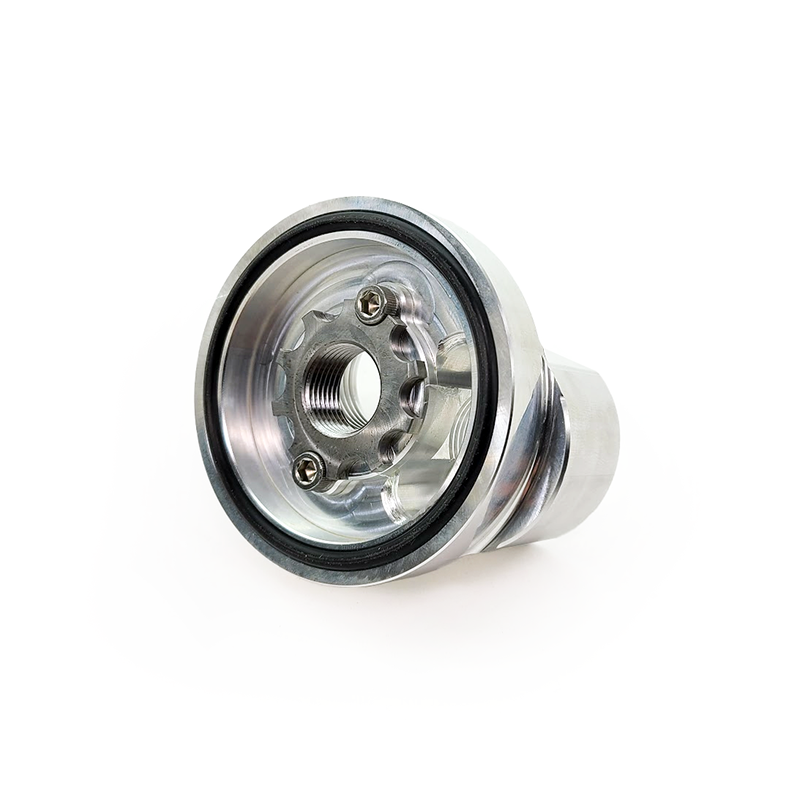

Machined Aluminum with a threaded steel positioner allows you the freedom to get this set to the exact rotation needed for your line direction. Simply remove the locking bolts and thread it inwards or outward to change the clocked degree.

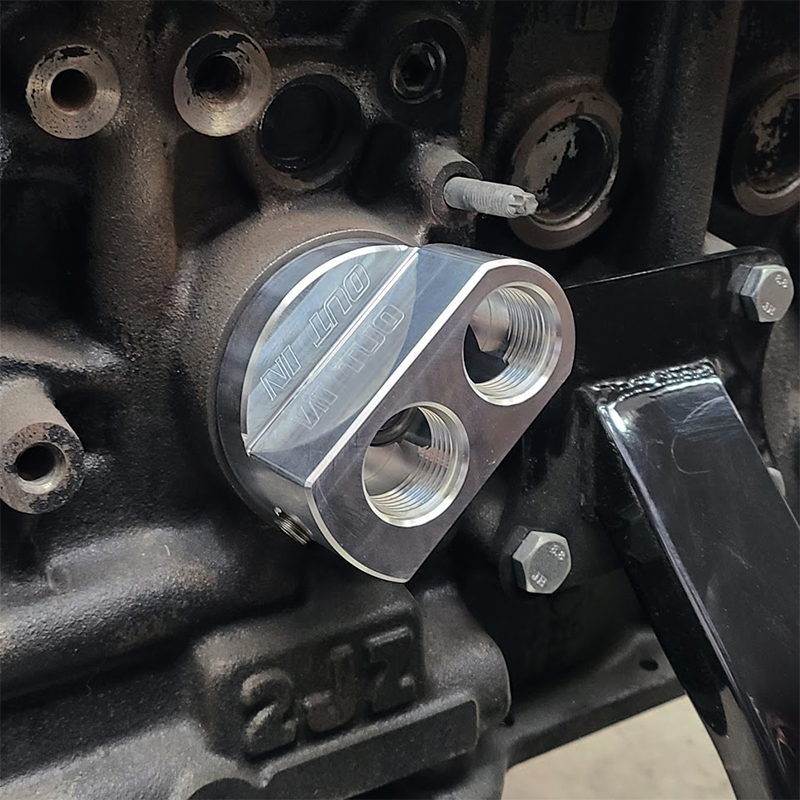

Optionally, you can add our Oil Filter Union to adapt to 2JZ Blocks that have removed the oil cooler. However this is not limited to the 2JZ platform. PHR does not have a list compiled of all applications but this adapter can work with most 3/4-16 threaded blocks.

Designed for maximum flow, outlet ports are threaded for -12ORB fittings and can be adapted to the line size best suited for your setup. Fittings can be provided for additional cost.

Has a 1/8NPT port to run oil feed, oil pressure or temp sensor.
