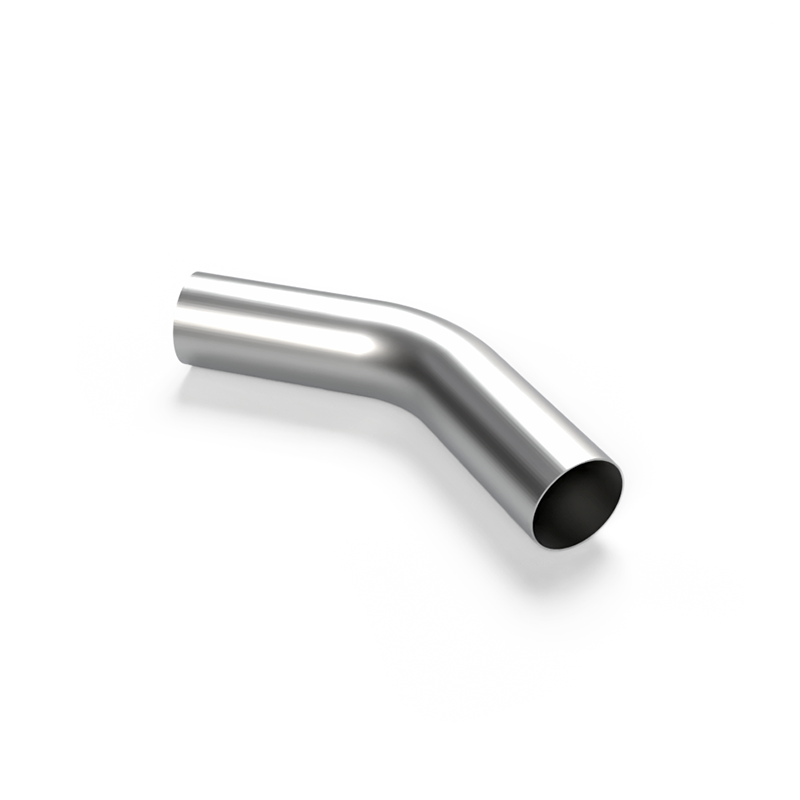

Mandrel Bend, Aluminum, 3.0" OD, 45 Degrees
FB.01.AL.300.12.450.45
Mandrel Bend, Aluminum, 3.0 OD, 12 gauge, 4.5 CLR, 45 Degrees
Specifications
| Material | Aluminum |
| Outer Diameter | 3.0 inches (76 mm) |
| Bend Angle (degrees) | 45 |
| Thickness | .08 in (2.0 mm) (14 gauge) |
| Center Line Radius (inches) | 4.5 |
| CLR to Diameter Ratio | 1.5D |
| Leg Length | 6.0 (152 mm) |
| Bead Roll | No |
