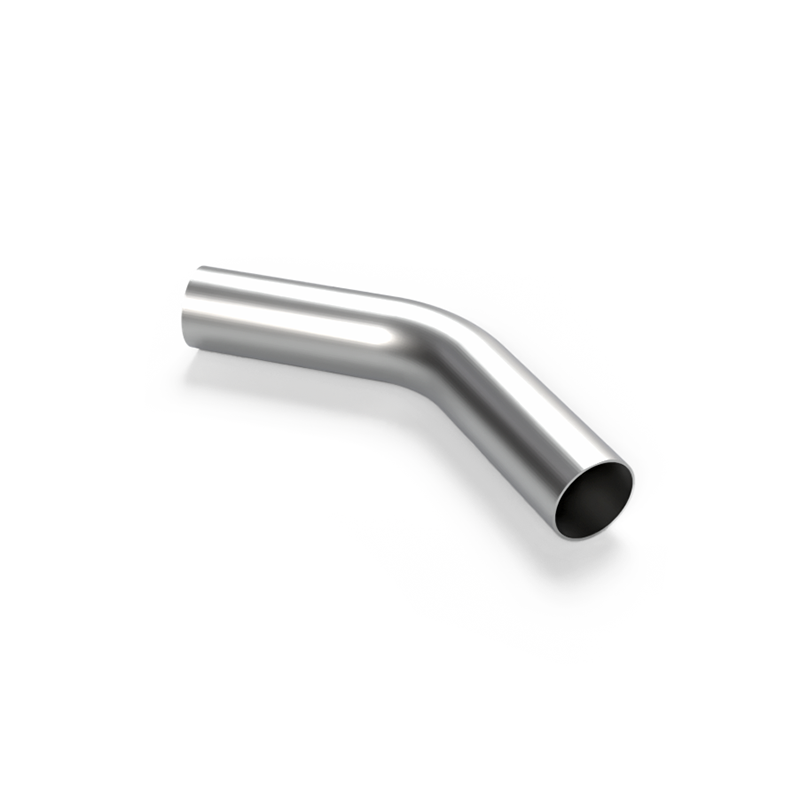

Mandrel Bend, Aluminum, 2.5" OD, 45 Degrees
FB.01.AL.250.12.400.45
2.5" 45 Degree Bend Aluminum Pipe, 2.0mm Thick Tube, 18" Length
Specifications
| Material | Aluminum |
| Outer Diameter | 2.5 inches (63.5 mm) |
| Bend Angle (degrees) | 45 |
| Thickness | .08 in (2.0 mm) (14 gauge) |
| Center Line Radius (inches) | 4.0 |
| CLR to Diameter Ratio | 1.6D |
| Leg Length | 8.5" (216 mm) |
| Bead Roll | No |
