Material
Titanium
Outer Diameter
3.0 inches (76 mm)
Thickness
.047 in (1.2mm)
Bend Angle (degrees)
45
Center Line Radius (inches)
4.5
Leg Length (inches)
4.0,
6.0
Bead Roll
No
|
Material
Titanium
Outer Diameter
3.0 inches (76 mm)
Thickness
.047 in (1.2mm)
Bend Angle (degrees)
90
Center Line Radius (inches)
4.5
Leg Length (inches)
7.0,
9.0
Bead Roll
No
|

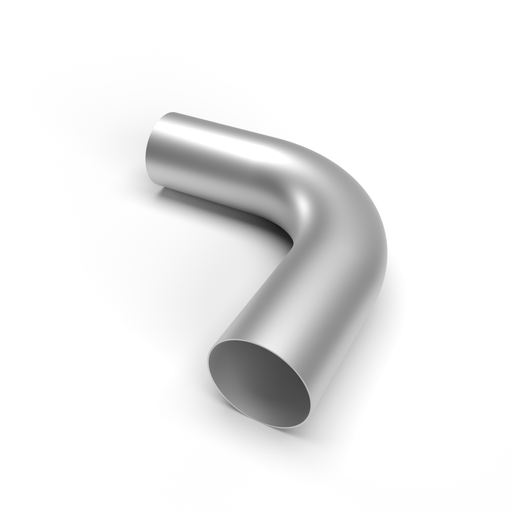

Material
Aluminum
Outer Diameter
3.5 inches (89 mm)
Thickness
.08 in (2.0 mm) (14 gauge)
Bend Angle (degrees)
90
Center Line Radius (inches)
3.5
Leg Length (inches)
6.0
Bead Roll
No
|
|

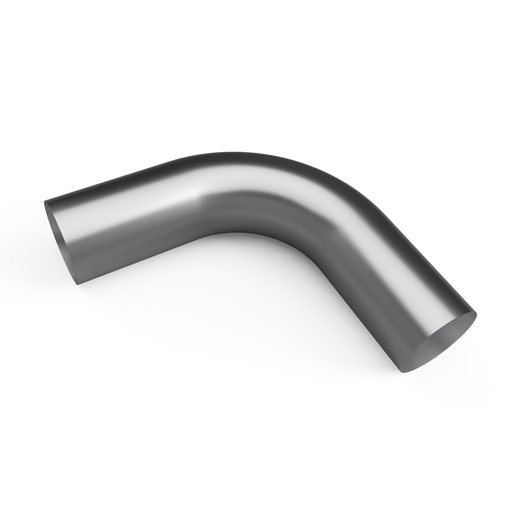

Material
304 Stainless Steel,
Stainless steel
Outer Diameter
2.25 inches (57 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle (degrees)
90
Center Line Radius (inches)
3.375
Leg Length (inches)
2.0
Bead Roll
No
|

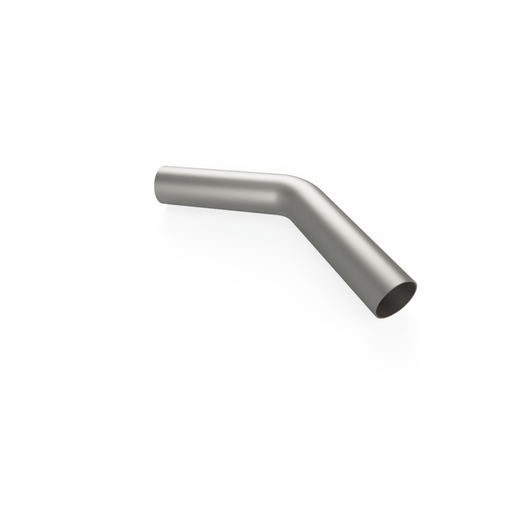

Material
Stainless steel,
304 Stainless Steel
Outer Diameter
1.875 inches (48 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle (degrees)
45
Center Line Radius (inches)
2.0
Bead Roll
No
|
|
|

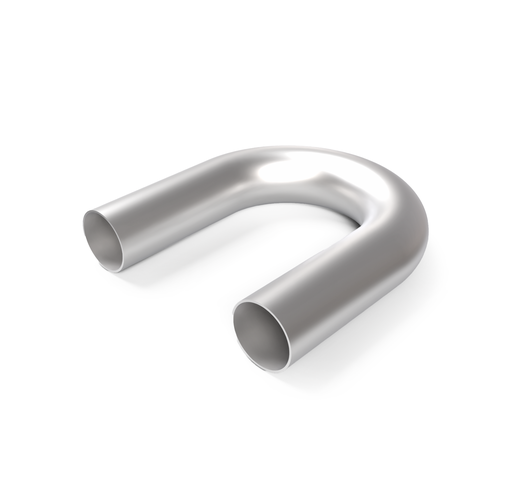

Material
Aluminum
Outer Diameter
2.5 inches (63.5 mm)
Thickness
.08 in (2.0 mm) (14 gauge)
Bend Angle (degrees)
180
Center Line Radius (inches)
4.0
Leg Length (inches)
6.0
Bead Roll
No
|
|
Material
Aluminum
Outer Diameter
3.5 inches (89 mm)
Thickness
.08 in (2.0 mm) (14 gauge)
Bend Angle (degrees)
90
Center Line Radius (inches)
5.0
Leg Length (inches)
6.0
Bead Roll
No
|
|
|
|
|
|
Material
Aluminum
Outer Diameter
2.0 inches (51 mm)
Thickness
.08 in (2.0 mm) (14 gauge)
Bend Angle (degrees)
90
Center Line Radius (inches)
4.0
Bead Roll
Yes
|
|
|
|
|
|
|
|
|
|
|
|
|
|

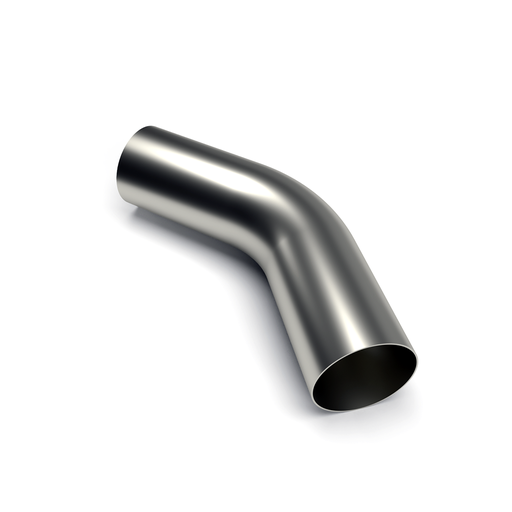

Material
Stainless steel,
304 Stainless Steel
Outer Diameter
4.0 inches (102 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle (degrees)
45
Center Line Radius (inches)
6.0
Leg Length (inches)
6.0
Bead Roll
No
|
|
|
|

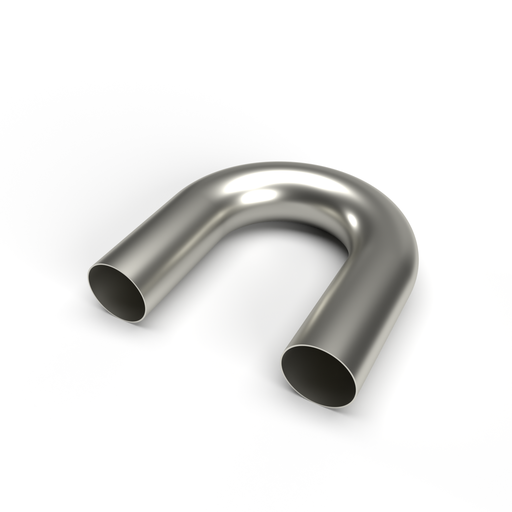

Material
Stainless steel,
304 Stainless Steel
Outer Diameter
3.0 inches (76 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle (degrees)
180
Center Line Radius (inches)
4.5
Leg Length (inches)
6.0
Bead Roll
No
|
|

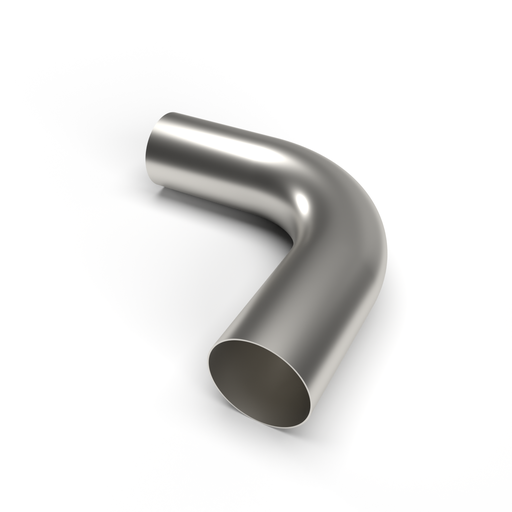

Material
Stainless steel,
304 Stainless Steel
Outer Diameter
4.0 inches (102 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle (degrees)
90
Center Line Radius (inches)
6.0
Leg Length (inches)
6.0
Bead Roll
No
|
|
|
|

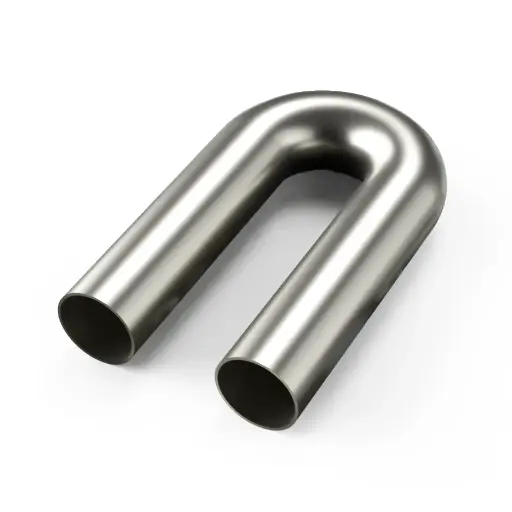

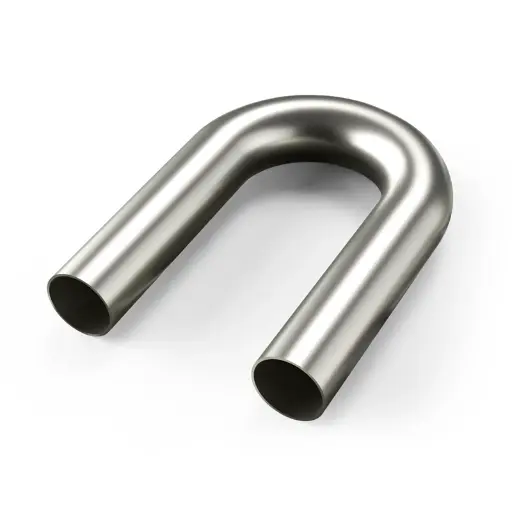

Material
Stainless steel,
304 Stainless Steel
Outer Diameter
1.75 inches (44 mm)
Thickness
.062 in (1.6 mm) (16 gauge)
Bend Angle (degrees)
180
Center Line Radius (inches)
2.625
Leg Length (inches)
6.0
Bead Roll
No
|
|
|
|
|
|
|
|
Material
Titanium
Outer Diameter
4.0 inches (102 mm)
Thickness
.047 in (1.2mm)
Bend Angle (degrees)
45
Center Line Radius (inches)
5.0
Leg Length (inches)
0
Bead Roll
No
|
|
Material
Titanium
Outer Diameter
4.0 inches (102 mm)
Thickness
.047 in (1.2mm)
Bend Angle (degrees)
90
Center Line Radius (inches)
5.0
Leg Length (inches)
0
Bead Roll
No
|
