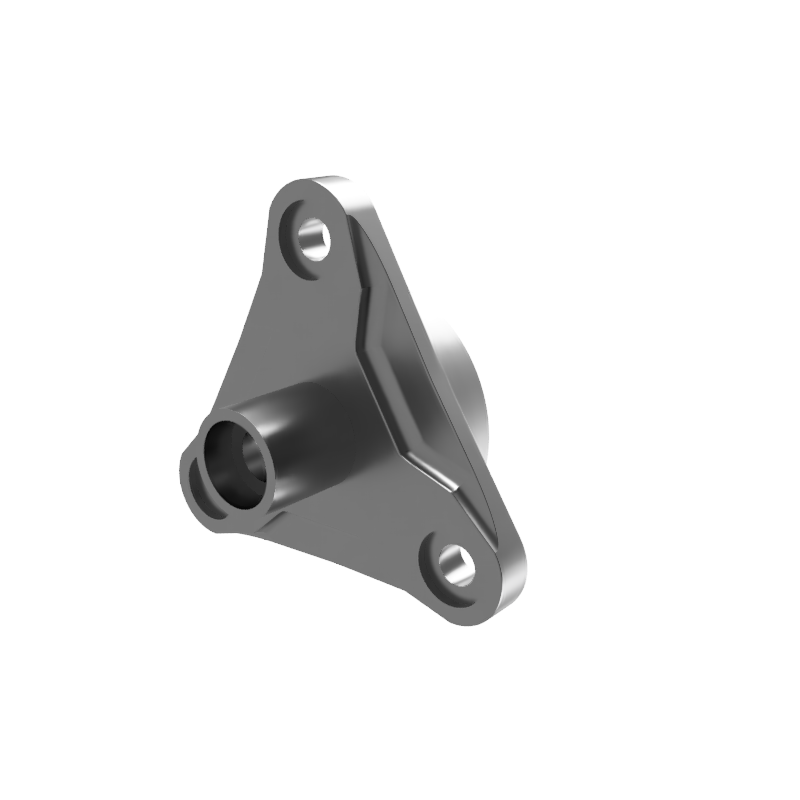

This is the tail flange we use in our 3.5" Driveshafts. You can use it to build your own custom driveshaft. It fit's the larger flange found on twin turbo models. It will not fit the bolt pattern for non turbo vehicles.
Bolt Pattern Circle diameter: 100mm
Pilot Length: 31.5mm
Pilot OD: 32mm
Pilot ID: 16mm (5/8")
Driveshaft Tube Size: 3.5"
Seal: https://www.mcmaster.com/5154T12/
Bolt Size: 12mm
Bolt Head Max OD: 22mm
Specifications
| Product Specs | |
|---|---|
| Material | 4130 Chromoly Steel |
| Variants | |
|---|---|
| Rear end | Stock 200mm rear end, Stock 220mm rear end |
| Matching Tube/Pipe Size | 3.5 inch (89 mm) |
